SMISPVH 21700 (7800547) - Simplicity 21" Walk-Behind Mower, 7hp Handles & Controls (4058_hac-7501536) Parts Diagram

21" Walk-Behind Mower, 7hp

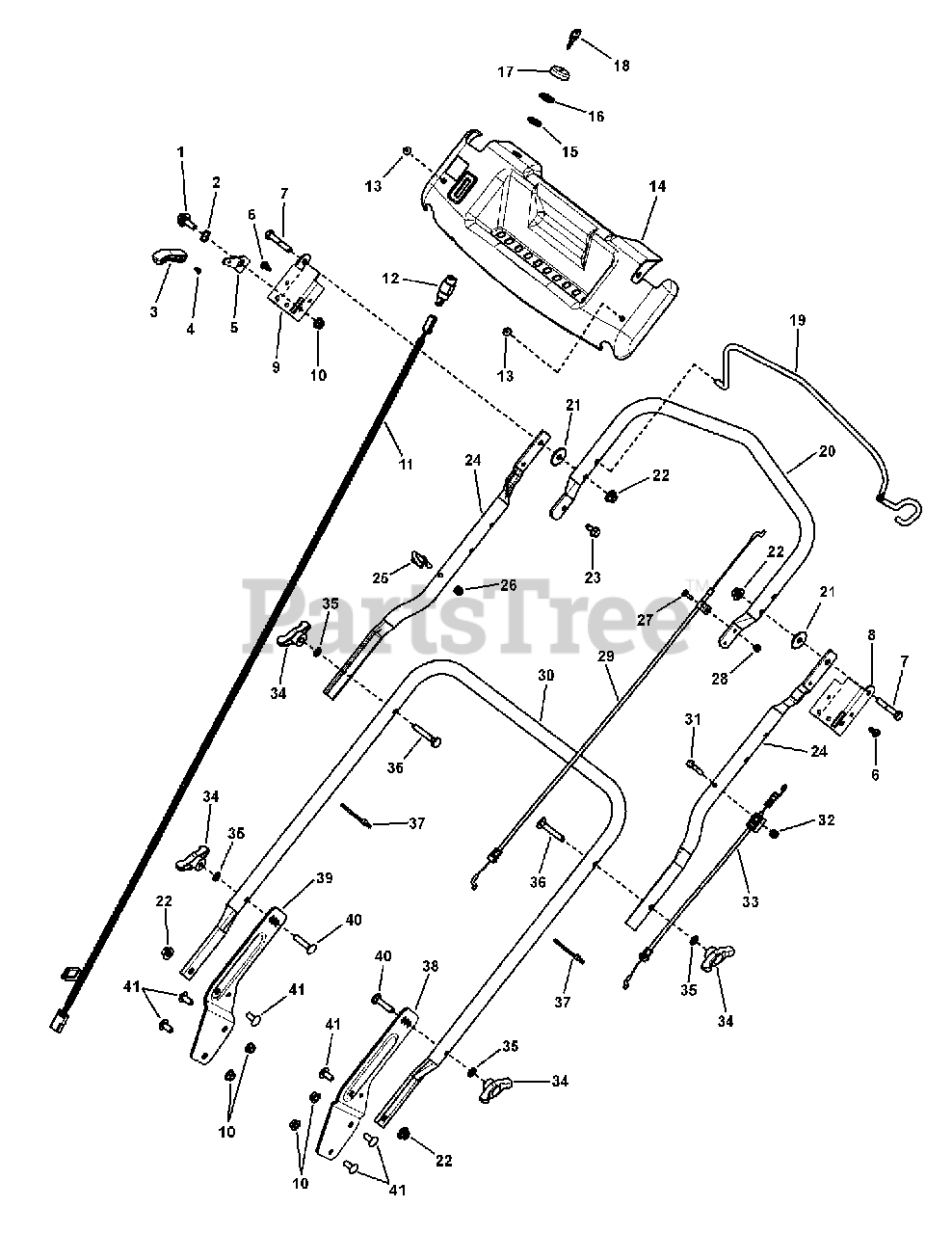

Handles & Controls (4058_hac-7501536) Parts Diagram

  • Title

1

Simplicity 1716654SM

BOLT, 5/16-18 Shoulder

$5.49

$

In Stock, Qty 10

0

2

Simplicity 7026257MA

WASHER, .531 x .781 Wave

$4.49

$

In Stock, Qty 7

0

3

Simplicity 7023655YP

LEVER, Lock Handle

$

$

Not available

4

Simplicity 7071921YP

RIVET, .157" Dia., Plastic Snap

$3.49

$

In Stock, only 4 left!

0

5

Simplicity 7300526AYP

HANDLE, Lock
(Superseded to 7300526BMYP)

$32.99

$

In Stock, only 1 left!

0

6

Simplicity 703961

SCREW, 1/4-20 x .55 Torx Self-Tap

$4.49

$

In Stock, Qty 16

0

7

Simplicity 7090669YP

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

8

Simplicity 730187AYP

BRACKET, Rotation Limit, LH

$

$

Not available

9

Simplicity 7301186AYP

BRACKET, Rotation Limit, RH

$6.99

$

Usually ships in 2-12 days

0

10

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 7101503YP

WIRE HARNESS - Deere - JS35

$36.99

$

In Stock, only 1 left!

0

12

Simplicity 7028765YP

SWITCH, Ignition (spring loaded ON/OFF 2 Prong)
(Superseded to 690646)

$37.99

$

In Stock, only 4 left!

0

13

Simplicity 1960382YP

Pop Rivet, .250 Dia.

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 7103344YP

PANEL, Upper Handle, 21 WBM, Black

$27.99

$

Usually ships in 2-12 days

0

14

Simplicity 7103360YP

PANEL, Upper Handle, 21 WBM Electric Start, Black

$157.99

$

Usually ships in 2-12 days

0

15

Simplicity 7016132SM

SPACER, .875 OD x .654 ID x .104

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 7012685YP

NUT, 5/8-32 Hex Lock
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 704229

BEZEL, Black (Seal & Face Nut)

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 7011138YP

KEY, Ignition (set of 2)

$7.99

$

In Stock, Qty 8

0

19

Simplicity 7100844AYP

BAIL, Pivot Handle

$21.99

$

Usually ships in 2-12 days

0

20

Simplicity 7300434AYP

HANDLE, Pivot

$42.99

$

Usually ships in 2-12 days

0

21

Simplicity 7023649YP

WASHER, 5/16 Nylon

$4.49

$

In Stock, only 2 left!

0

22

Simplicity 704001

NUT, 5/16-18 Large Head Center Lock, Black

$4.49

$

In Stock, Qty 7

0

23

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 7301011AYP

HANDLE, Upper, Pivot, 21"

$85.99

$

Usually ships in 2-12 days

0

25

Simplicity 7028488YP

ROPE GUIDE (1/4-20 thread)

$

$

Not available

26

Simplicity 15X145MA

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 7091085YP

BOLT, #10-24 x 1/2" Flat Head Square Neck

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 15X146MA

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

29

Simplicity 7102648YP

CABLE, OPC, Pivot Handle, 59.37"

$25.99

$

In Stock, only 2 left!

0

30

Simplicity 7300592AYP

HANDLE, Lower

$

$

Not available

31

Simplicity 7091003YP

SCREW, 1/4-20 x 1-3/4, Hex Head Cap, GR 5
(Superseded to 703588)

$4.49

$

In Stock, only 2 left!

0

32

Simplicity 7090372SM

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$5.49

$

In Stock, Qty 12

0

33

Simplicity 7102647YP

CABLE, Drive, Adjustable 49.93"

$32.99

$

In Stock, only 1 left!

0

34

Simplicity 7105085YP

KNOB, 5/16-18 Wing (Black)

$7.49

$

In Stock, Qty 20+

0

35

Simplicity 703587

WASHER, 5/16" Internal Tooth Lock

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 703059

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2

$4.49

$

In Stock, Qty 13

0

37

Simplicity 7024649YP

WIRE TIE,11 Inch Standard Black Nylon

$5.49

$

Usually ships in 2-12 days

0

38

Simplicity 7300573AYP

BRACKET, Lower Handle, LH 21" WBM

$14.99

$

Usually ships in 2-12 days

0

39

Simplicity 7300574AYP

BRACKET, Lower Handle RH 21" WBM

$21.99

$

Usually ships in 2-12 days

0

40

Simplicity 002X97MA

BOLT, 5/16-18 x 1-1/2" Round Head Square Neck
(Superseded to 704210)

$4.99

$

In Stock, only 3 left!

0

41

Simplicity 703185

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR5 YZ

$3.49

$

In Stock, Qty 20+

0
