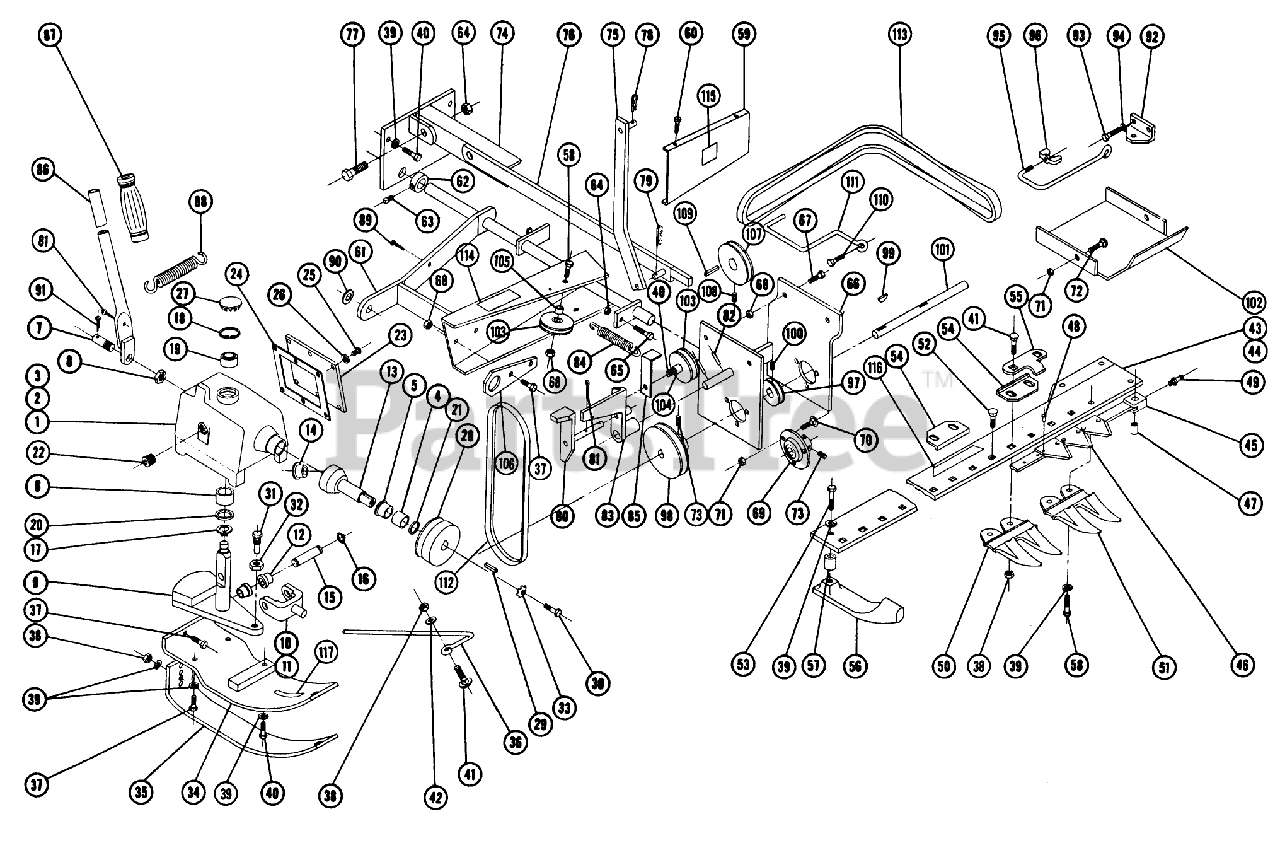

SMS-505 - Toro 50" Sickle Bar Mower Attachment (1965) SIDE MOUNTED SICKLE SMS-505 PARTS LIST Parts Diagram

50" Sickle Bar Mower Attachment

SIDE MOUNTED SICKLE SMS-505 PARTS LIST Parts Diagram

  • Title

1

Toro 5041

Ass-y Housing Complete-Sickle Drive

$

$

Currently unavailable

2

Toro 2701

Ass-y Housings & Bearings

$

$

Currently unavailable

3

Toro 2644

Housing

$

$

Currently unavailable

4

Toro 2694

Bearing-Bronze Sleeve

$

$

Not available

5

Toro 2692

Bearing-Bronze Sleeve

$

$

Not available

6

Toro 2695

Bearing-Bronze Sleeve

$

$

Currently unavailable

7

Toro 2655

Pin

$

$

Currently unavailable

8

Toro 915090-4

Nut, 3/4-16

$

$

Currently unavailable

9

Toro 2683

Ass-y. Shaft-Weldment

$

$

Currently unavailable

10

Toro 2687

Ass-y. Yoke

$

$

Currently unavailable

11

Toro 2690

Yoke

$

$

Currently unavailable

12

Toro 2686

Bearing-Bronze Sleeve

$

$

Not available

13

Toro 2702

Ass-y. Shaft & Bearing

$

$

Currently unavailable

14

Toro 2693

Bearing-Bronze Sleeve

$

$

Currently unavailable

15

Toro 2691

Pin Yoke

$

$

Not available

16

Toro 936121

SNAP RING- 5/8 EXT

$0.99

$

Usually ships in 3-6 days

0

17

Toro 936122

SNAP RING

$

$

Not available

18

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 20+

0

19

Toro 5596

Bearing-Ball

$

$

Not available

20

Toro 1482

Seal 1 1/4 I.D.
(Superseded to 103118)

$21.99

$

In Stock, Qty 10

0

21

Toro 1232

Seal
(Superseded to 100863)

$14.99

$

In Stock, Qty 9

0

22

Toro 943428

Plug 1 x 11 1/2 NPTF

$

$

Currently unavailable

23

Toro 2657

Cover Plate

$

$

Currently unavailable

24

Toro 2656

Gasket

$

$

Not available

26

Toro 920079-4

Lockwasher #10

$

$

Currently unavailable

27

Toro 935135-4

Plug Button

$

$

Currently unavailable

28

Toro 2659

Pulley 4 Dia.

$

$

Not available

29

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.49

$

Usually ships in 3-6 days

0

30

Toro 908033-5

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

31

Toro 2680

Pin Sickle Drive

$

$

Currently unavailable

32

Toro 915089-4

Nut-5/8-18

$

$

Currently unavailable

33

Toro 1336

WASHER

$

$

Not available

34

Toro 2643

Ass y. Shoe-Upper-Weldment

$

$

Currently unavailable

35

Toro 2677

Shoe-Lower

$

$

Currently unavailable

36

Toro 2685

Rod-Grass

$

$

Not available

37

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

38

Toro 915113-4

Nut

$

$

Currently unavailable

39

Toro 920083-4

Lockwasher

$

$

Currently unavailable

40

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

41

Toro 900064-4

Bolt Carriage 3/8-16 x 1

$

$

Currently unavailable

42

Toro 920039-4

Washer

$

$

Currently unavailable

43

Toro 5043

Ass-y. Cutter Bar Complete

$

$

Currently unavailable

44

Toro 2704

Ass-y. Bar Guard

$

$

Currently unavailable

45

Toro 2697

Ass-y. Knife Bar & Sections

$

$

Not available

46

Toro 2236

Section

$

$

Currently unavailable

47

Toro 1498

Bushing

$

$

Currently unavailable

48

Toro 1071

Rivet

$

$

Currently unavailable

49

Toro 1291

ZERK 90DEGREE

$

$

Not available

50

Toro 2230

Twin Guard

$

$

Not available

51

Toro 2684

Guard Cutter Bar

$

$

Not available

52

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

53

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

54

Toro 2231

Wear Plates

$

$

Currently unavailable

55

Toro 2232

Clip, Hold Down

$

$

Not available

56

Toro 2234

Skid

$

$

Not available

57

Toro 2233

Spacer

$

$

Not available

58

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

59

Toro 5598

Cover Belt

$

$

Currently unavailable

60

Toro 926452-4

Screw Hex Self Tap #8-32 x 3/8

$

$

Currently unavailable

61

Toro 3384

Ass-y. Frame

$

$

Currently unavailable

62

Toro 3374

Collar

$

$

Currently unavailable

64

Toro 915115-6

Locknut-1/2-13

$

$

Currently unavailable

66

Toro 3388

Ass-y. Shaft Support

$

$

Not available

68

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

69

Toro 5269

Bearing-Flanged
(Superseded to 99-5379)

$

$

Not available

70

Toro 900037-4

Bolt Hex 5/16-18 x 3/4

$

$

Currently unavailable

71

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

72

Toro 900038-4

Bolt-Car. 5/16-18 x 1

$

$

Currently unavailable

73

Toro 909862-6

Set Screw 5/16-18 x 5/16

$

$

Currently unavailable

74

Toro 3391

Ass-y. Plate - Mounting

$

$

Currently unavailable

75

Toro 3390

Ass-y. Bar - Lift
(Superseded to 701850)

$50.99

$

Usually ships in 3-6 days

0

76

Toro 4739

Ass-y. Bar and Pin - Lower

$

$

Currently unavailable

77

Toro 908059-4

Bolt Hex 1/2-13 x 1 1/2

$

$

Currently unavailable

78

Toro 933503-4

Hairpin

$

$

Currently unavailable

79

Toro 933512-4

Hairpin

$

$

Currently unavailable

80

Toro 3380

Ass-y. Lever

$

$

Currently unavailable

81

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

82

Toro 933188

Roll Pin
(Superseded to 32121-93)

$5.49

$

Usually ships in 3-6 days

0

83

Toro 3381

Pedal

$

$

Currently unavailable

84

Toro 5185

Spring
(Superseded to 6651)

$21.99

$

In Stock, only 4 left!

0

85

Toro 6360

BRACKET GUARD

$

$

Not available

86

Toro 2678

Ass-y. Lever Lift

$

$

Currently unavailable

87

Toro 1000

Grip
(Superseded to 6542)

$14.99

$

Usually ships in 3-6 days

0

88

Toro 1014

Spring

$

$

Not available

89

Toro 932034-4

Cotter Pin 3/16 x 1

$

$

Currently unavailable

91

Toro 932019-4

Cotter Pin 1/8 x 1/3

$

$

Currently unavailable

92

Toro 2700

Bracket-Travel Hook

$

$

Currently unavailable

93

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

94

Toro 920082-4

Lockwasher

$

$

Currently unavailable

95

Toro 3378

Hook - Travel Support

$

$

Currently unavailable

96

Toro 915586-4

3/8 NC Wing Nut

$

$

Currently unavailable

97

Toro 1608

Pulley

$

$

Not available

98

Toro 1969

Pulley

$

$

Currently unavailable

99

Toro 937014

Key
(Superseded to 3257-5)

$5.49

$

In Stock, Qty 20+

0

100

Toro 909848-6

Set Screw 1/4-20 x 1/4

$

$

Currently unavailable

101

Toro 3376

Shaft

$

$

Currently unavailable

102

Toro 3389

Shield - Pulley
(Superseded to 701849)

$50.99

$

Usually ships in 3-6 days

0

103

Toro 1623

Pulley
(Superseded to 92-7102)

$62.99

$

In Stock, only 4 left!

0

105

Toro 1967

SPACER

$6.99

$

Usually ships in 3-6 days

0

106

Toro 1966

Link

$

$

Currently unavailable

107

Toro 5590

Puller-Engine-Drive

$

$

Not available

109

Toro 1349

Key

$

$

Not available

110

Toro 908047-4

Bolt Hex. 7/16-4 x 1 1/4

$

$

Currently unavailable

112

Toro 1552

Belt "A" Sec. 37"

$

$

Not available

113

Toro 1588

V BELT

$

$

Not available

114

Toro 4498

Decal-Caution
(Superseded to 92-7112)

$

$

Not available

115

Toro 4410

Decal
(Superseded to 102832)

$

$

Not available

116

Toro 5604

Decal
(Superseded to 83-3410)

$

$

Not available

117

Toro 3710

Decal

$

$

Currently unavailable
