SNH 1528SE (1696489-00) - Snapper 28" Snow Thrower, 14.5hp Engine Group - 14.5TP, 16.5TP Parts Diagram

28" Snow Thrower, 14.5hp

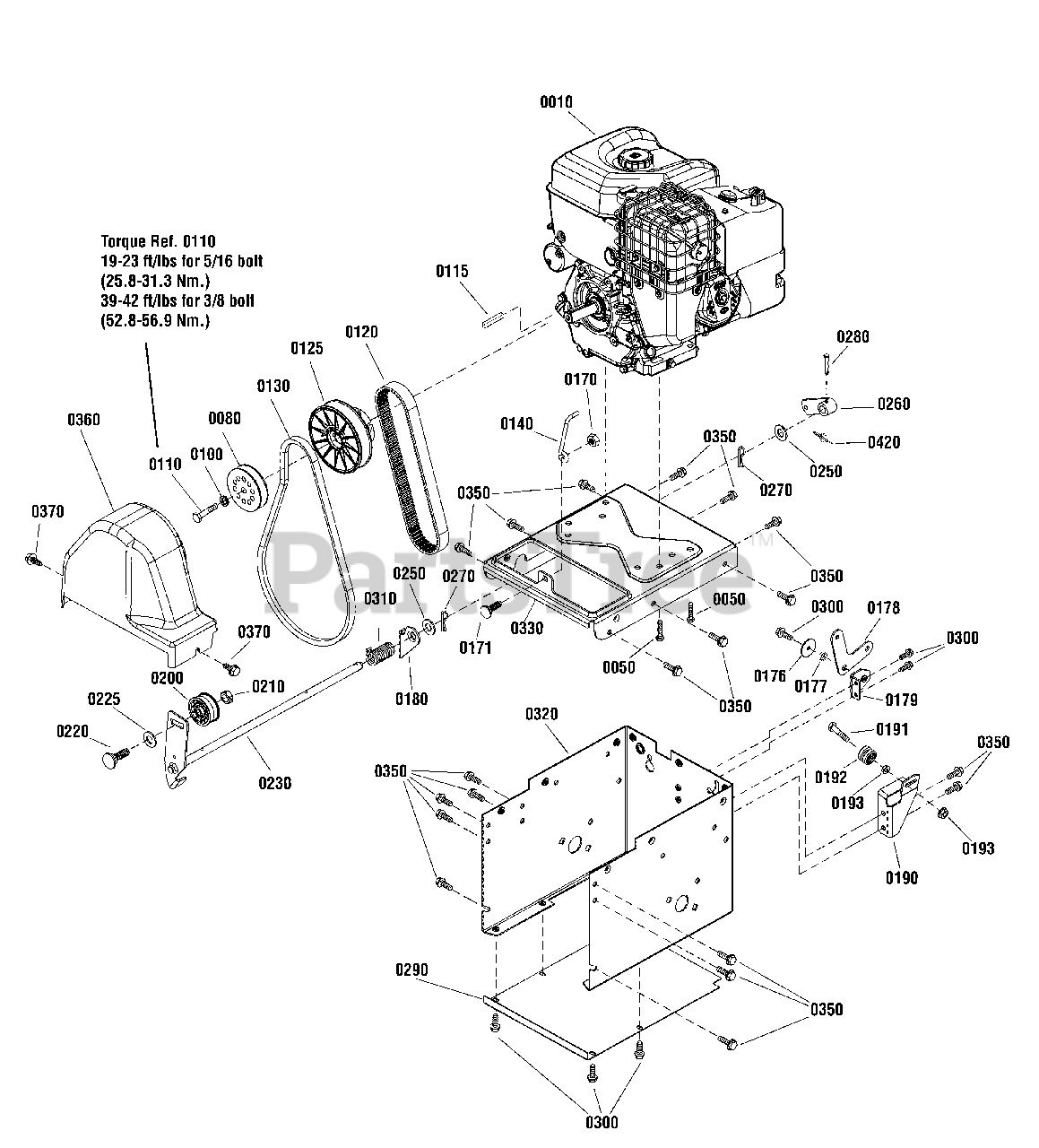

Engine Group - 14.5TP, 16.5TP Parts Diagram

  • Title

0010

Snapper 25D137-0116-F1

* ENGINE, 16.5TP Briggs & Stratton, 420CC

$

$

Not available

0010

Snapper 19J137-0002-F1

* ENGINE, 14.5TP Briggs & Stratton, 306CC

$

$

Not available

0050

Snapper 75246

SCREW, Hex Head, Trilobular, 3/8-16 x 1 1/4
(Superseded to 75246GS)

$4.49

$

Usually ships in 2-12 days

0

0080

Snapper 1737509YP

PULLEY

$

$

Not available

0100

Snapper 703116

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

0110

Snapper 1750393YP

CAPSCREW, Hex Head, 5/16-24 x 1-3/4, GR8
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

0115

Snapper 2157427SM

KEY, Parallel, 3/16 x 3/16 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

0120

Snapper 1754209YP

V-BELT, Multi-Speed

$36.99

$

In Stock, Qty 8

0

0125

Snapper 1733968YP

PULLEY

$81.99

$

Usually ships in 2-12 days

0

0130

Snapper 706174

BELT, Auger

$41.99

$

In Stock, only 2 left!

0

0140

Snapper 1737377YP

STOP, Belt

$12.99

$

In Stock, only 1 left!

0

0170

Snapper 703222

NUT, Hex KEPS, 5/16-18

$6.49

$

In Stock, only 2 left!

0

0171

Snapper 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 19

0

0176

Snapper 703136

WASHER, Flat, 1/4

$4.49

$

In Stock, only 2 left!

0

0177

Snapper 703124

SPACER, 1/4 x 1/8, GR5

$4.49

$

Usually ships in 2-12 days

0

0178

Snapper 1737329YP

BELLCRANK

$31.99

$

Usually ships in 2-12 days

0

0179

Snapper 1737328AYP

BRACKET, Lower

$12.99

$

Usually ships in 2-12 days

0

0180

Snapper 1737297YP

BRACKET, Support, Auger Idler

$9.99

$

Usually ships in 2-12 days

0

0190

Snapper 1737347BMYP

BRACKET, Guide Wheel

$14.99

$

Usually ships in 2-12 days

0

0191

Snapper 703234

CAPSCREW, Hex Head, 1/4-20 x 1-1/2 GR5

$4.49

$

In Stock, only 1 left!

0

0192

Snapper 724621

SPOOL CABLE, Auger Control
(Superseded to 579860MA)

$6.49

$

In Stock, only 2 left!

0

0193

Snapper 703233

NUT, Flange, Serrated, 1/4-20, GR5

$4.49

$

In Stock, Qty 11

0

0200

Snapper 722378

IDLER, Plastic Ball Bearing
(Superseded to 1502120MA)

$23.99

$

In Stock, only 2 left!

0

0210

Snapper 703230

NUT, Center Lock, 3/8-16

$5.49

$

In Stock, Qty 9

0

0220

Snapper 703227

BOLT, Carriage, 3/8-16 x 1-1/4
(Superseded to 1960268SM)

$4.49

$

In Stock, only 3 left!

0

0225

Snapper 1670971SM

WASHER, Thrust

$4.99

$

In Stock, Qty 6

0

0230

Snapper 1737296YP

AUGER IDLER
(Superseded to 1756662YP)

$61.99

$

Usually ships in 2-12 days

0

0250

Snapper 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.99

$

In Stock, Qty 20+

0

0260

Snapper 1733451SM

ARM, Control

$22.99

$

In Stock, only 2 left!

0

0270

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0280

Snapper 703313

PIN, Clevis

$5.49

$

In Stock, only 2 left!

0

0290

Snapper 1737221BMYP

PANEL, Bottom

$46.99

$

Usually ships in 2-12 days

0

0300

Snapper 1927429SM

SCREW, Hex Washer Head, Thread Roll, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 12

0

0310

Snapper 1737350YP

SPRING, Torsion

$8.49

$

In Stock, only 1 left!

0

0320

Snapper 1737106DYP

FRAME, Red

$132.99

$

Usually ships in 2-12 days

0

0330

Snapper 706856

PLATE, Engine, Red

$51.99

$

Usually ships in 2-12 days

0

0350

Snapper 703235

SCREW, Thread Roll, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Snapper 1754153YP

COVER, Belt

$50.99

$

In Stock, only 1 left!

0

0370

Snapper 1751355YP

SCREW, Hex Washer Head, SEMS, Tapping, 1/4-20 x 3/4

$6.99

$

Usually ships in 2-12 days

0

0420

Snapper 7023590SM

COTTER PIN, Self Locking, 1/4

$4.49

$

In Stock, Qty 20+

0
