SNM 1227SE (1696488-00) - Snapper 27" Snow Thrower, 11.5hp Chute & Rotation Group Parts Diagram

27" Snow Thrower, 11.5hp

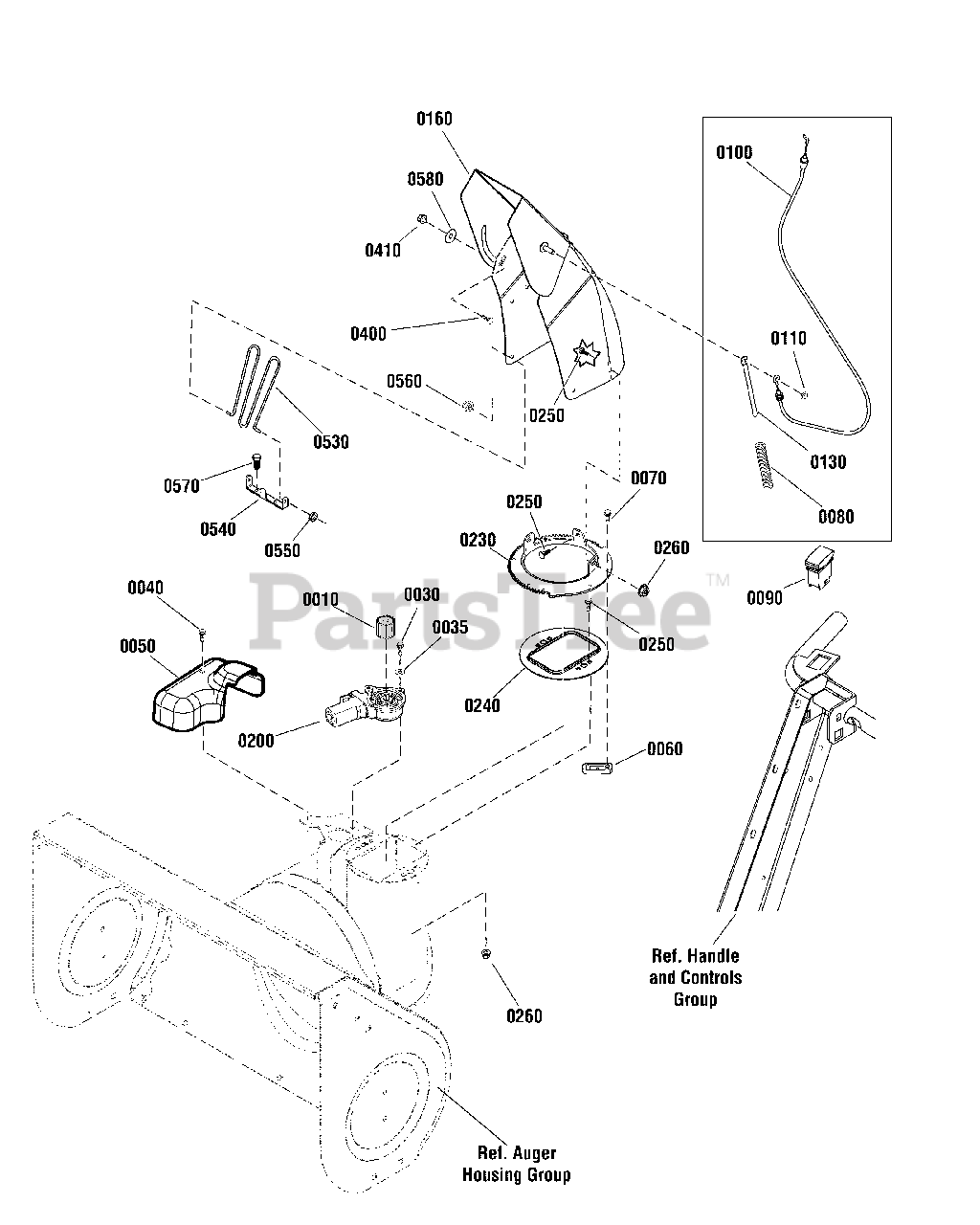

Chute & Rotation Group Parts Diagram

  • Title

0010

Snapper 1728967SM

PINION

Note: each

$18.99

$

In Stock, Qty 5

0

0030

Snapper 1739621YP

SCREW, Torx Button Head, M5 x .8 x 14

Note: each

$4.49

$

In Stock, Qty 10

0

0035

Snapper 7091552SM

WASHER, Flat

Note: each

$3.99

$

In Stock, Qty 11

0

0040

Snapper 1925592SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

Note: each

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 1752877YP

COVER, Electric Chute Rotation

Note: each

$17.99

$

In Stock, only 2 left!

0

0060

Snapper 7011938SM

RETAINER, Spout

Note: each

$4.49

$

Usually ships in 2-12 days

0

0070

Snapper 703062

SCREW, Hex Washer Head, Plastite, 10-14

Note: each

$4.99

$

In Stock, Qty 20+

0

0080

Snapper 703135

SPRING, Compression

Note: each

$4.49

$

Usually ships in 2-12 days

0

0090

Snapper 1737378YP

SWITCH, Chute Rotation
(Superseded to 1687904)

Note: each

$87.99

$

In Stock, only 3 left!

0

0100

Snapper 1750623YP

CABLE, Chute Deflector

Note: each

$49.99

$

In Stock, Qty 11

0

0110

Snapper 1932718SM

NUT, Push, 5/16
(Superseded to 704028)

Note: each

$5.49

$

In Stock, Qty 7

0

0130

Snapper 1734708ASM

ROD, Spring Guide

Note: each

$14.99

$

Usually ships in 2-12 days

0

0160

Snapper 1752840BHYP

CHUTE

Note: each

$199.99

$

Usually ships in 2-12 days

0

0200

Snapper 1739309YP

MOTOR, Chute Rotation
(Superseded to 708703)

Note: each

$91.99

$

In Stock, Qty 9

0

0230

Snapper 1737962BMYP

GEAR

Note: each

$43.99

$

Usually ships in 2-12 days

0

0240

Snapper 1737411YP

ADAPTER, Chute

$20.99

$

Usually ships in 2-12 days

0

0250

Snapper 1931317SM

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

Note: each

$4.49

$

In Stock, only 3 left!

0

0260

Snapper 703061

NUT, KEPS, 1/4-20

Note: each

$3.99

$

In Stock, Qty 11

0

0400

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

Note: each

$3.49

$

In Stock, Qty 20+

0

0410

Snapper 703115

NUT, Flange Nylock, 5/16-18

Note: each

$3.49

$

In Stock, Qty 20+

0

0530

Snapper 1733475SM

GUARD, Chute

Note: each

$22.99

$

Usually ships in 2-12 days

0

0540

Snapper 1752883YP

BRACKET, Chute Guard

Note: each

$16.99

$

Usually ships in 2-12 days

0

0550

Snapper 1738174YP

GROMMET

Note: each

$4.49

$

Usually ships in 2-12 days

0

0560

Snapper 1960140SM

NUT, Push, 3/16

Note: each

$3.49

$

Usually ships in 2-12 days

0

0570

Snapper B4300GS

SCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

Note: each

$3.99

$

In Stock, Qty 11

0

0580

Snapper 2860210SM

WASHER, Nylon

Note: each

$4.99

$

In Stock, only 2 left!

0
