Snow Thrower - BCS America 20", 24", 28" Snow Thrower Attachment (1995 & After) Snow Thrower Frame Version 2 (SN: 359220 & Above) Parts Diagram

Snow Thrower Attachment

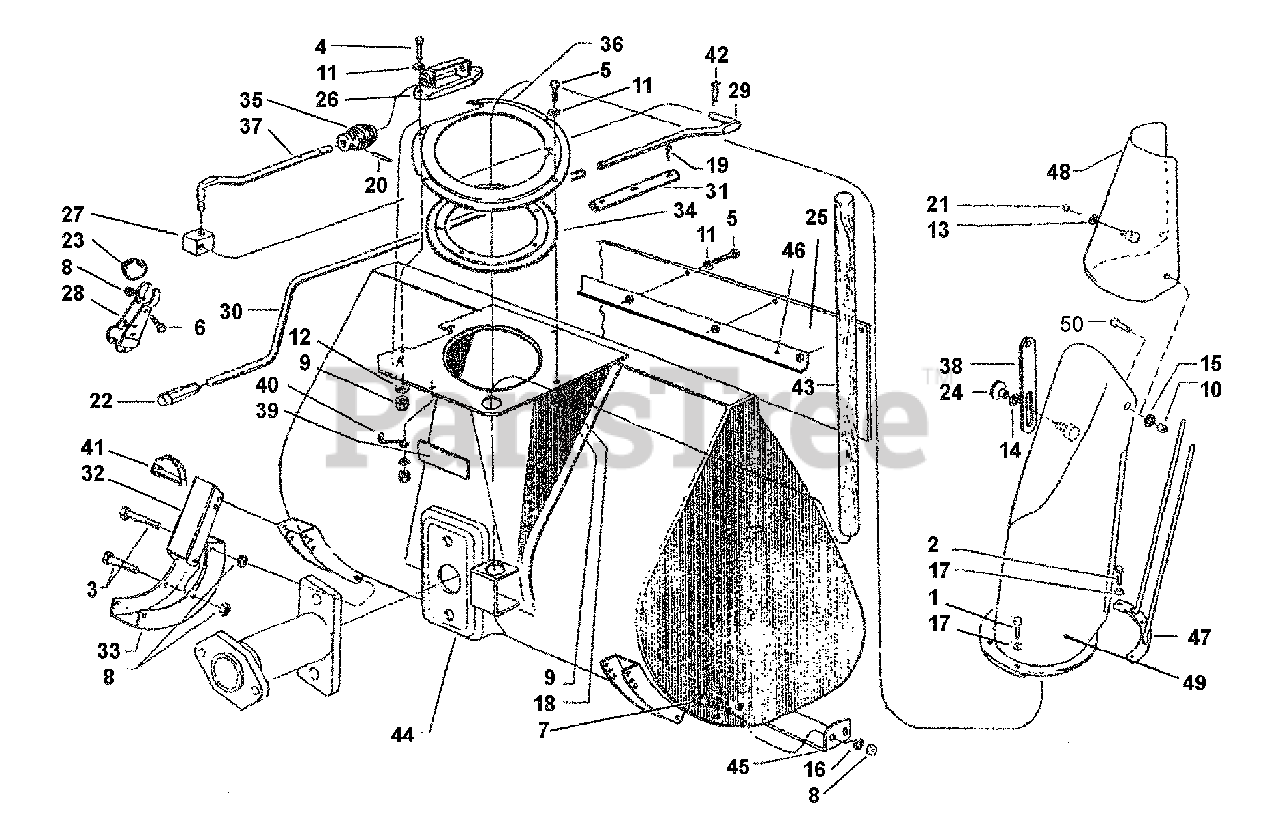

Snow Thrower Frame Version 2 (SN: 359220 & Above) Parts Diagram

  • Title

1

BCS America 311.11090

CAPSCREW, M6X10

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.11091

CAPSCREW, M6X14

$1.49

$

In Stock, Qty 5

0

3

BCS America 311.11101

CAPSCREW, TE M6X55

$1.49

$

In Stock, Qty 6

0

4

BCS America 311.12089

CAPSCREW, M6X25

$1.49

$

In Stock, Qty 5

0

5

BCS America 311.12090

CAPSCREW, M6X16

$0.99

$

In Stock, Qty 10

0

6

BCS America 311.12093

CAPSCREW, M6X20

$0.99

$

In Stock, Qty 10

0

7

BCS America 311.21558

BOLT, M6X16

$1.49

$

In Stock, Qty 5

0

8

BCS America 312.41060

LOCKNUT, M6, STANDARD

$0.99

$

In Stock, Qty 8

0

9

BCS America 312.41061

LOCKNUT, M6, DEFORMED

$0.99

$

Usually ships in 5-8 days

0

10

BCS America 312.41105

LOCKNUT, M10, DEFORMED

$1.99

$

Usually ships in 5-8 days

0

11

BCS America 314.11064

WASHER, FLAT, M6 4X12

$0.99

$

In Stock, only 2 left!

0

12

BCS America 314.11066

WASHER, FLAT, M6 6X18

$0.99

$

Usually ships in 5-8 days

0

13

BCS America 314.11091

WASHER, FLAT, M9X17X1 6

$0.99

$

Usually ships in 5-8 days

0

14

BCS America 314.11104

WASHER, FLAT, M10.5X18

$0.99

$

In Stock, Qty 8

0

15

BCS America 314.11105

WASHER, FLAT, M10.5X21

$1.49

$

In Stock, only 1 left!

0

16

BCS America 314.13064

WASHER, FLAT, M6 4

$0.99

$

Usually ships in 5-8 days

0

17

BCS America 314.21064

WASHER, SUPER, M6

$1.49

$

Usually ships in 5-8 days

0

18

BCS America 314.22064

WASHER, LOCK, M6 4

$0.99

$

Usually ships in 5-8 days

0

19

BCS America 341.10030

PIN COTTER, A 3X20

$1.49

$

In Stock, only 3 left!

0

20

BCS America 342.13022

PIN SPLIT, SW 3X22 SPIROL

$1.49

$

In Stock, only 2 left!

0

21

BCS America 352.11060

SPLIT RING

$0.99

$

In Stock, Qty 10

0

22

BCS America 551.42076

KNOB

$5.99

$

Usually ships in 5-8 days

0

23

BCS America 552.15102

HANDLE GUIDE

$18.99

$

Usually ships in 5-8 days

0

24

BCS America 552.15132

RING INSP DOOR

$32.99

$

Usually ships in 5-8 days

0

25A

BCS America 552.47778

MUDFLAP 28"

$75.99

$

Usually ships in 5-8 days

0

25B

BCS America 552.47832

MUDFLAP 24"

$68.99

$

In Stock, only 1 left!

0

25C

BCS America 552.59529

MUDFLAP 20"

$

$

Currently unavailable

26

BCS America 552.51822

SUPPORT SCREW

$26.99

$

Usually ships in 5-8 days

0

27

BCS America 561.42548

METAL BLOCK

$22.99

$

Usually ships in 5-8 days

0

28

BCS America 561.47779

BRACKET HANDLE GUIDE

$

$

Currently unavailable

29

BCS America 561.47785

CONTROL ROD

$46.99

$

Usually ships in 5-8 days

0

30

BCS America 561.47786

CONTROL ROD

$47.99

$

Usually ships in 5-8 days

0

31

BCS America 561.47789

TUBE

$

$

Not available

32

BCS America 561.51815

STRUT

$29.99

$

Usually ships in 5-8 days

0

33

BCS America 561.51816

SLIDE

$44.99

$

In Stock, only 2 left!

0

34

BCS America 561.51819

GEAR RING

$156.99

$

Usually ships in 5-8 days

0

35

BCS America 561.51820

SCREW

$57.99

$

Usually ships in 5-8 days

0

36

BCS America 561.51821

COLLAR

$72.99

$

In Stock, only 1 left!

0

37

BCS America 561.51825

ROD EXTENSION

$39.99

$

Usually ships in 5-8 days

0

38

BCS America 561.59530

TIE ROD

$25.99

$

Usually ships in 5-8 days

0

39

BCS America 580.47994

DECAL

$

$

Currently unavailable

40

BCS America 580.48035

SUPPORT

$11.99

$

Usually ships in 5-8 days

0

41

BCS America 580.50512

SAFETY PIN

$15.99

$

Usually ships in 5-8 days

0

42

BCS America 580.50533

CLIP

$1.99

$

In Stock, only 2 left!

0

43

BCS America 581.50863

ROD

$21.99

$

Usually ships in 5-8 days

0

44A

BCS America 590.47765

CRANKCASE 28"

$1031.99

$

Usually ships in 5-8 days

0

44B

BCS America 590.47764

CRANKCASE 24"

$845.99

$

Usually ships in 5-8 days

0

44C

BCS America 590.59532

CRANKCASE 20"

$654.99

$

Usually ships in 5-8 days

0

45A

BCS America 590.47774

BLADE 28"

$154.99

$

Usually ships in 5-8 days

0

45B

BCS America 590.47827

BLADE 24"

$111.99

$

Usually ships in 5-8 days

0

45B

BCS America 590.59526

BLADE 20"

$78.56

$

Usually ships in 5-8 days

0

46A

BCS America 590.47776

MUDFLAP STOP 28"

$

$

Currently unavailable

46B

BCS America 590.47830

MUDFLAP STOP 24"

$

$

Currently unavailable

46C

BCS America 590.59528

MUDFLAP STOP 20"

$

$

Currently unavailable

47

BCS America 590.51855

GUARD

$58.99

$

Usually ships in 5-8 days

0

48

BCS America 590.55177

FLAP

$247.99

$

Usually ships in 5-8 days

0

49

BCS America 590.59540

FUNNEL

$390.99

$

Usually ships in 5-8 days

0

50

BCS America 311.21008

CAPSCREW, M10X16

$2.99

$

Usually ships in 5-8 days

0
