Snowblade - Exmark 56" Snowblade for Lazer Z CT Mowers (SN: 510000 - 599999) (2005) Blade Assembly Parts Diagram

56" Snowblade for Lazer Z CT Mowers

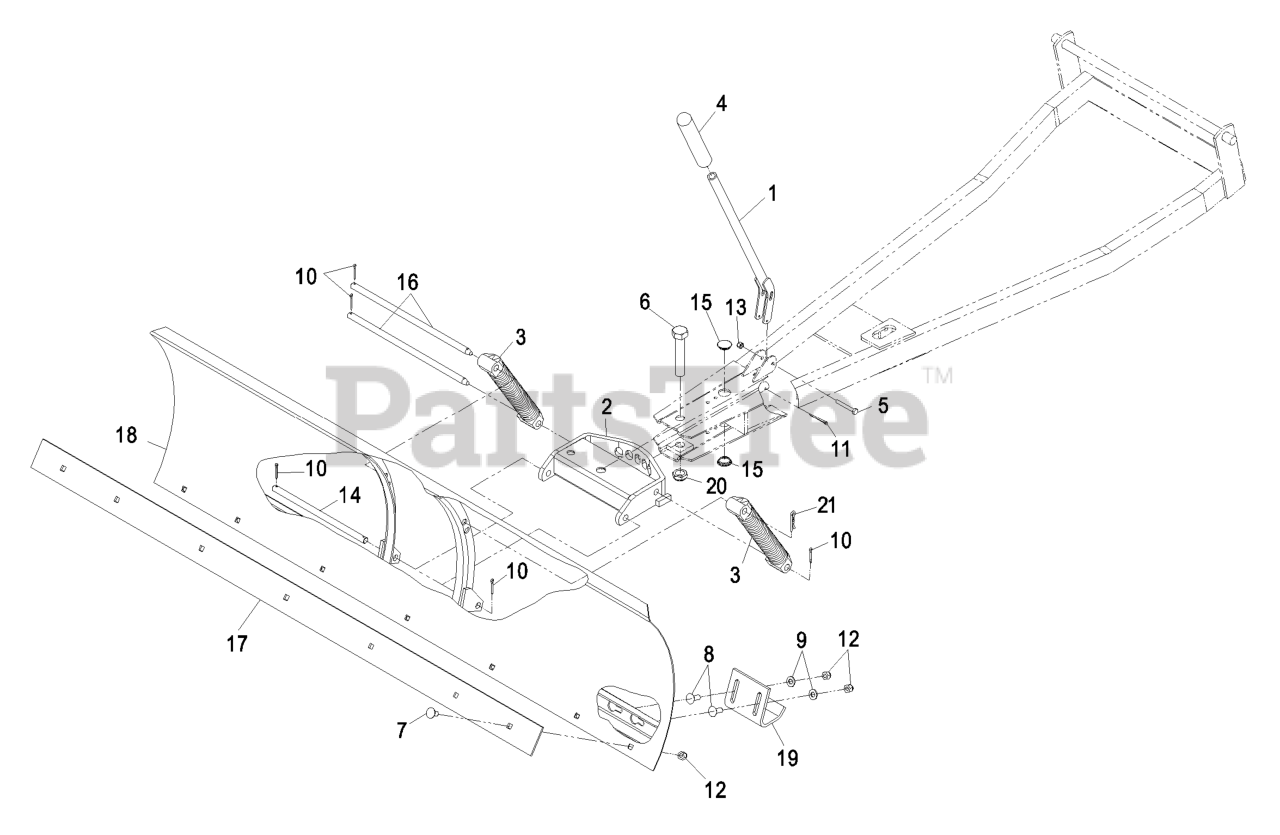

Blade Assembly Parts Diagram

  • Title

1

Exmark 99-7787-03

LEVER-INDEX

$

$

Not available

2

Exmark 104-8053-03

QUADRANT

$

$

Not available

3

Exmark 105-1386-03

LUG / SPRING ASM

$120.99

$

Usually ships in 3-6 days

0

4

Exmark 105-1904

GRIP-HANDLE

$9.99

$

Usually ships in 3-6 days

0

5

Exmark 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 3216-7

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

7

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Exmark 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

11

Exmark 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 9

0

12

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Exmark 4564

ROD-LOWER

$34.99

$

Usually ships in 3-6 days

0

15

Exmark 4944

PLUG

$7.99

$

Usually ships in 3-6 days

0

16

Exmark 5120

ROD-PIVOT, BLADE

$53.99

$

Usually ships in 3-6 days

0

17

Exmark 103618-03

PLATE-BLADE EDGE

$

$

Not available

18

Exmark 116780-03

BLADE ASM-56"

$

$

Not available

19

Exmark 117424-03

SKID

$71.99

$

Usually ships in 3-6 days

0

20

Exmark 9156404

3296-15
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 9

0

21

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, only 1 left!

0
