SO R900 A - Statesman Tiller (2003) (Southern States) Mainframe, Right Side Parts Diagram

Tiller

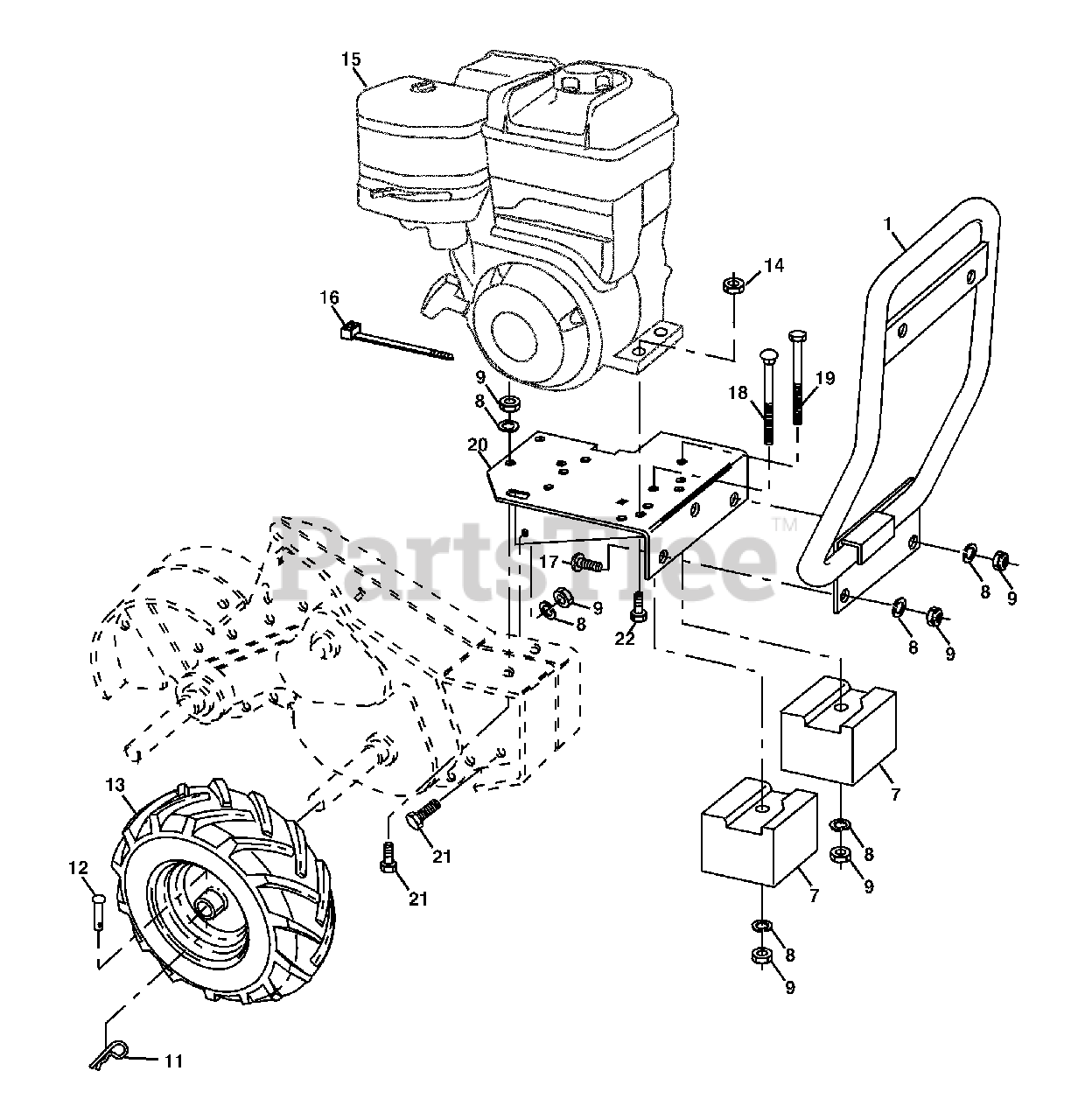

Mainframe, Right Side Parts Diagram

  • Title

1

Electrolux/AYP 175624

Bumper

$46.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 180275

Counter Weight, R.H.
(Superseded to 583099901)

$109.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 10040600

Washer, Lock 3/8
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 73220600

Nut, Hex 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

11

Electrolux/AYP 4921H

Clip, Hairpin
(Superseded to 532004921)

$6.49

$

In Stock, only 1 left!

0

12

Electrolux/AYP 4929H

Rivet, Drilled
(Superseded to 532004929)

$7.49

$

In Stock, only 2 left!

0

13

Electrolux/AYP 5015J

Tire
(Superseded to 532005015)

$145.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 183121X624

Rim
(Superseded to 583702601)

$109.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 795R

Tire Valve

$

$

Not available

14

Electrolux/AYP 73970500

Nut, Lock Hex Flange
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

15

Engine, Briggs Model No. 205412

Note: (Order parts from Engine Manufacturer)

$

$

Not available

16

Electrolux/AYP 104164X

Tie Cable
(Superseded to 532104164)

$6.49

$

In Stock, only 1 left!

0

17

Murray 72140608

Bolt, Hex 5/16-18 x 1-1/2

$

$

Not available

18

Electrolux/AYP 72470636

Bolt 3/8-16 x 4-1/2
(Superseded to 872470636)

$14.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 74760672

Bolt Hex 3/8-16 x 4-1/2
(Superseded to 874760672)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 179823

Bracket, Reinforcement
(Superseded to 583098001)

$56.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 74760616

Bolt, Hex 5/16-18 x 2
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 74760524

Bolt Hex Hd 5/16-18 x 1-1/2

$2.49

$

Usually ships in 3-10 days

0
