SO R900 A - Statesman Tiller (2003) (Southern States) Transmission Parts Diagram

Tiller

Transmission Parts Diagram

  • Title

Electrolux/AYP 181337

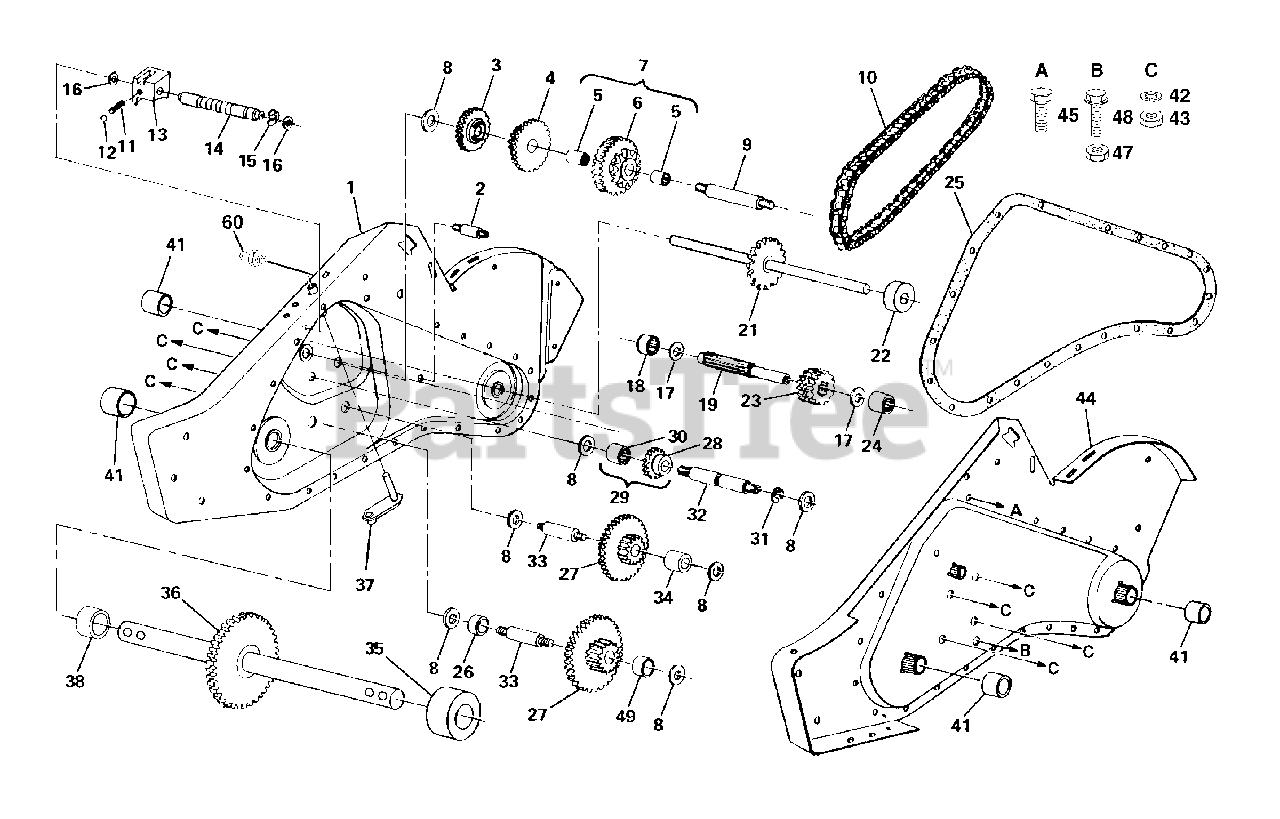

Transmission Assembly
(Superseded to 532183655)

$1082.99

$

Usually ships in 3-10 days

0

1

Electrolux/AYP 181332

Gearcase, R.H. w/Bearing
(Superseded to 583110401)

Note: (Includes Key No. 18)

$227.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 181362

Spacer Gearcase
(Superseded to 583110501)

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 175035

Gear Reverse
(Superseded to 583066801)

$24.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 105345X

Gear, Cluster, Red 1st & 2nd
(Superseded to 532131527)

$

$

Not available

5

Electrolux/AYP 100413K

Bearing, Needle
(Superseded to 585695501)

$34.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 144564

Sprocket and Tine Assembly

$

$

Not available

7

Electrolux/AYP 144563

Sprocket Assembly w/Bearing
(Superseded to 532144564)

Note: (Includes Key No. 5)

$

$

Not available

8

Electrolux/AYP 4358J

Washer
(Superseded to 532004358)

$7.49

$

In Stock, only 3 left!

0

9

Electrolux/AYP 8358J

Shaft, Reduction (1st)
(Superseded to 532008358)

$17.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 8371J

Chain, Roller
(Superseded to 532008371)

$68.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 100371K

Spring, Shift, Fork
(Superseded to 532100371)

$7.49

$

In Stock, only 3 left!

0

12

Electrolux/AYP 7392M

Ball, Steel
(Superseded to 532007392)

$

$

Not available

13

Electrolux/AYP 8353J

Fork, Shift
(Superseded to 532008353)

$34.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 175372

Shaft, Reduction
(Superseded to 583068601)

$7.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 12000039

Ring, Klip
(Superseded to 812000039)

$6.49

$

In Stock, only 4 left!

0

16

Electrolux/AYP 154467

Washer, Seal
(Superseded to 532154467)

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 1370H

Washer, Thrust 5/8 ID
(Superseded to 532001370)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 4895H

Bearing, Needle
(Superseded to 532004895)

$17.99

$

In Stock, only 2 left!

0

19

Electrolux/AYP 150695

Shaft Input
(Superseded to 532150695)

$66.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 105378X

Tine Shaft Assembly
(Superseded to 532105378)

$

$

Not available

22

Electrolux/AYP 106181X

Spacer 1,008 x 1-3/4 x 0,645
(Superseded to 532106181)

$17.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 175031

Pinion, Input
(Superseded to 532175031)

$66.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 5020J

Bearing, Needle
(Superseded to 532005020)

$20.99

$

In Stock, only 4 left!

0

25

Electrolux/AYP 164396

Gasket, Gearcase

$34.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 106389X

Spacer 0,765 I.D. x 1,12 x 5/8
(Superseded to 532106389)

$13.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 100433M

Gear Cluster
(Superseded to 532100433)

$62.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 8357J

Gear, Reverse Idler
(Superseded to 532008357)

$36.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 144562

Gear, Assembly, Reverse Idler

Note: (Includes Key Nos. 28 and 30)

$

$

Not available

30

Electrolux/AYP 6803J

Bearing, Needle
(Superseded to 532006803)

$11.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 12000040

Ring, Klip
(Superseded to 812000040)

$6.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 8356J

Shaft, Reverse Idler
(Superseded to 532008356)

$

$

Not available

33

Electrolux/AYP 100016K

Shaft, Reduction (2nd)
(Superseded to 532100016)

$51.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 106392X

Spacer 0,765 I.D. x 1-1/8 x 1-3/8
(Superseded to 532106392)

$

$

Not available

35

Electrolux/AYP 106394X

Spacer LH
(Superseded to 532106394)

$31.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 100436

Shaft Assembly

$

$

Not available

37

Electrolux/AYP 142145

Bracket, Asm.
(Superseded to 532142145)

$

$

Not available

38

Electrolux/AYP 106393X

Spacer RH
(Superseded to 532106393)

$34.99

$

In Stock, only 1 left!

0

41

Electrolux/AYP 155236

Seal, Asm OIl
(Superseded to 532155236)

$7.49

$

In Stock, Qty 14

0

42

Electrolux/AYP 10040700

Push Nut 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 73610700

Nut, Hex 7/16-20
(Superseded to 873610700)

$7.49

$

In Stock, only 4 left!

0

44

Electrolux/AYP 181323

Gearcase, L.H. w/Bearing
(Superseded to 583110301)

Note: (Includes Key No. 24)

$169.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 17720510

Thread Cutting Screw 5/16-18 x 5/8
(Superseded to 583608801)

$

$

Not available

47

Electrolux/AYP 73220500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 100107K

Screw 5/16-18 x 4
(Superseded to 532100107)

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 106391X

Spacer 0.765 ID x 1.12 x 3/4
(Superseded to 532106391)

$15.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 6855M

Fitting, Grease
(Superseded to 532183226)

$7.49

$

In Stock, Qty 11

0

Electrolux/AYP 6066J

Grease, Plastilube #1
(Superseded to 585517301)

$

$

Not available
