SOFF CUT 4200 - Husqvarna Early Entry Saw (2016-12) HYDRAULIC PUMP - MOTOR Parts Diagram

Early Entry Saw

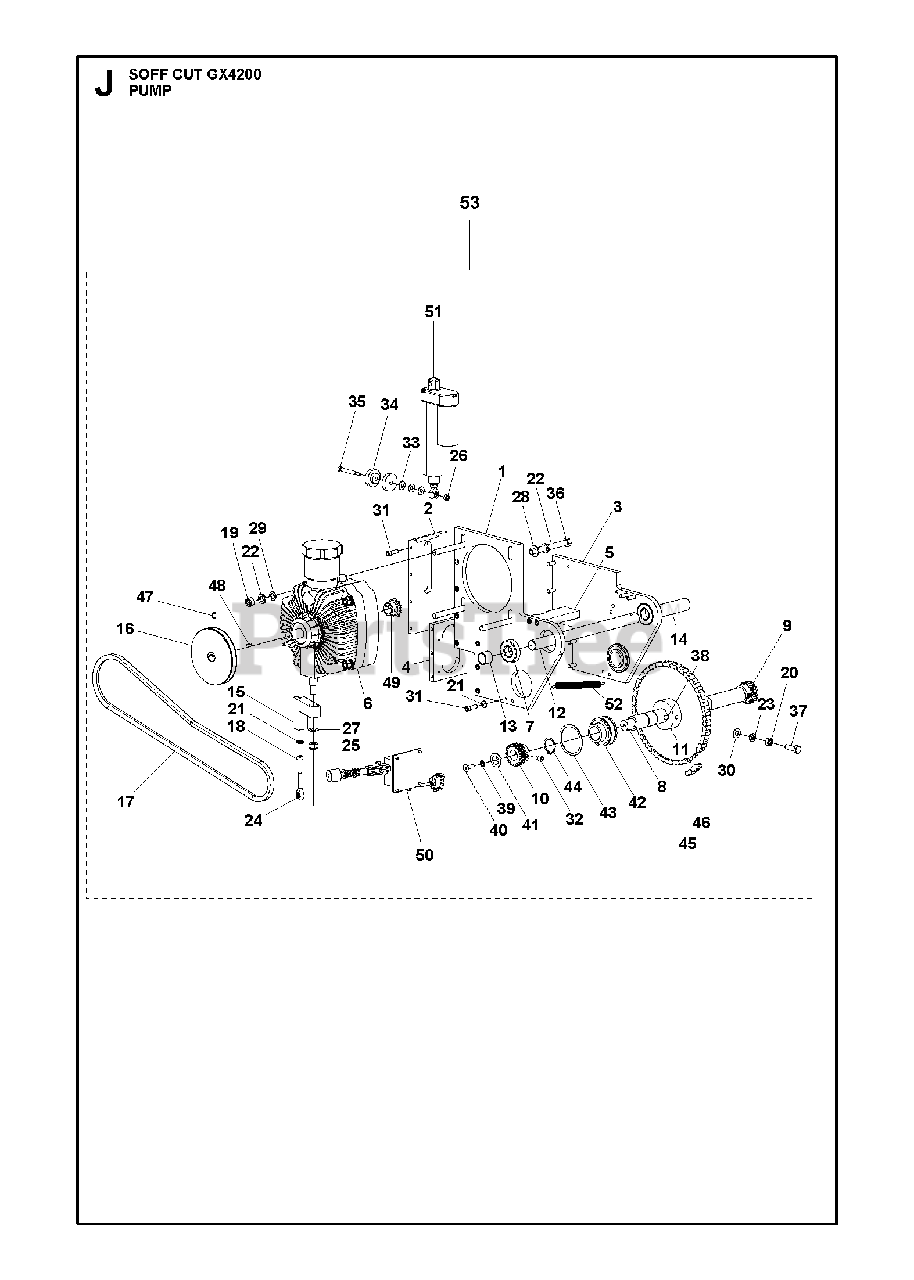

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title

1

Husqvarna Construction 505 75 65-01

PUMP SUPPORT PLATE RIGHT

$435.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 505 75 66-01

BLOCK

$141.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 505 60 76-01

PUMP SUPPORT PLATE LEFT

$286.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 505 70 61-01

PLATE

$82.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 505 75 68-01

PUMP BRACE TOP

$51.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 582 38 28-01

TRANSMISSION

$1363.83

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 505 73 61-01

FRONT AXLE ASSY

$22.99

$

In Stock, only 3 left!

0

8

Husqvarna Construction 505 76 47-01

DRIVE SHAFT

$493.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 505 77 71-01

GEAR WHEEL

$143.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 505 77 70-01

GEAR

$90.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 505 73 94-01

SPROCKET

$217.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 505 76 57-01

SHAFT

$110.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 505 76 58-01

SPACER

$39.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 505 76 56-01

PIPE

$22.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 505 76 46-01

BRACKET

$101.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 587 93 53-01

PULLEY

$69.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 505 77 75-01

PUMP

$43.99

$

In Stock, only 2 left!

0

18

Husqvarna Construction 505 73 29-01

NUT

$1.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539 99 01-30

NUT

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 505 73 24-01

NUT

$1.99

$

Usually ships in 3-10 days

0

21

Husqvarna Construction 505 63 28-01

WASHER

$3.49

$

In Stock, only 2 left!

0

22

Husqvarna Construction 505 73 10-01

WASHER

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 505 63 30-01

WASHER

$1.99

$

In Stock, Qty 5

0

24

Husqvarna Construction 505 74 34-01

ROD END

$46.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539 97 69-79

NUT
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna Construction 505 63 04-01

NUT

$1.99

$

In Stock, Qty 5

0

27

Husqvarna Construction 505 63 42-01

WASHER

$8.99

$

In Stock, only 2 left!

0

28

Husqvarna 539 99 05-17

WASHER

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 505 72 40-01

WASHER

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 539 99 01-88

WASHER
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna Construction 505 62 78-01

BOLT

$1.99

$

Usually ships in 3-10 days

0

32

Husqvarna Construction 505 77 27-01

SCREW

$8.99

$

Usually ships in 3-10 days

0

33

Husqvarna Construction 505 63 44-01

WASHER

$3.49

$

In Stock, only 3 left!

0

34

Husqvarna Construction 505 75 67-01

ACTUATOR

$67.99

$

Usually ships in 3-10 days

0

35

Husqvarna Construction 505 72 60-01

BOLT

$6.99

$

Usually ships in 3-10 days

0

36

Husqvarna Construction 539 30 08-70

NLA HCS 3/8-16 X 3-1/2 GR 5 ZN

$1.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539 99 02-09

SCREW

$1.99

$

Usually ships in 3-10 days

0

38

Husqvarna Construction 510 31 81-01

KEY

$6.99

$

Usually ships in 3-10 days

0

39

Husqvarna Construction 505 68 62-01

WASHER

$1.99

$

Usually ships in 3-10 days

0

40

Husqvarna Construction 505 62 86-01

SCREW

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna Construction 505 76 48-01

WASHER

$39.99

$

Usually ships in 3-10 days

0

42

Husqvarna Construction 505 68 94-01

SHAFT

$176.99

$

Usually ships in 3-10 days

0

43

Husqvarna Construction 505 69 02-01

SNAP RING

$36.99

$

Usually ships in 3-10 days

0

44

Husqvarna Construction 505 73 34-01

SNAP RING

$1.99

$

In Stock, only 4 left!

0

45

Husqvarna Construction 505 86 97-01

CHAIN

$110.99

$

Usually ships in 3-10 days

0

46

Husqvarna Construction 505 73 96-01

LINK

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna Construction 505 73 38-01

SET SCREW 1/4-20-3/8 KNURLED P

$

$

Not available

48

Husqvarna Construction 539 30 07-49

KEY

$1.99

$

Usually ships in 3-10 days

0

49

Husqvarna Construction 587 65 99-01

SPROCKET

$

$

Not available

50

Husqvarna Construction 505 84 51-01

SPEED CONTROL SYSTEM

$912.99

$

Usually ships in 3-10 days

0

51

Husqvarna Construction 505 84 71-01

ACTUATOR

$1058.99

$

Usually ships in 3-10 days

0

52

Husqvarna Construction 505 77 52-01

SPRING

$46.99

$

Usually ships in 3-10 days

0

53

Husqvarna Construction 510 27 19-02

ASSEMBLY

$4504.50

$

Usually ships in 3-10 days

0
