Solar - Weed Eater Solar Mower ASSEMBLY Parts Diagram

Solar Mower

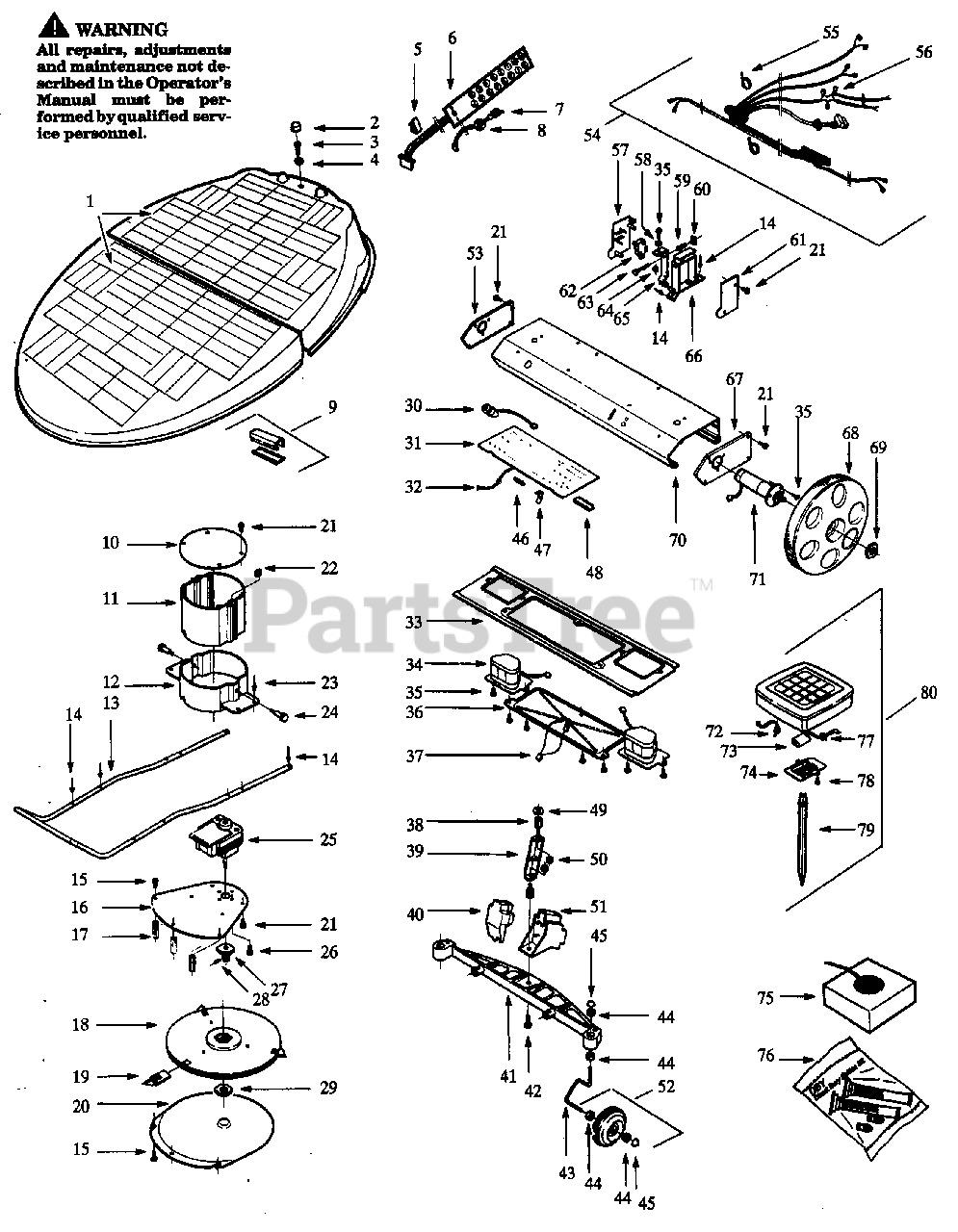

ASSEMBLY Parts Diagram

  • Title

1

Poulan 535043401

Solar Cell Kit

$

$

Not available

2

Poulan 535037601

Cover-Shock Screw

$

$

Not available

3

Poulan 724133101

Screw-Shock Top

$

$

Not available

4

Poulan 535037501

Washer-Top Shock

$

$

Not available

6

Poulan 535033501

Keyboard

$

$

Not available

7

Poulan 535034401

On/Off Switch

$

$

Not available

8

Poulan 535036801

Switch Nut

$

$

Not available

9

Poulan 535031301

Wire Connection Protector

$

$

Not available

10

Poulan 535035201

Top Motor Housing

$

$

Not available

11

Poulan 535034701

Blade Motor Housing

$

$

Not available

12

Poulan 535035101

Blade Motor Mount

$

$

Not available

13

Poulan 535030901

Frame

$

$

Not available

14

Poulan 722783309

Pop Rivet

$9.49

$

Usually ships in 3-10 days

0

15

Poulan 535033901

Screw

$

$

Not available

16

Poulan 535034801

Bottom Motor Plate

$

$

Not available

17

Poulan 535037201

Spacer Motor Plate

$

$

Not available

18

Poulan 535035801

Cutting Disc Assembly
(Superseded to 535098602)

$

$

Not available

19

Poulan 535043201

Blade Kit (3 blades)

$

$

Not available

20

Poulan 535037301

Skid Plate

$

$

Not available

21

Poulan 535036101

Screw

$

$

Not available

22

Poulan 535042001

Square Nut

$

$

Not available

23

Poulan 722783009

Pop Rivet

$

$

Not available

24

Poulan 535035601

Adjusting Screw

$

$

Not available

25

Poulan 535034901

Cutting Motor

$

$

Not available

26

Poulan 535035001

Motor Mount Screw

$

$

Not available

27

Poulan 535035701

Hub

$

$

Not available

28

Poulan 728828301

Set Screw

$

$

Not available

29

Poulan 535034301

Hub Nut

$

$

Not available

30

Poulan 535034501

Alarm

$

$

Not available

31

Poulan 535034601

Circuit Board

$

$

Not available

32

Poulan 535039701

Ground Wire

$

$

Not available

33

Poulan 535032201

Cover-Electric Housing

$

$

Not available

34

Poulan 535043501

Battery Pack

$

$

Not available

35

Poulan 535033301

Screw

$

$

Not available

36

Poulan 535043301

Cover-PC Board

$

$

Not available

37

Poulan 535038801

Moisture Sensor Wire

$

$

Not available

38

Poulan 501530501

Vibration Mount

$12.99

$

In Stock, Qty 17

0

39

Poulan 535031701

Bracket

$

$

Not available

40

Poulan 535042201

Sensor Cover

$

$

Not available

41

Poulan 535031001

Front Axle

$

$

Not available

42

Poulan 724132701

Shock Screw

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 535031501

Wheel Spindle

$

$

Not available

44

Poulan 738229455

Bearing

$

$

Not available

45

Poulan 535031601

Cover-Bearing

$

$

Not available

46

Poulan 535043601

Fuse

$

$

Not available

47

Poulan 535031101

Spring Clip

$

$

Not available

48

Poulan 535031201

Microcopressor

$

$

Not available

49

Poulan 535045001

Washer

$

$

Not available

50

Poulan 732211401

Locknut

$6.49

$

In Stock, Qty 8

0

51

Poulan 535032001

Sensor

$

$

Not available

52

Poulan 535031401

Front Wheel Assembly

$

$

Not available

53

Poulan 535033801

Left Gable

$

$

Not available

54

Poulan 535038301

Wire Harness

$

$

Not available

55

Poulan 534134704

Tie Strap

$

$

Not available

56

Poulan 535038601

Wire Connector

$

$

Not available

57

Poulan 535032801

Right Cover

$

$

Not available

58

Poulan 734484801

Washer

$4.99

$

Usually ships in 3-10 days

0

59

Poulan 535033001

Spring-Microswitch

$

$

Not available

60

Poulan 535033101

Adjusting Nut

$

$

Not available

61

Poulan 535032701

Cover Left

$

$

Not available

62

Poulan 535032501

Microswitch
(Superseded to 535469201)

$20.99

$

Usually ships in 3-10 days

0

63

Poulan 535033701

Screw

$

$

Not available

64

Poulan 732251201

Locknut

$3.99

$

Usually ships in 3-10 days

0

65

Poulan 535032901

Bracket Microswitch

$

$

Not available

66

Poulan 535032401

Bracket Microswitch

$

$

Not available

67

Poulan 535033802

Right Gable

$

$

Not available

68

Poulan 535034101

Drive Wheel

$

$

Not available

69

Poulan 535034301

Hub Nut

$

$

Not available

70

Poulan 535032101

Electric Housing

$

$

Not available

71

Poulan 535034001

Drive Motor

$

$

Not available

72

Poulan 535041801

Generator Switch

$

$

Not available

73

Poulan 535040601

Generator Battery

$

$

Not available

74

Poulan 535040701

Generator Battery Cover

$

$

Not available

75

Poulan 535041601

Boundary Wire

$

$

Not available

76

Poulan 535044301

Splice Kit

$

$

Not available

77

Poulan 501430001

Grommet

$6.49

$

Usually ships in 3-10 days

0

78

Poulan 729522471

Screw

$

$

Not available

79

Poulan 535040501

Generator Stake

$

$

Not available

80

Poulan 535037401

Generator Assembly

$

$

Not available

Poulan 101877627

Operator Manual

$

$

Not available
