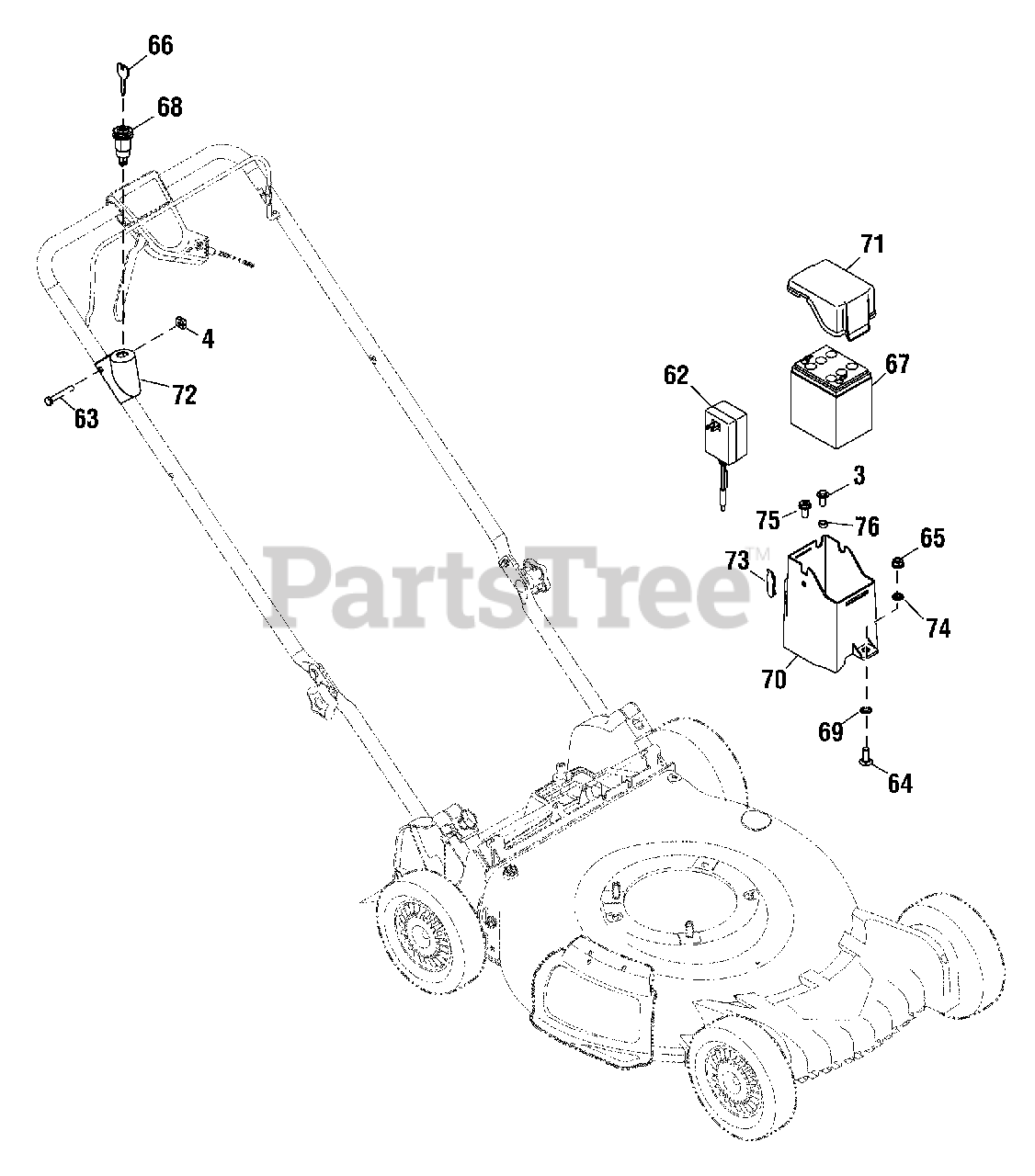

SP 100 (7800926-00) - Snapper 21" Walk-Behind Mower, Variable Speed, 775 Series Briggs Electric Group Parts Diagram

21" Walk-Behind Mower, Variable Speed, 775 Series Briggs

Electric Group Parts Diagram

  • Title

3

Snapper 703482

SCREW, 5/16-14 x 3/4

$7.49

$

Usually ships in 2-12 days

0

4

Snapper 703486

NUT, Square, 1/4-20

$10.99

$

Usually ships in 2-12 days

0

62

Snapper 703434

CHARGER, Battery
(Superseded to 704384)

$68.99

$

Usually ships in 2-12 days

0

63

Snapper 703477

SCREW, 1/4-20 x 1.75

$6.99

$

Usually ships in 2-12 days

0

64

Snapper 703478

BOLT, Carriage, 5/16-18 x 1

$

$

Currently unavailable

65

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.99

$

In Stock, Qty 20+

0

66

Snapper 703436

KEY

$17.99

$

Usually ships in 2-12 days

0

67

Snapper 703435

BATTERY

$213.99

$

Usually ships in 2-12 days

0

68

Snapper 703494

SWITCH

$60.99

$

Usually ships in 2-12 days

0

69

Snapper 703495

NUT, Speed

$10.99

$

Usually ships in 2-12 days

0

70

Snapper 703496

HOUSING, Battery

$27.99

$

Usually ships in 2-12 days

0

71

Snapper 703497

HOUSING, Top, Battery

$14.99

$

Usually ships in 2-12 days

0

72

Snapper 703498

HOUSING, Electric Start

$13.99

$

Usually ships in 2-12 days

0

73

Snapper 703518

SEAL, Lid

$8.99

$

Usually ships in 2-12 days

0

74

Snapper 703519

WASHER, Bell, .340 x .872 x .080

$7.49

$

Usually ships in 2-12 days

0

75

Snapper 703523

BOLT, Shoulder, 5/16-14 x .972

$6.49

$

Usually ships in 2-12 days

0

76

Snapper 703532

SPACER, .340 x .460 x .246

$6.99

$

Usually ships in 2-12 days

0

77

Snapper 703493

WIRE HARNESS

Note: (Not Illustrated)

$58.99

$

Usually ships in 2-12 days

0
