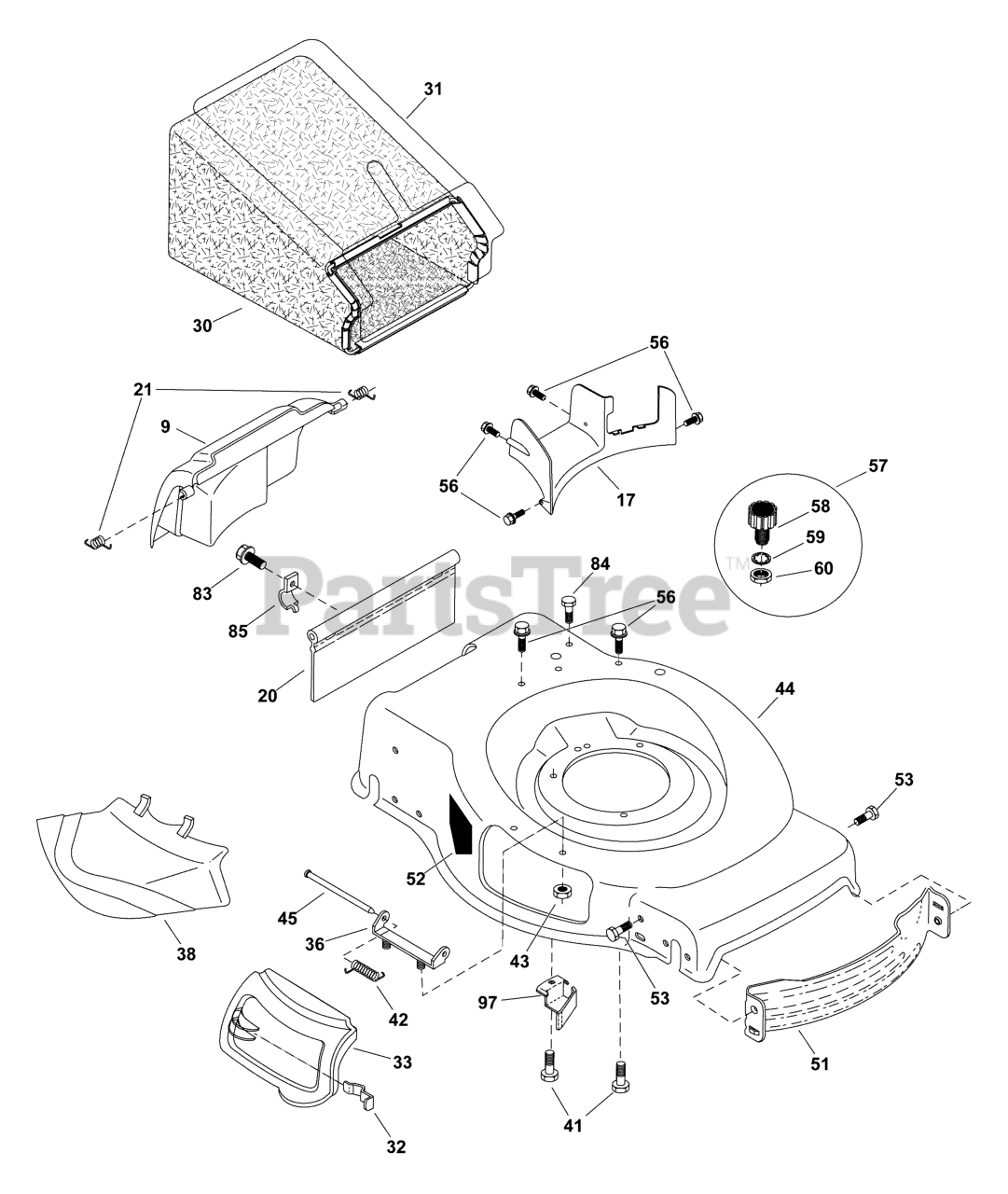

SP 110 (2691554-00) - Snapper 22" Walk-Behind Mower, AWD, 160 Series Briggs Deck Group Parts Diagram

22" Walk-Behind Mower, AWD, 160 Series Briggs

Deck Group Parts Diagram

  • Title

9

Snapper 84005598

DEFLECTOR

$71.99

$

Usually ships in 2-12 days

0

17

Snapper 707667

BAFFLE, Rear

$38.99

$

Usually ships in 2-12 days

0

20

Snapper 707670

SKIRT, Rear

$30.99

$

Usually ships in 2-12 days

0

21

Snapper 709341

Spring, Rear Door, LH, Black

$7.49

$

Usually ships in 2-12 days

0

30

Snapper 84003976

GRASSBAG

$

$

Currently unavailable

31

Snapper 707677

FRAME, Grass Bag

$173.99

$

Usually ships in 2-12 days

0

32

Snapper 709337

Latch, Mulcher Door

$10.99

$

Usually ships in 2-12 days

0

33

Snapper 84003977

DOOR, Mulcher

$51.99

$

Usually ships in 2-12 days

0

36

Snapper 709183

Hinge Bracket Assembly

$13.99

$

In Stock, only 1 left!

0

38

Snapper 709336

Discharge Deflector

$37.99

$

Usually ships in 2-12 days

0

41

Snapper 84004301

SCREW, 3/8 Hex HD Thread Rolled

$16.99

$

Usually ships in 2-12 days

0

42

Snapper 709257

Spring, Torsion

$10.99

$

In Stock, only 1 left!

0

43

Snapper 709237

Nut, Hex, Flanged 1/4-20

$6.99

$

Usually ships in 2-12 days

0

44

HOUSING. Lawn Mower

Note: (Not a serviceable part)

$

$

Not available

45

Snapper 707178

HOSE-FUEL

$49.99

$

Usually ships in 2-12 days

0

51

Snapper 707687

BAFFLE, FRONT

$42.99

$

Usually ships in 2-12 days

0

52

Snapper 709203

Decal Deflect WRN. Cutfinger

$8.99

$

Usually ships in 2-12 days

0

53

Snapper 705320

SCREW, FRONT BAFFLE

$10.99

$

Usually ships in 2-12 days

0

56

Snapper 709159

Screw, Hex Washer Head, #13 x 3/4

$7.99

$

Usually ships in 2-12 days

0

57

Snapper 707721

KIT, Washout Port

Note: (Includes Ref Nos 58 through 60)

$46.99

$

Usually ships in 2-12 days

0

58

Snapper 707722

WASHOUT PORT
(Superseded to 709804)

$25.99

$

Usually ships in 2-12 days

0

59

Snapper 707723

WASHER, Lock, Internal Tooth

$5.49

$

Usually ships in 2-12 days

0

60

Snapper 707724

NUT, Lock, With O-Ring

$10.99

$

Usually ships in 2-12 days

0

83

Snapper 84005597

CAPSCREW

$

$

Currently unavailable

84

Snapper 707694

FASTENER, Push

$9.49

$

Usually ships in 2-12 days

0

85

Snapper 707695

BRACKET, MOUNTING

$9.49

$

In Stock, only 2 left!

0

97

Snapper 84005595

GUIDE, Belt

$14.99

$

In Stock, only 1 left!

0
