SP 185H42 LT (960120023-00) - Statesman Lawn Tractor (2005) (Southern States) Engine Parts Diagram

Lawn Tractor

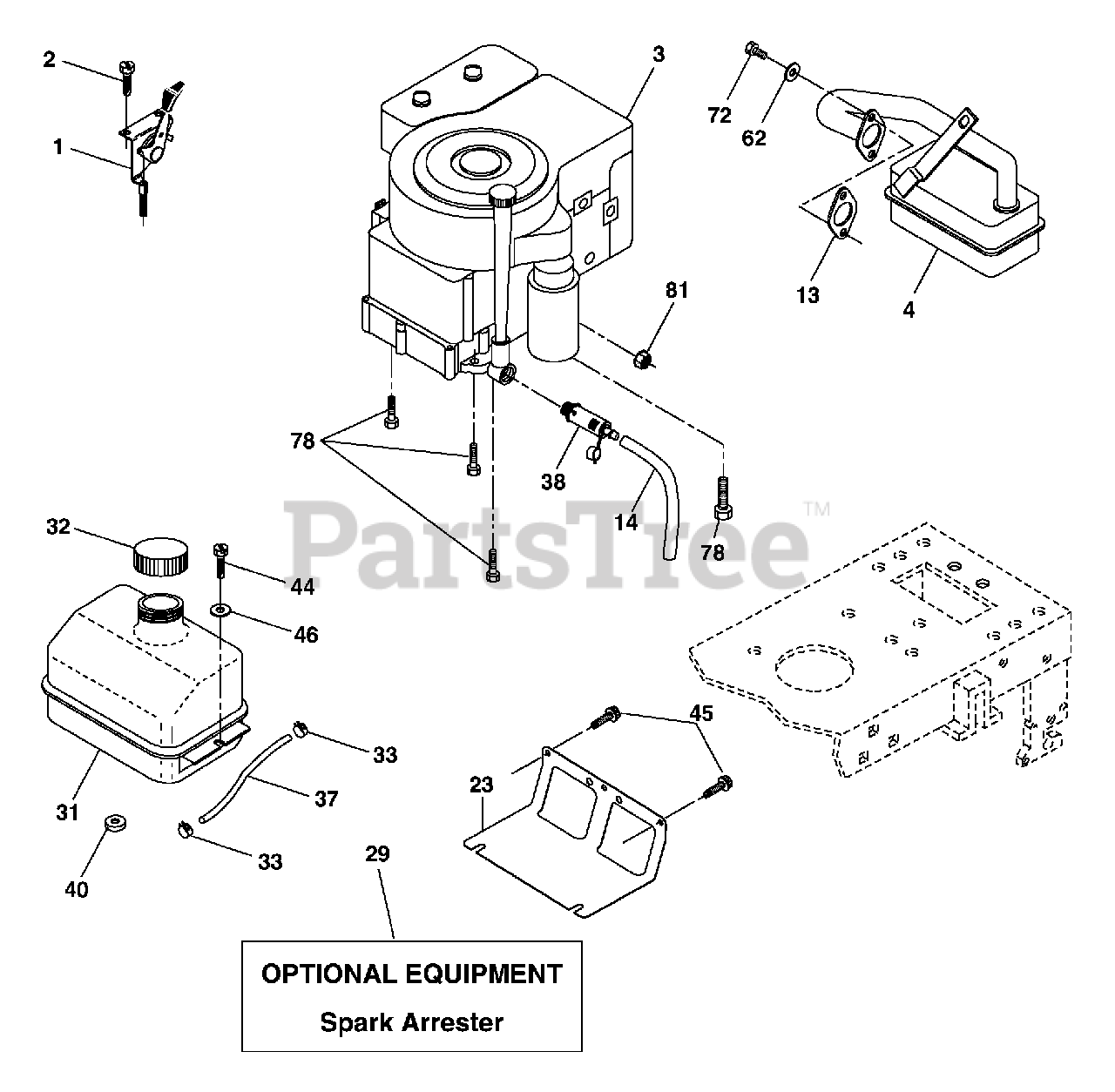

Engine Parts Diagram

  • Title

1

Electrolux/AYP 170551

Control, Throttle
(Superseded to 532170551)

$

$

Not available

2

Electrolux/AYP 17720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 817240408)

$

$

Not available

3

Engine Briggs Model 31P777

Note: (Order Parts from Engine Mfg.)

$

$

Not available

4

Electrolux/AYP 137352

Muffler
(Superseded to 532137352)

$51.99

$

In Stock, Qty 7

0

13

Electrolux/AYP 165291

Muffler Gasket
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 148456

Tube Oil Drain
(Superseded to 532148456)

$6.99

$

In Stock, only 4 left!

0

23

Electrolux/AYP 169837

Shield, Browning/Debris Guard
(Superseded to 532169837)

$

$

Not available

29

Electrolux/AYP 137180

Arrester, Spark
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 187750

Tank, Fuel

$

$

Not available

32

Electrolux/AYP 140527

Cap, Fuel
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

33

Electrolux/AYP 123487X

Clamp, Hose Blk
(Superseded to 532123487)

$3.99

$

In Stock, only 4 left!

0

37

Electrolux/AYP 137040

Line, Fuel
(Superseded to 532137040)

$

$

Not available

38

Electrolux/AYP 181654

Plug Drain Oil Easy
(Superseded to 532428287)

$20.99

$

In Stock, Qty 8

0

40

Murray 124028X

Bushing Snap

$

$

Not available

44

Electrolux/AYP 17670412

Screw Hex Wsh THDROL 1/4-20 x 3/4
(Superseded to 817670412)

$4.99

$

In Stock, only 2 left!

0

45

Electrolux/AYP 17000612

Screw Hex Wsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

46

Electrolux/AYP 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$

$

Not available

62

Electrolux/AYP 10010500

Washer Split
(Superseded to 810010500)

$3.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 17490412

Screw 1/4-20 x 3/4

$2.99

$

In Stock, only 1 left!

0

78

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$6.99

$

In Stock, Qty 11

0

81

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available
