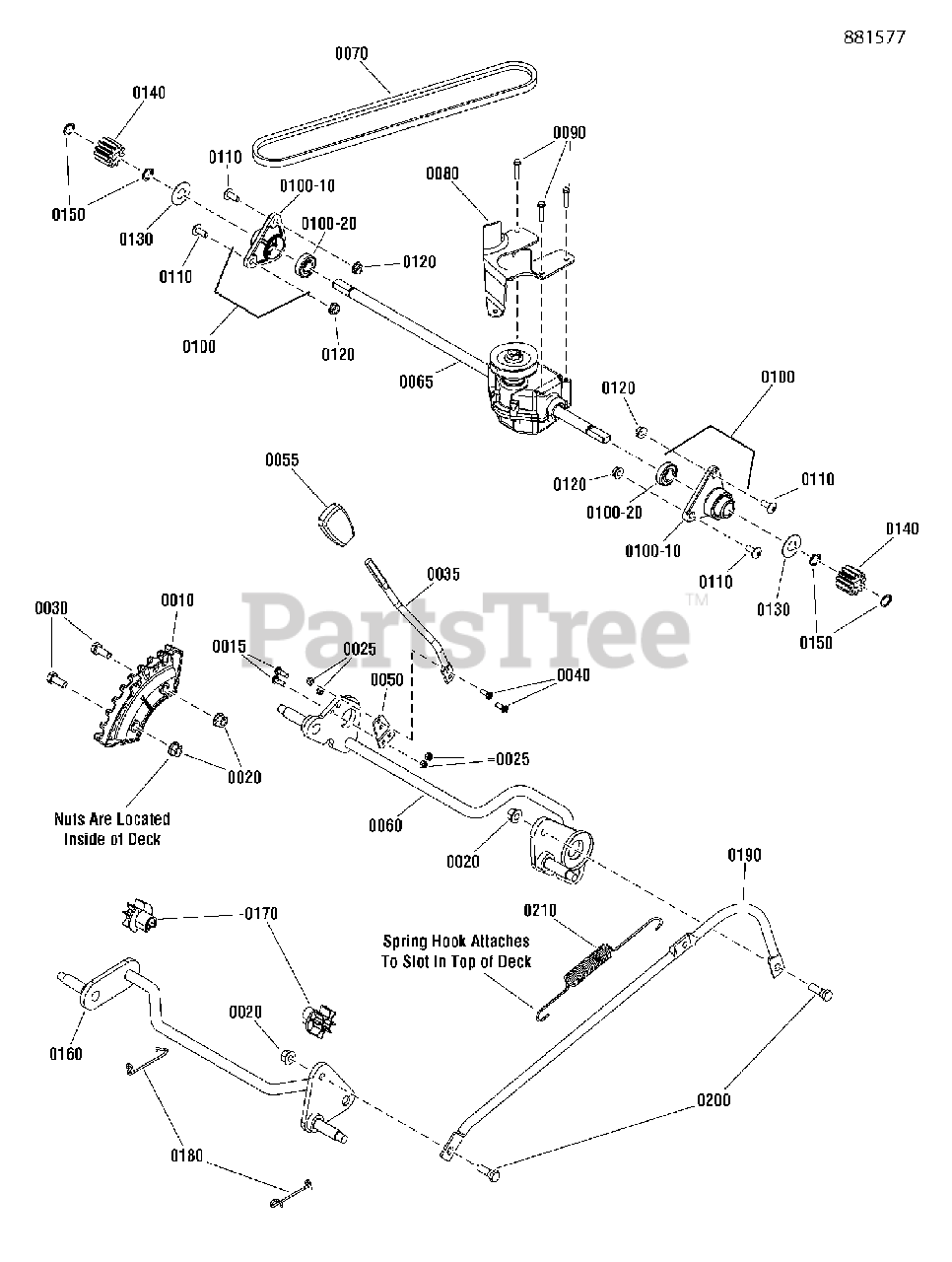

SP 19550EX (881545-00) - Snapper 19" Walk-Behind Mower, 5.5hp Height-of-Cut Group, 19" Self-Propelled Parts Diagram

19" Walk-Behind Mower, 5.5hp

Height-of-Cut Group, 19" Self-Propelled Parts Diagram

  • Title

0010

Snapper 880960

INDEX PLATE, Standard Wheel
(Superseded to 880960YP)

$16.99

$

Usually ships in 2-12 days

0

0015

Snapper 880339

SCREW, M5X0.8 x 14.5LG Torx Head
(Superseded to 880339YP)

$3.99

$

In Stock, only 4 left!

0

0020

Snapper 1739305

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, only 2 left!

0

0025

Snapper 880428

NUT, M5 X 0.8 Nyloc
(Superseded to 880428YP)

$3.99

$

Usually ships in 2-12 days

0

0030

Snapper 22142

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

0035

Snapper 880540

LEVER, Heght Adjuster
(Superseded to 880540YP)

$7.99

$

In Stock, only 2 left!

0

0040

Snapper 880577

SCREW, M5X0.8 x 12.5LG Torx Head
(Superseded to 880577YP)

$3.99

$

In Stock, only 4 left!

0

0050

Snapper 880642

SPRING, Height Adjustment, SP
(Superseded to 880642YP)

$5.99

$

In Stock, only 2 left!

0

0055

Snapper 880325

KNOB, Height Adjust, Style II
(Superseded to 880325YP)

$5.99

$

Usually ships in 2-12 days

0

0060

Snapper 880829

WELDMENT, Crossbar, 19 Self-Propelled
(Superseded to 880829YP)

$94.99

$

Usually ships in 2-12 days

0

0065

Snapper 880341

TRANSMISSION, Single Speed, 19"
(Superseded to 880341YP)

$119.99

$

Usually ships in 2-12 days

0

0070

Snapper 880268

BELT-DRIVE, Slipping System
(Superseded to 880268YP)

Note: (V- 3L- 32.50 effective length)

$26.99

$

Usually ships in 2-12 days

0

0080

Snapper 880282

BELT GUIDE, Transmission
(Superseded to 880282YP)

$12.99

$

Usually ships in 2-12 days

0

0090

Snapper 880760

SCREW, #10-14 Plastite x .88
(Superseded to 880760YP)

$4.49

$

Usually ships in 2-12 days

0

0100

Snapper 880787

ASSEMBLY, Ball Bearing & Retainer
(Superseded to 880787YP)

Note: (includes ball bearing 880788)

$17.99

$

Usually ships in 2-12 days

0

0100-10

Snapper 880786

RETAINER, Ball Bearing
(Superseded to 880786YP)

$7.99

$

Usually ships in 2-12 days

0

0100-20

Snapper 880788

BALL BEARING, 1/2" I.D.

$

$

Currently unavailable

0110

Snapper 880845

SCREW, 1/4-20 x 5/8", Torx Truss Head
(Superseded to 880845YP)

$3.49

$

Usually ships in 2-12 days

0

0120

Snapper 880859

NUT, 1/4-20, Flange Lock, BZ
(Superseded to 880859YP)

$3.99

$

Usually ships in 2-12 days

0

0130

Snapper 880324

WASHER, Thrust, 30mm O.D.
(Superseded to 880324YP)

$3.49

$

Usually ships in 2-12 days

0

0140

Snapper 880226

GEAR, Pinion
(Superseded to 880226YP)

$7.99

$

Usually ships in 2-12 days

0

0150

Snapper 880269

RING, External Retaining
(Superseded to 880269YP)

Note: (Rotor Clip p/n SHR-50 or equivalent)

$3.99

$

Usually ships in 2-12 days

0

0160

Snapper 880053

ASSEMBLY, Front Crossbar
(Superseded to 880053YP)

$48.99

$

Usually ships in 2-12 days

0

0170

Snapper 880050

BUSHING, Front
(Superseded to 880050YP)

$4.99

$

Usually ships in 2-12 days

0

0180

Snapper 881163

SPRING CLIP, Crossbar
(Superseded to 881163YP)

$8.99

$

In Stock, Qty 7

0

0190

Snapper 880791A

LIFTER LINK, 19" - Black
(Superseded to 880791AYP)

$23.99

$

Usually ships in 2-12 days

0

0200

Snapper 880651

SHOULDER BOLT, 5/16-18 Hex Washer Head, GR 2
(Superseded to 880651YP)

$3.99

$

Usually ships in 2-12 days

0

0210

Snapper 880052

SPRING, Extension
(Superseded to 880052YP)

$6.99

$

Usually ships in 2-12 days

0
