SP 196750FC (881228) - Snapper 19" Walk-Behind Mower, 6.75hp Deck & Engine Group Parts Diagram

19" Walk-Behind Mower, 6.75hp

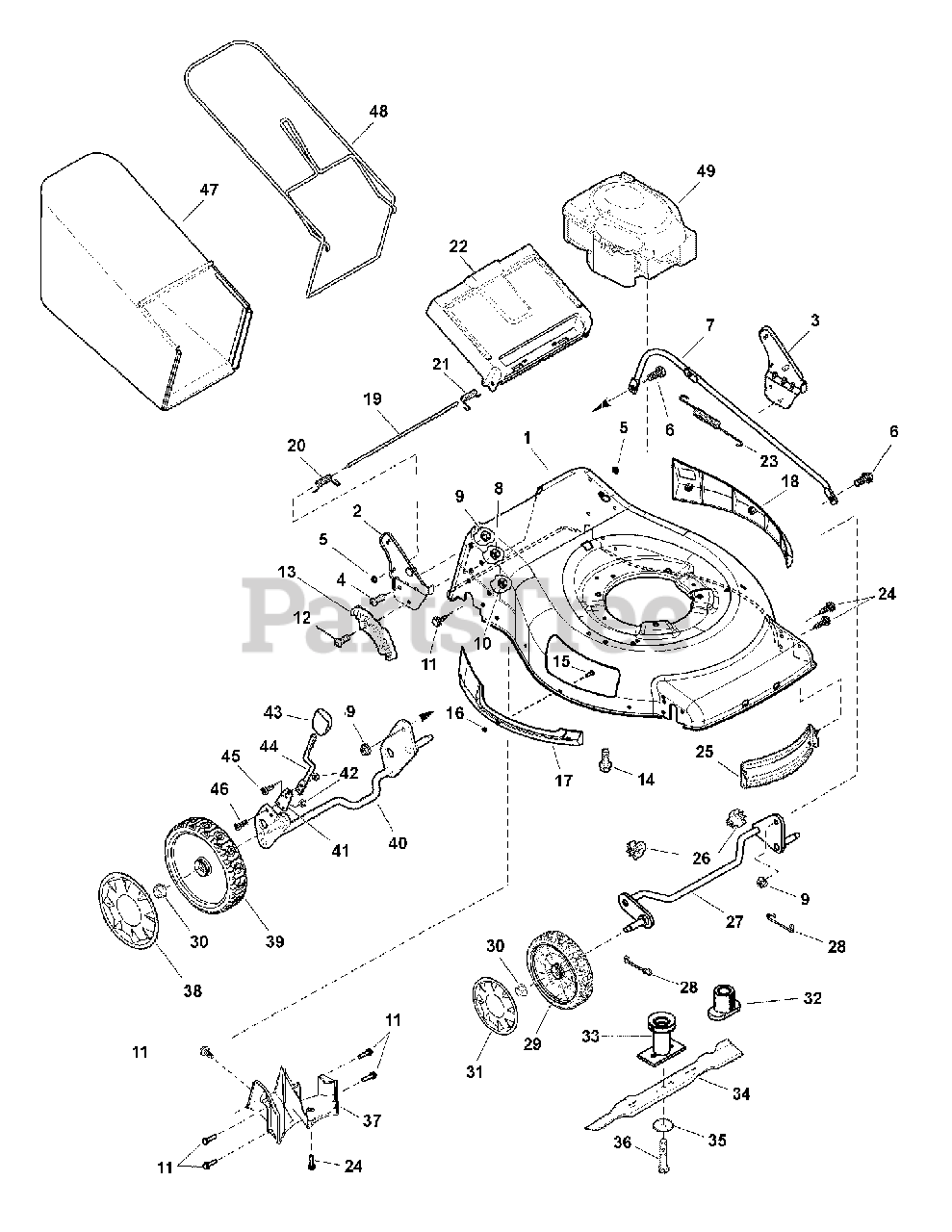

Deck & Engine Group Parts Diagram

  • Title

1

Snapper 881252D

HOUSING ASSEMBLY, 19" SD
(Superseded to 881252BJYP)

$153.99

$

Usually ships in 2-12 days

0

2

Snapper 880950A

HANDLE BRACKET, Assembly, RH - Black
(Superseded to 880950AYP)

$20.99

$

Usually ships in 2-12 days

0

3

Snapper 880951A

HANDLE BRACKET, Assembly, LH
(Superseded to 880951AYP)

$20.99

$

Usually ships in 2-12 days

0

4

Snapper 880748

SCREW, 5/16-18 x 1.1, Hex Washer
(Superseded to 880748YP)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7091020

NUT, Push, 1/4 BZ
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 880651

BOLT, Hex Washer Head Shoulder, 5/16-18
(Superseded to 880651YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 880791D

LIFTER LINK, 19"
(Superseded to 880791AYP)

$23.99

$

Usually ships in 2-12 days

0

8

Snapper 880020

LOCKNUT, M8 Nyloc
(Superseded to 880020YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 880759

NUT, 5/16-18, Fange Lock, BZ
(Superseded to 703115)

$3.49

$

In Stock, Qty 11

0

10

Snapper 880859

NUT, Flange Lock, 1/4-20, BZ
(Superseded to 880859YP)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 880804

SCREW, 1/4" HI-LO X .75
(Superseded to 880804YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 880323

BOLT, Hex Socket Head, M8 x 1.25
(Superseded to 880323YP)

$3.99

$

In Stock, only 4 left!

0

13

Snapper 880960

INDEX BRACKET, Height, Standard Wheel
(Superseded to 880960YP)

$16.99

$

Usually ships in 2-12 days

0

14

Snapper 7090324

SCREW, HWST, 3/8 C X1 BZ
(Superseded to 704000)

Note: (Engine Mount Bolts)

$4.99

$

In Stock, only 4 left!

0

15

Snapper 880389

RIVET, Blind, 5MM X 12MM
(Superseded to 880389YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 880384

WASHER, Flat, M8 ID X 0.5 OD
(Superseded to 880384YP)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 881112

SIDE GUARD, RH, Mulching
(Superseded to 881112YP)

$10.99

$

Usually ships in 2-12 days

0

18

Snapper 881109

SIDE GUARD ASSEMBLY, LH, Black
(Superseded to 881109YP)

$14.99

$

Usually ships in 2-12 days

0

19

Snapper 880214

ROD, Rear Door
(Superseded to 880214YP)

$10.99

$

Usually ships in 2-12 days

0

20

Snapper 880942

SPRING, Torsion, RH
(Superseded to 880942YP)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 880943

SPRING, Torsion, LH
(Superseded to 880943YP)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 880671

DOOR, Rear 19 EU Black
(Superseded to 880671YP)

$42.99

$

Usually ships in 2-12 days

0

23

Snapper 880052

SPRING, Extension
(Superseded to 880052YP)

$6.99

$

Usually ships in 2-12 days

0

24

Snapper 880664

SCREW, 1/4"-20 X 1/2" Taptite Pan Head
(Superseded to 880664YP)

$3.99

$

Usually ships in 2-12 days

0

25

Snapper 880784

BAFFLE, Front, 19"
(Superseded to 880784BMYP)

$46.99

$

Usually ships in 2-12 days

0

26

Snapper 880050

BUSHING, Front SLA
(Superseded to 880050YP)

$4.99

$

Usually ships in 2-12 days

0

27

Snapper 880053

AXLE, Front Crossbar Weldment, 19"
(Superseded to 880053YP)

$48.99

$

Usually ships in 2-12 days

0

28

Snapper 881163

SPRING CLIP, Front Axle Crossbar
(Superseded to 881163YP)

$8.99

$

In Stock, Qty 7

0

29

Snapper 880718

WHEEL ASSEMBLY, Front, Ball Bearing, 175MM (5.6"), Tread III
(Superseded to 880718YP)

$56.99

$

In Stock, only 1 left!

0

30

Snapper 881568YP

LOCKNUT, 3/8-16, Hex Flange Top Lock

$5.49

$

In Stock, only 1 left!

0

31

Snapper 880656

HUBCAP, Front, 175MM, Style 3, Silver 5.56" OD
(Superseded to 880656YP)

$14.99

$

Usually ships in 2-12 days

0

32

Snapper 880009

ADAPTER, Blade, Push
(Superseded to 880009YP)

Note: (Used on push model 881227)

$18.99

$

Usually ships in 2-12 days

0

33

Snapper 880567

ADAPTER, Blade, Self-Propelled
(Superseded to 880567YP)

Note: (Used on propelled model #881228)

$31.99

$

In Stock, only 1 left!

0

34

Snapper 880638

BLADE, 19" Low Lift
(Superseded to 880638BZYP)

$26.99

$

Usually ships in 2-12 days

0

35

Snapper 880035

WASHER, Belleville 7/16 ID
(Superseded to 880035YP)

$3.49

$

Usually ships in 2-12 days

0

36

Snapper 880034

BOLT, 3/8-24 x 2 Gr. 8
(Superseded to 880034YP)

$4.49

$

Usually ships in 2-12 days

0

37

Snapper 880785

BAFFLE, Rear, 19, Plastic
(Superseded to 880785YP)

$64.99

$

Usually ships in 2-12 days

0

38

Snapper 880657

HUBCAP, Rear, 200MM, Style 3, Silver 7.1" OD
(Superseded to 880657YP)

$13.99

$

Usually ships in 2-12 days

0

39

Snapper 880195

WHEEL ASSEMBLY, Rear, Self-Propelled, 200MM (7.1"), BBSP TREAD III
(Superseded to 880194YP)

Note: (Used on propelled model #881228)

$

$

Not available

39

Snapper 880709

WHEEL ASSEMBLY, Rear, Push, Ball Bearing, 200MM (7.1"), Tread III, SL
(Superseded to 880709YP)

Note: (Used on push model 881227)

$40.99

$

In Stock, only 1 left!

0

40

Snapper 880829

AXLE, Rear Crossbar Weldment
(Superseded to 880829YP)

$94.99

$

Usually ships in 2-12 days

0

41

Snapper 880642

SPRING, Height Adjustment Handle
(Superseded to 880642YP)

$5.99

$

In Stock, only 2 left!

0

42

Snapper 880428

NUT, Nyloc, M5 X 0.8
(Superseded to 880428YP)

$3.99

$

Usually ships in 2-12 days

0

43

Snapper 880325

KNOB, Height Adjust, Style ll
(Superseded to 880325YP)

$5.99

$

Usually ships in 2-12 days

0

44

Snapper 880540

LEVER, Height Adjuster
(Superseded to 880540YP)

$7.99

$

In Stock, only 2 left!

0

45

Snapper 880577

SCREW, M5-0.8 X 12.5, Torx
(Superseded to 880577YP)

$3.99

$

In Stock, only 4 left!

0

46

Snapper 880339

SCREW, T-25 Torx Head, M5 x 0.8 x 14
(Superseded to 880339YP)

$3.99

$

In Stock, only 4 left!

0

47

Snapper 880965

BAG, 19, 70L
(Superseded to 880965YP)

$67.99

$

Usually ships in 2-12 days

0

48

Snapper 880963Z

BAG FRAME, Weldment, 70L
(Superseded to 880963ZYP)

$72.99

$

In Stock, only 1 left!

0

49

Snapper 10T802-0155-B1

* ENGINE, B&S, 550 Series, 10T802-0155-B1

Note: (Used on push model 881227)

$

$

Currently unavailable

49

Snapper 126T02-0318-B1

* ENGINE, B&S, 675 Series, 126T02-0318-B1

Note: (Used on propelled model #881228)

$

$

Currently unavailable

--

Snapper 795171

* SHROUD/LABEL, Engine (Not Shown)

Note: (Used on push model 881227)

$

$

Currently unavailable

--

Snapper 796150

* SHROUD ASSEMBLY (Includes: 287544, 283805, 284061)(Not Shown)

Note: (Used on propelled model #881228)

$

$

Currently unavailable

--

Snapper 227544

* PLATE, Top (Not Shown)

Note: (Used on propelled model #881228)

$

$

Currently unavailable

--

Snapper 283805

* SHROUD, Top (Not Shown)

Note: (Used on propelled model #881228)

$

$

Currently unavailable

--

Snapper 284061

* SHROUD, Bottom (Not Shown)

Note: (Used on propelled model #881228)

$

$

Currently unavailable
