SP 20 HPS - Shindaiwa Manual Sprayer (SN: MSP10001001 - MSP10999999) Pump Parts Diagram

Manual Sprayer

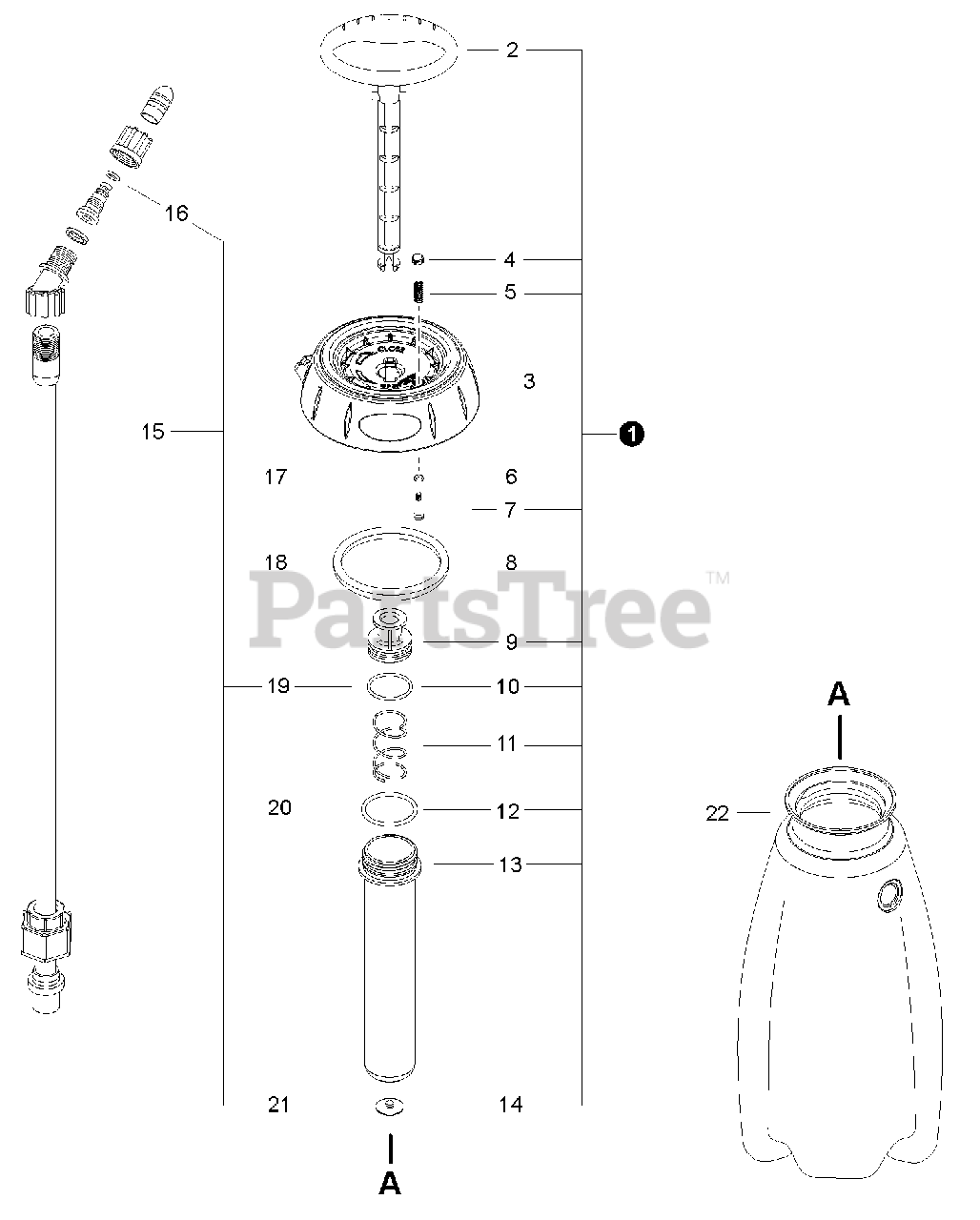

Pump Parts Diagram

  • Title

1

Echo 569031

PUMP ASSY

$56.99

$

Usually ships in 2-4 days

0

2

------------------

HANDLE, PUMP

$

$

Not available

3

------------------

CAP, TANK

$

$

Not available

4

------------------

BUTTON, PRESSURE RELIEF

$

$

Not available

5

------------------

SPRING, PRESSURE RELIEF

$

$

Not available

6

------------------

O-RING, PRESSURE RELIEF

$

$

Not available

7

------------------

VALVE, PRESSURE RELIEF

$

$

Not available

8

------------------

O-RING, CAP

$

$

Not available

9

------------------

PLUNGER, PUMP

$

$

Not available

10

------------------

O-RING, PLUNGER

$

$

Not available

11

------------------

SPRING, PUMP

$

$

Not available

12

------------------

O-RING, BARREL

$

$

Not available

13

------------------

BARREL, PUMP

$

$

Not available

14

------------------

VALVE, CHECK

$

$

Not available

15

Echo 569015

REPAIR KIT, PUMP

$32.99

$

Usually ships in 2-4 days

0

16

------------------

O-RING, NOZZLE

$

$

Not available

17

------------------

O-RING, PRESSURE RELIEF

$

$

Not available

18

------------------

O-RING, CAP

$

$

Not available

19

------------------

O-RING, PLUNGER

$

$

Not available

20

------------------

O-RING, BARREL

$

$

Not available

21

------------------

VALVE, CHECK

$

$

Not available

22

------------------

TANK, SPRAYER

Note: NOT AVAILABE SEPARATELY

$

$

Not available
