SP 210 - Shindaiwa Manual Sprayer General Assembly Parts Diagram

Manual Sprayer

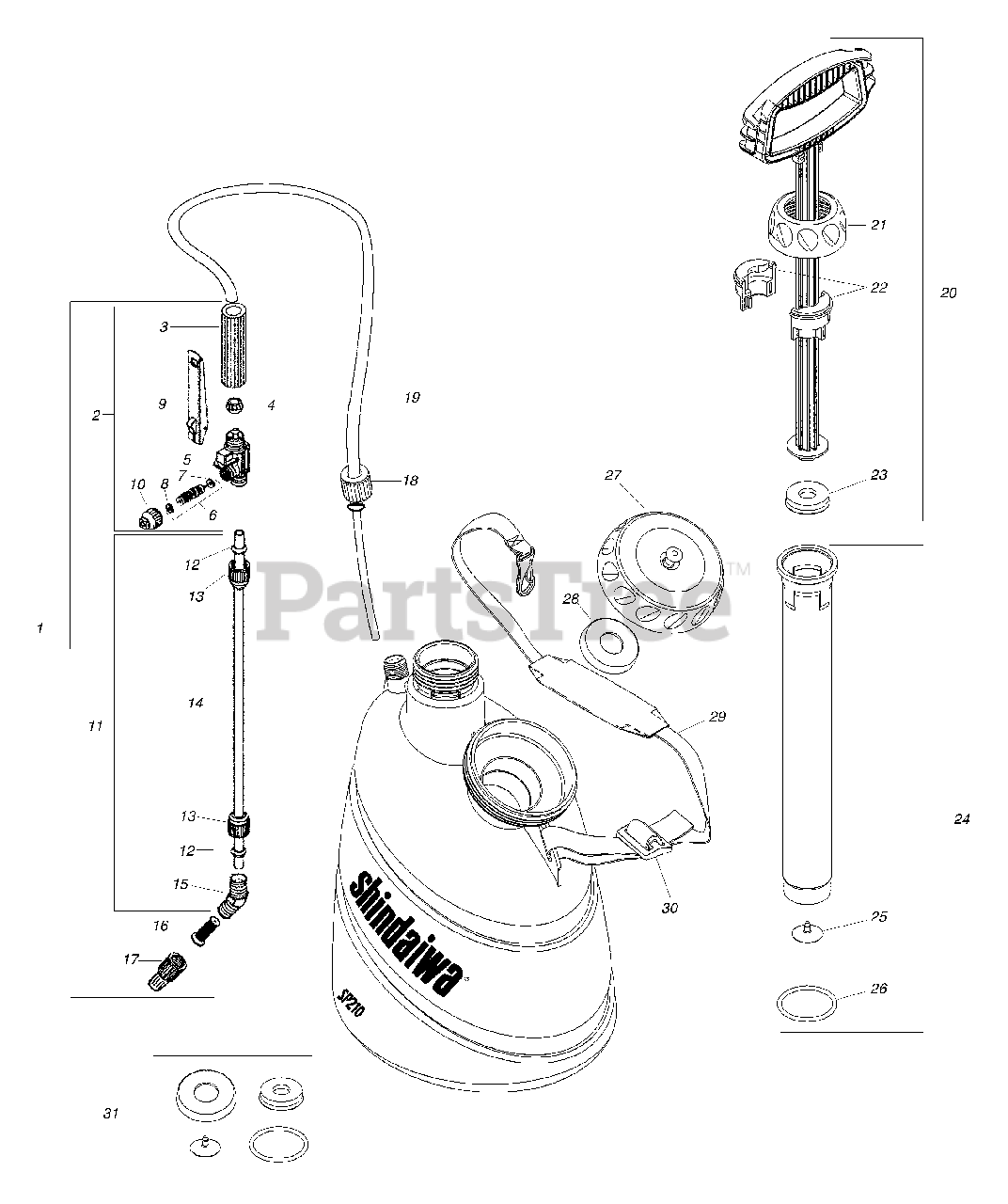

General Assembly Parts Diagram

  • Title

1

Echo 568774

SPRAY WAND ASSY

$35.99

$

In Stock, only 4 left!

0

2

Echo 568782

TRIGGER VALVE ASSY
(Superseded to 908889)

$23.99

$

In Stock, Qty 8

0

3

Echo 909192

HANDLE, TRIGGER VALVE

$1.99

$

In Stock, only 4 left!

0

4

Echo 920470

LOCK

$0.99

$

In Stock, Qty 5

0

5

Echo 909283

BODY, TRIGGER VALVE

$3.99

$

Usually ships in 2-4 days

0

6

Echo 105239

TRIGGER VALVE NEEDLE ASSY
(Superseded to 1230971)

$8.99

$

Usually ships in 2-4 days

0

7

Echo 300731

SEAL - LOWER

$1.99

$

In Stock, only 2 left!

0

8

Echo 300764

SEAL - UPPER

$1.99

$

Usually ships in 2-4 days

0

9

Echo 568972

TRIGGER
(Superseded to 1220951)

$11.99

$

Usually ships in 2-4 days

0

10

Echo 996058

TRIGGER VALVE CAP ASSY

$1.99

$

In Stock, Qty 11

0

11

Echo 568873

SPRAY TUBE ASSY

$

$

Not available

12

Echo 909309

CONE PACKING
(Superseded to 635276)

$3.99

$

In Stock, only 4 left!

0

13

Echo 915744

SCREW
(Superseded to 1220969)

$1.99

$

In Stock, Qty 11

0

14

Echo 336263

SPRAY WAND TUBE
(Superseded to 568873)

$

$

Not available

15

Echo 635276

ELBOW

$3.99

$

In Stock, only 4 left!

0

16

Echo 730366

FILTER, NOZZLE
(Superseded to 592139)

$1.49

$

In Stock, Qty 20+

0

17

Echo 015024

ADJUSTABLE CONE NOZZLE

$3.99

$

Usually ships in 2-4 days

0

18

Echo 942193

NUT - 20X1.5

$1.99

$

In Stock, only 4 left!

0

19

Echo 048116

HOSE/DIP TUBE ASSY

$14.99

$

In Stock, only 1 left!

0

20

Echo 285312

PUMP HANDLE ASSY
(Superseded to 285635)

$

$

Not available

21

Echo 285296

CYLINDER CAP

$7.99

$

Usually ships in 2-4 days

0

22

Echo 285288

BUSHING
(Superseded to Discontinued)

$

$

Not available

23

Echo 285270

CUP, PISTON
(Superseded to 147678)

$

$

Not available

24

Echo 285262

PUMP TUBE ASSY

$36.99

$

Usually ships in 2-4 days

0

25

Echo 964270

DIAPHRAGM VALVE, VITON(R)

$7.49

$

In Stock, only 1 left!

0

25

Echo 560573

VALVE, DIAPHRAGM
(Superseded to 1168542)

Note: OPTIONAL

$2.49

$

In Stock, Qty 8

0

26

Echo 010533

O-RING
(Superseded to 324335)

$2.49

$

Usually ships in 2-4 days

0

27

Echo 285247

LID, TANK

$46.99

$

Usually ships in 2-4 days

0

28

Echo 148072

GASKET
(Superseded to 147637)

$4.99

$

Usually ships in 2-4 days

0

28

Echo 285346

GASKET, TANK LID - VITON

Note: OPTIONAL

$17.99

$

Usually ships in 2-4 days

0

29

Echo 148064

STRAP ASSY

$24.99

$

Usually ships in 2-4 days

0

30

Echo 502757

BUCKLE, STRAP - LOWER

$0.99

$

Usually ships in 2-4 days

0

31

Echo 285320

SEAL KIT

Note: OPTIONAL

$23.99

$

Usually ships in 2-4 days

0
