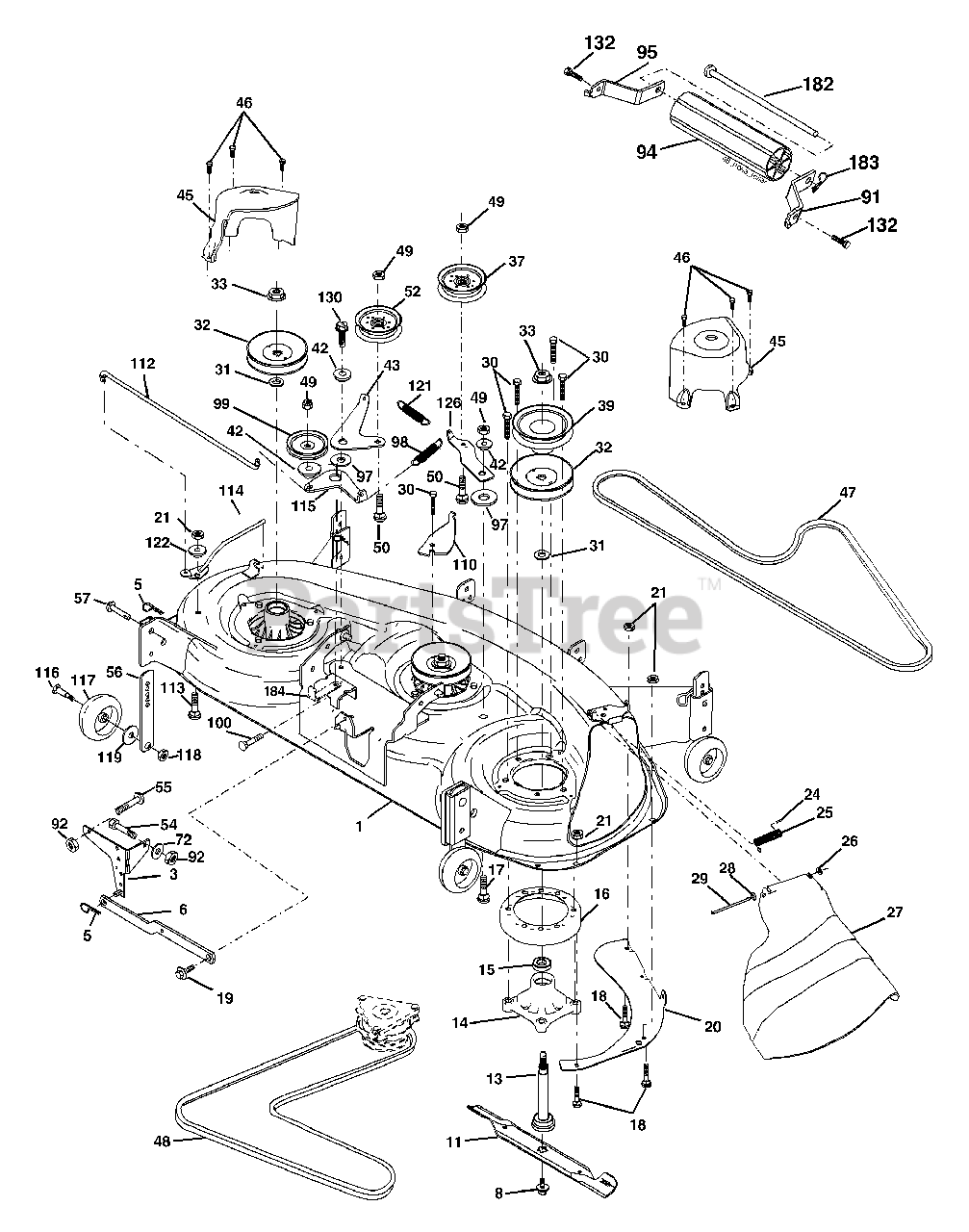

SP 25PH48ST A - Statesman Lawn Tractor (2004) (Southern States) Mower Deck Parts Diagram

Lawn Tractor

Mower Deck Parts Diagram

  • Title
1

Electrolux/AYP 180358

Deck Weldment Mower 48
(Superseded to 532184233)

$

$

Not available

3

Electrolux/AYP 138017

Bracket Asm., Sway Bar
(Superseded to 532138017)

$12.99

$

In Stock, only 1 left!

0

5

Murray 4939M

Retainer Spring

$

$

Not available

6

Electrolux/AYP 178024

Arm, Suspension, Rear Sway Bar Deck
(Superseded to 532178024)

$8.99

$

In Stock, Qty 5

0

8

Electrolux/AYP 174365

Bolt 7/16 Asm. Blade
(Superseded to 532193003)

Note: (The following blades are available)

$8.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 173921

Blade, 48" Mulching
(Superseded to 532173921)

Note: (For mulching mowers only)

$22.99

$

In Stock, Qty 7

0

11

Electrolux/AYP 180054

Blade, 48" Hi-Lift
(Superseded to 532180054)

Note: (For bagging and discharging)

$22.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 174360

Shaft Asm. w/Lower Bearing
(Superseded to 532174360)

$66.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 174358

Mandrel Asm. Housing
(Superseded to 532174358)

$56.99

$

In Stock, only 3 left!

0

15

Electrolux/AYP 110485X

Bearing, Ball, Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 174493

Stripper Mandrel Deck
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 72110610

Bolt RDHD Sq Neck 3/8-16 x 1.25
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 132827

Bolt, Hex Hd, Shoulder 5/16-18
(Superseded to 532132827)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 174378

Baffle, Vortex Mower
(Superseded to 532174378)

$14.99

$

Usually ships in 3-10 days

0

21

Murray 73680500

Nut, Crownlock 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 105304X

Cap, Sleeve
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 178102

Spring, Torsion
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 110452X

Nut, Push
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 180655X428

Deflector Shield
(Superseded to 532180655)

$45.99

$

In Stock, Qty 10

0

28

Electrolux/AYP 19111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 173984

Screw, Thdroll Washer Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 187690

Washer, Spacer
(Superseded to 532187690)

$4.99

$

In Stock, Qty 7

0

32

Electrolux/AYP 177865

Pulley, Mandrel
(Superseded to 532173436)

$17.99

$

In Stock, Qty 7

0

33

Electrolux/AYP 178342

Nut, Flg. Top Lock Cntr. 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 20+

0

36

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 177968

Pulley, Idler, Flat
(Superseded to 532177968)

$31.99

$

In Stock, Qty 8

0

39

Electrolux/AYP 174375

Pulley, Idler, Driven
(Superseded to 532174375)

$39.99

$

In Stock, Qty 7

0

42

Electrolux/AYP 165723

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

43

Electrolux/AYP 174373

Arm, Idler Secondary
(Superseded to 532174373)

$

$

Not available

45

Electrolux/AYP 180806

Cover, Mandrel Deck
(Superseded to 532180806)

$

$

Not available

46

Electrolux/AYP 137729

Screw, Thdroll. 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 180808

V-Belt, Mower, Secondary
(Superseded to 532180808)

$

$

Not available

48

Electrolux/AYP 174368

V-Belt, Mower, Primary
(Superseded to 532174368)

$56.99

$

Usually ships in 3-10 days

0

49

Murray 73900600

Nut, Lock 3/8-16 unc

$

$

Not available

50

Electrolux/AYP 72110612

Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 175820

Pulley Idler Flat
(Superseded to 596481401)

$26.99

$

In Stock, only 1 left!

0

54

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

55

Murray 72140608

Bolt Carriage Sqnk. 3/8-16 x 1

$

$

Not available

56

Electrolux/AYP 155986

Bar Pnt Adj.

$

$

Not available

57

Electrolux/AYP 156941

Pin Head Rivet
(Superseded to 532156941)

$

$

Not available

72

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

91

Electrolux/AYP 180535

Bracket, Asm Noseroller, RH
(Superseded to 532180535)

$4.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 73800600

Nut Lock Hex 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 176066

Noseroller
(Superseded to 532176066)

$13.99

$

In Stock, Qty 15

0

95

Electrolux/AYP 180534

Bracket, Asm Noseroller LH
(Superseded to 532180534)

$4.99

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 178515

Washer Hardened
(Superseded to 532178515)

$6.99

$

In Stock, only 2 left!

0

98

Electrolux/AYP 179479

Spring Primary Drive
(Superseded to 532179479)

$

$

Not available

99

Electrolux/AYP 184058

Pulley Idler "V"
(Superseded to 532193195)

$66.99

$

In Stock, Qty 10

0

100

Electrolux/AYP 72110616

Bolt RDHD Sqnk 3/8-16 unc x 2
(Superseded to 872110616)

$3.99

$

Usually ships in 3-10 days

0

110

Electrolux/AYP 175016

Arm Spring Secondary
(Superseded to 532175016)

$

$

Not available

112

Electrolux/AYP 174387

Link Tension Relief Lever
(Superseded to 532174387)

$

$

Not available

113

Electrolux/AYP 72110506

Bolt 5/16-18 x 3/4
(Superseded to 872110506)

$7.49

$

In Stock, Qty 19

0

114

Electrolux/AYP 174384

Tension Asm. Relief Lever
(Superseded to 532174384)

$

$

Not available

115

Electrolux/AYP 174609

Arm Spring Tension Relief
(Superseded to 532174609)

$5.99

$

In Stock, only 1 left!

0

116

Electrolux/AYP 184219

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Electrolux/AYP 133957

Gauge Wheel
(Superseded to 532133957)

$13.99

$

In Stock, Qty 19

0

118

Electrolux/AYP 73930600

Nut, Centerlock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

121

Electrolux/AYP 174371

Spring Secondary Drive
(Superseded to 532174371)

$

$

Not available

122

Electrolux/AYP 174606

Bushing Pivot Tension Relief
(Superseded to 532174606)

$4.99

$

In Stock, only 2 left!

0

126

Electrolux/AYP 174372

Arm, Idler, Primary Deck
(Superseded to 532174372)

$

$

Not available

130

Electrolux/AYP 17000616

Screw 3/8-16 x 1.0
(Superseded to 817000616)

$7.49

$

In Stock, Qty 6

0

132

Electrolux/AYP 17000612

Screw 3/8-16 x .75
(Superseded to 817000612)

$4.99

$

In Stock, Qty 7

0

182

Electrolux/AYP 179127

Rod Roller Nose
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

183

Electrolux/AYP 163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

184

Electrolux/AYP 173979

Keeper Belt Idler
(Superseded to 532173979)

$

$

Not available

Electrolux/AYP 174356

Mandrel Asm. Service
(Superseded to 587125201)

Note: (Includes Key Nos. 13-15 and 33)

$56.99

$

In Stock, Qty 15

0

Electrolux/AYP 181579

Relplacement Mower, Complete
(Superseded to 532181579)

Note: (Std. Deck - Order separately nose roller components key nos. 91, 94, 95, 132, 182, and 183)

$

$

Not available
