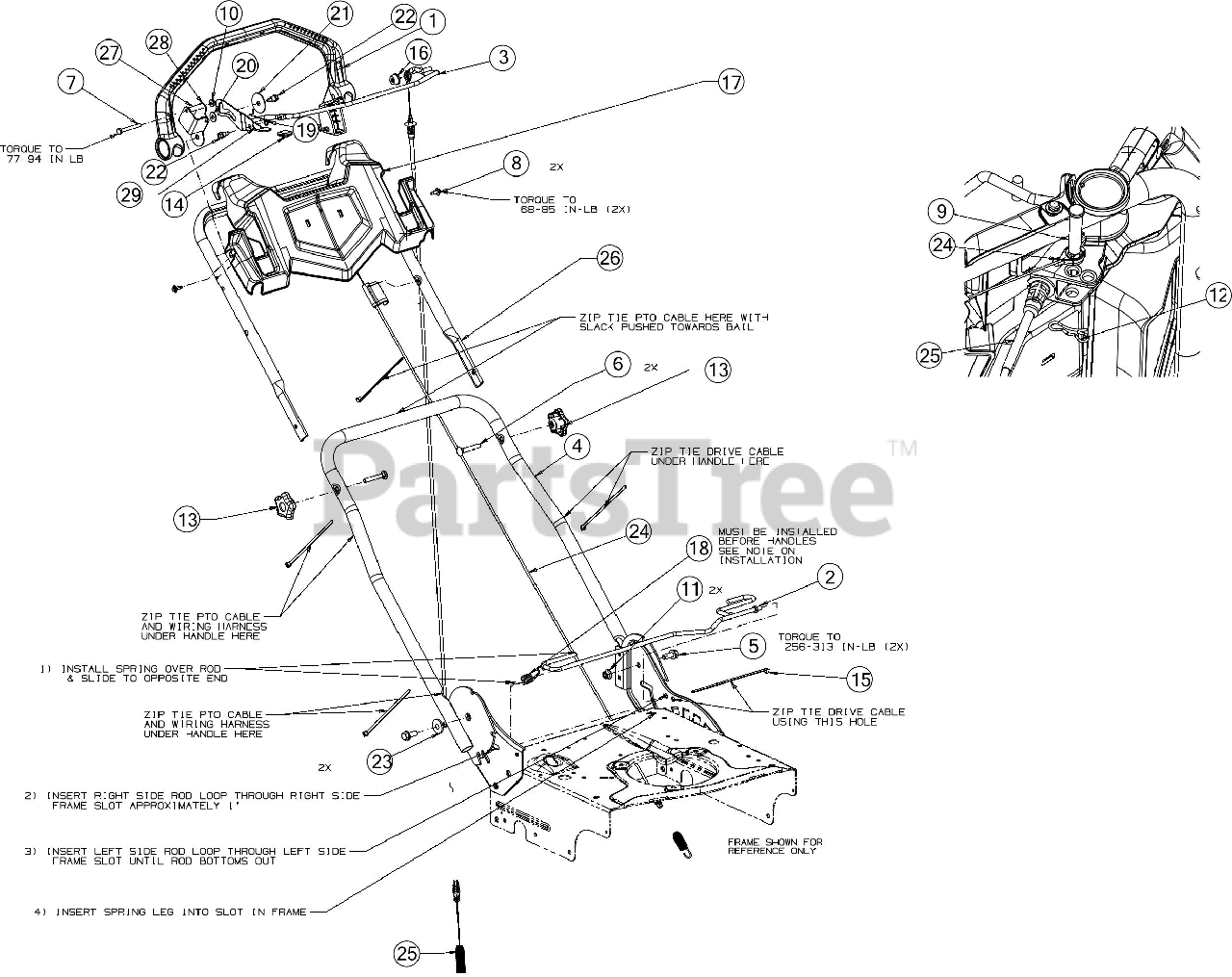

SP 28 S (12ABW32G897) - Columbia 28" Walk-Behind Mower (2016) Handle Parts Diagram

28" Walk-Behind Mower

Handle Parts Diagram

  • Title

1

MTD 631-05389A

DRIVE HANDLE ASSEMBLY (BLACK)
(Superseded to 631-05389B)

$75.99

$

Usually ships in 3-6 days

0

2

MTD 647-05068-0637

HANDLE PIVOT
(Superseded to 647E05068A)

$38.99

$

Usually ships in 3-6 days

0

3

MTD 647-05077A-0637

PTO STRAIGHT HANDLE BAIL
(Superseded to 647-05077B-0637)

$23.99

$

Usually ships in 3-6 days

0

4

MTD 649-05069-0637

LOWER HANDLE ASSEMBLY

$67.99

$

Usually ships in 3-6 days

0

5

MTD 710-04482

SCREW 3/8-16 x .875 GR5

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-04532

CARRIAGE BOLT 5/16-18 x 2.00 GR5

$6.49

$

In Stock, Qty 6

0

7

MTD 710-0501

SCREW 1/4-20 x 2 GR5

$7.49

$

In Stock, only 1 left!

0

8

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

9

MTD 711-04469A

CLEVIS PIN 3/8 x 1.87

$5.99

$

In Stock, Qty 8

0

10

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

12

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

13

MTD 720-04072A

STAR KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

14

MTD 920-04173

GRIP

$4.49

$

In Stock, Qty 5

0

15

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 3 left!

0

16

MTD 726-05084

PUSH CAP 0.3125

$4.49

$

In Stock, Qty 8

0

17

MTD 931-11886

HANDLE CONSOLE

$47.99

$

Usually ships in 3-6 days

0

18

MTD 732-05444

TORSION SPRING .48 x .177

$6.49

$

Usually ships in 3-6 days

0

19

MTD 732-05466A

TORSION SPRING
(Superseded to 732-05466B)

$4.49

$

In Stock, only 1 left!

0

20

MTD 736-0173

FLAT WASHER .28 ID x .74 OD x .063

$4.49

$

In Stock, only 1 left!

0

21

MTD 736-0430

FLAT WASHER .350X1.59X.062

$4.49

$

In Stock, Qty 16

0

22

MTD 738-04425

SHOULDER SCREW

$4.49

$

In Stock, Qty 18

0

23

MTD 738-05191

SHOULDER SPACER .625 x .169

$3.99

$

Usually ships in 3-6 days

0

24

MTD 946-05245

DRIVE CABLE

$44.99

$

Usually ships in 3-6 days

0

25

MTD 946-05250

CONTROL CABLE

$59.99

$

In Stock, Qty 15

0

26

MTD 749-05478A-0637

UPPER HANDLE

$43.99

$

Usually ships in 3-6 days

0

27

MTD 750-04456

SPACER:.260 x .372 x 1.420

$7.49

$

In Stock, Qty 20+

0

28

MTD 787-03604A-0637

MAIN LOCK OUT PLATE BRACKET

$12.99

$

Usually ships in 3-6 days

0

29

MTD 787-03605

LOCK OUT BRACKET

$20.99

$

Usually ships in 3-6 days

0
