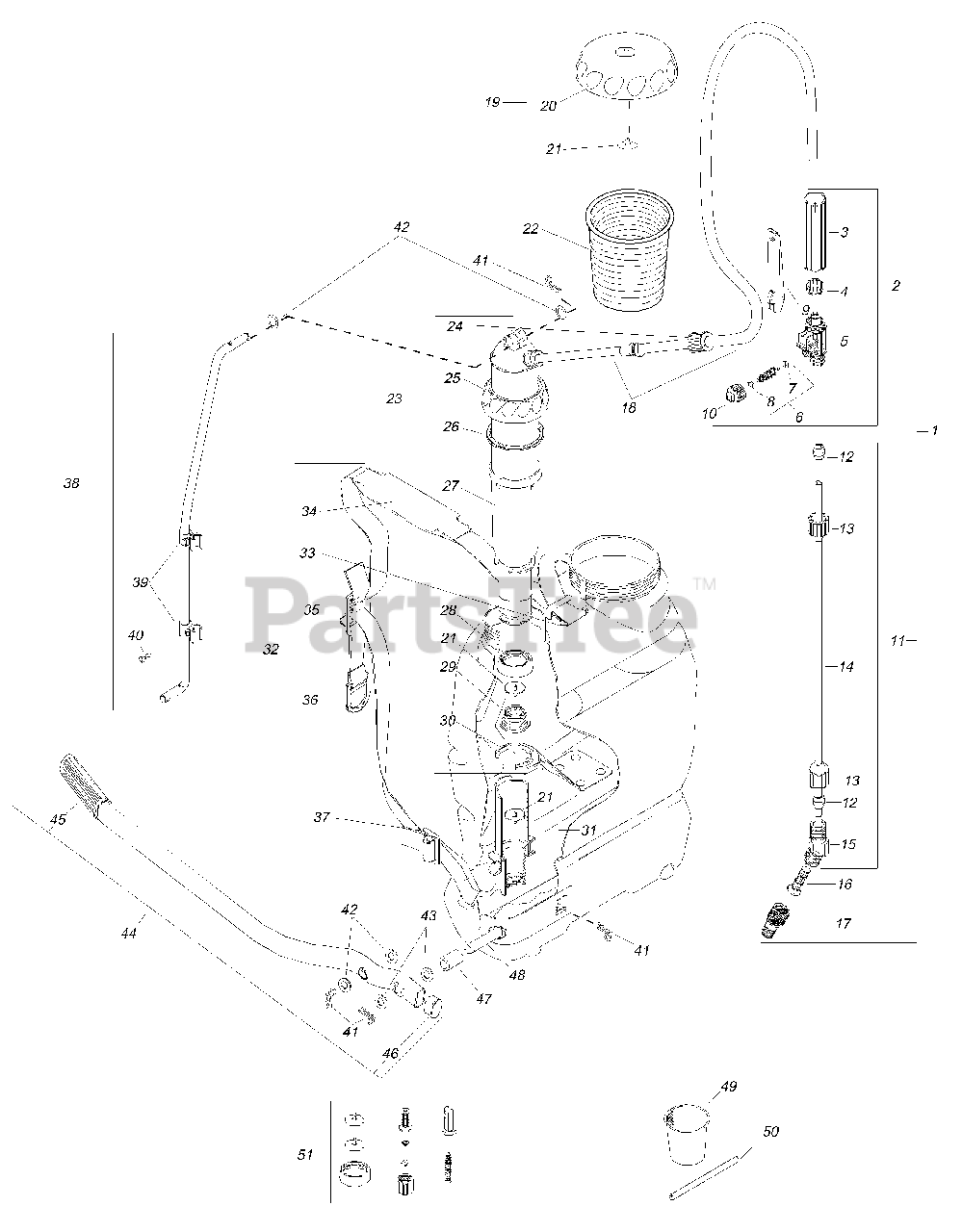

SP 300 - Shindaiwa Manual Sprayer, Backpack General Assembly (SP300 Beginning S/N: 913171J2) Parts Diagram

Manual Sprayer, Backpack

General Assembly (SP300 Beginning S/N: 913171J2) Parts Diagram

  • Title

1

Echo 568774

SPRAY WAND ASSY

$

$

Not available

2

Echo 568782

TRIGGER VALVE ASSY
(Superseded to 908889)

$28.99

$

In Stock, only 2 left!

0

3

Echo 909192

HANDLE, TRIGGER VALVE

$2.49

$

In Stock, only 3 left!

0

4

Echo 920470

LOCK

$0.99

$

In Stock, only 2 left!

0

5

Echo 909283

BODY, TRIGGER VALVE

$4.99

$

Usually ships in 2-4 days

0

6

Echo 105239

TRIGGER VALVE NEEDLE ASSY
(Superseded to 1230971)

$10.99

$

Usually ships in 2-4 days

0

7

Echo 300731

SEAL - LOWER

$2.49

$

Usually ships in 2-4 days

0

8

Echo 300764

SEAL - UPPER

$1.99

$

Usually ships in 2-4 days

0

9

Echo 568972

TRIGGER
(Superseded to 1220951)

$13.99

$

Usually ships in 2-4 days

0

10

Echo 996058

TRIGGER VALVE CAP ASSY

$1.99

$

In Stock, Qty 10

0

11

Echo 568873

SPRAY TUBE ASSY

$

$

Not available

12

Echo 909309

CONE PACKING
(Superseded to 635276)

$4.99

$

In Stock, only 1 left!

0

13

Echo 915744

SCREW
(Superseded to 1220969)

$1.99

$

In Stock, Qty 11

0

14

Echo 336263

SPRAY WAND TUBE
(Superseded to 568873)

$

$

Not available

15

Echo 635276

ELBOW

$4.99

$

In Stock, only 1 left!

0

16

Echo 730366

FILTER, NOZZLE
(Superseded to 592139)

$1.99

$

In Stock, Qty 20+

0

17

Echo 015024

ADJUSTABLE CONE NOZZLE

$

$

Not available

18

Echo 250928

HOSE/DIP TUBE ASSY
(Superseded to 048116)

$19.99

$

In Stock, only 3 left!

0

19

Echo 381202

LID ASSY
(Superseded to 965210)

$29.99

$

Usually ships in 2-4 days

0

20

Echo 381194

LID

$

$

Currently unavailable

21

Echo 964270

DIAPHRAGM VALVE, VITON(R)

$8.99

$

In Stock, only 1 left!

0

21

Echo 560573

VALVE, DIAPHRAGM
(Superseded to 1168542)

Note: OPTIONAL

$2.99

$

In Stock, only 4 left!

0

22

Echo 942920

STRAINER, DEBRIS
(Superseded to 1220919)

$7.49

$

Usually ships in 2-4 days

0

23

Echo 965202

CHAMBER ASSY

$107.99

$

Usually ships in 2-4 days

0

21

Echo 964270

DIAPHRAGM VALVE, VITON(R)

$8.99

$

In Stock, only 1 left!

0

21

Echo 560573

VALVE, DIAPHRAGM
(Superseded to 1168542)

Note: OPTIONAL

$2.99

$

In Stock, only 4 left!

0

24

Echo 942193

NUT - 20X1.5

$1.99

$

In Stock, only 4 left!

0

25

Echo 965335

PACKING NUT RING

$16.99

$

Usually ships in 2-4 days

0

26

Echo 965327

PACKING RING VITON(R)

$32.99

$

Usually ships in 2-4 days

0

27

Echo 965319

BODY, CHAMBER
(Superseded to Discontinued)

$

$

Not available

28

Echo 568535

PISTON CUP - 45 X 12

$17.99

$

In Stock, only 3 left!

0

28

Echo 214585

PISTON CUP SANTOPRENE(R)

Note: OPTIONAL

$1.99

$

Usually ships in 2-4 days

0

29

Echo 214577

PISTON CUP FASTENER
(Superseded to 630749)

$5.49

$

Usually ships in 2-4 days

0

30

Echo 214619

AGITATOR

$1.99

$

Usually ships in 2-4 days

0

31

Echo 965228

CYLINDER ASSY
(Superseded to Discontinued)

$

$

Not available

21

Echo 964270

DIAPHRAGM VALVE, VITON(R)

$8.99

$

In Stock, only 1 left!

0

21

Echo 560573

VALVE, DIAPHRAGM
(Superseded to 1168542)

Note: OPTIONAL

$2.99

$

In Stock, only 4 left!

0

32

Echo 965418

SHOULDER STRAP ASSY
(Superseded to 263392)

$52.99

$

Usually ships in 2-4 days

0

33

Echo 965368

SHOULDER STRAP RETAINING CLIP

$1.99

$

Usually ships in 2-4 days

0

34

Echo 965426

SEAL - UPPER -- 50X96X35
(Superseded to 838029)

$48.99

$

Usually ships in 2-4 days

0

35

Echo 120691

BUCKLE, STRAP
(Superseded to Discontinued)

$

$

Not available

36

Echo 965194

STRAP ASSY - LOWER

$6.49

$

Usually ships in 2-4 days

0

37

Echo 502757

BUCKLE, STRAP - LOWER

$1.49

$

Usually ships in 2-4 days

0

38

Echo 965244

CONNECTING ROD ASSY

$73.99

$

Usually ships in 2-4 days

0

39

Echo 838003

SPRAY WAND HOLDING CLIP

$4.99

$

Usually ships in 2-4 days

0

40

Echo 825497

SCREW - 3.5X16
(Superseded to 838003)

$4.99

$

Usually ships in 2-4 days

0

41

Echo 147256

RETAINING CLIP

$2.99

$

Usually ships in 2-4 days

0

42

Echo 609438

WASHER

$1.49

$

Usually ships in 2-4 days

0

43

Echo 965251

WASHER
(Superseded to 942102)

$4.99

$

Usually ships in 2-4 days

0

44

Echo 147264

PUMP LEVER ASSY

$39.99

$

Usually ships in 2-4 days

0

45

Echo 147231

GRIP
(Superseded to Discontinued)

$

$

Not available

46

Echo 147280

PLUG
(Superseded to Discontinued)

$

$

Not available

47

Echo 147223

BUSHING
(Superseded to Discontinued)

$

$

Not available

48

Echo 285593

PUMP LEVER SHAFT
(Superseded to Discontinued)

$

$

Not available

49

Echo 963959

CALIBRATED MEASURING CUP

$

$

Currently unavailable

50

Echo 147272

DIAPHRAGM INSTALLATION TOOL

$0.99

$

Usually ships in 2-4 days

0

51

Echo 251074

REPAIR AND NOZZLE KIT
(Superseded to 568816)

$

$

Not available
