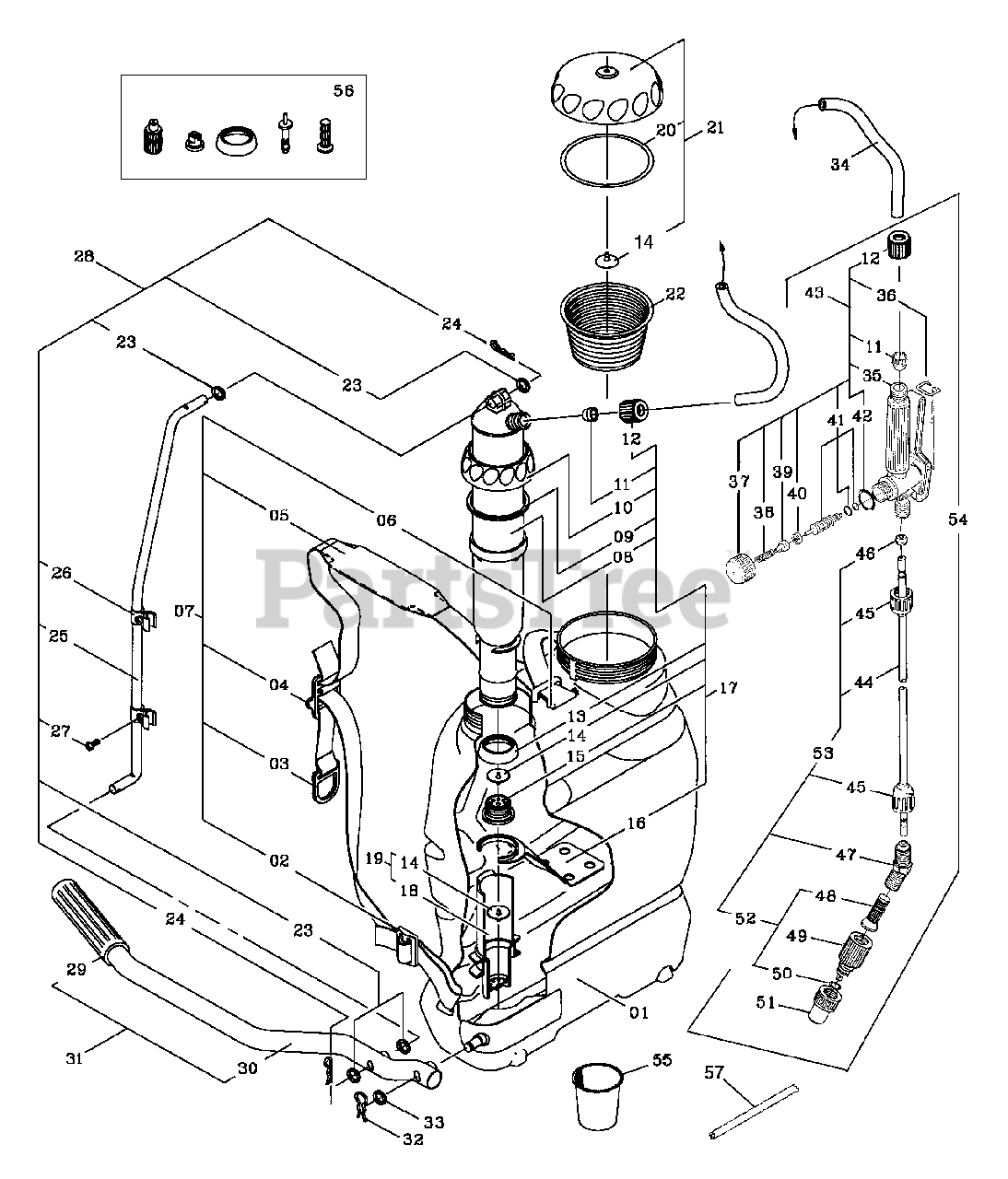

SP 300 - Shindaiwa Manual Sprayer, Backpack General Assembly (SP300 Through S/N: 913170H2) Parts Diagram

Manual Sprayer, Backpack

General Assembly (SP300 Through S/N: 913170H2) Parts Diagram

  • Title

1

Echo 965384

TANK-SP300
(Superseded to Discontinued)

$

$

Not available

2

Echo 502757

BUCKLE, STRAP - LOWER

$0.99

$

Usually ships in 2-4 days

0

3

Echo 965194

STRAP ASSY - LOWER

$5.49

$

Usually ships in 2-4 days

0

4

Echo 120691

BUCKLE, STRAP
(Superseded to Discontinued)

$

$

Not available

5

Echo 965426

SEAL - UPPER -- 50X96X35
(Superseded to 838029)

$48.99

$

In Stock, only 1 left!

0

6

Echo 965368

SHOULDER STRAP RETAINING CLIP

$1.99

$

Usually ships in 2-4 days

0

7

Echo 965418

SHOULDER STRAP ASSY
(Superseded to 263392)

$43.99

$

Usually ships in 2-4 days

0

8

Echo 965319

BODY, CHAMBER
(Superseded to Discontinued)

$

$

Not available

9

Echo 965317

GASKET, CHAMBER
(Superseded to 965327)

$27.99

$

Usually ships in 2-4 days

0

10

Echo 965335

PACKING NUT RING

$13.99

$

Usually ships in 2-4 days

0

11

Echo 661330

HOSE FERRULE

$0.99

$

Usually ships in 2-4 days

0

12

Echo 942193

NUT - 20X1.5

$1.99

$

In Stock, only 4 left!

0

13

Echo 568535

PISTON CUP - 45 X 12

$14.99

$

In Stock, only 3 left!

0

14

Echo 560573

VALVE, DIAPHRAGM
(Superseded to 1168542)

$2.49

$

In Stock, Qty 8

0

15

Echo 214577

PISTON CUP FASTENER
(Superseded to 630749)

$4.49

$

Usually ships in 2-4 days

0

16

Echo 214619

AGITATOR

$1.99

$

Usually ships in 2-4 days

0

17

Echo 965202

CHAMBER ASSY

$89.99

$

Usually ships in 2-4 days

0

18

Echo 965301

CYLINDER
(Superseded to 965228)

$

$

Not available

19

Echo 965228

CYLINDER ASSY
(Superseded to Discontinued)

$

$

Not available

20

Echo 965350

O-RING
(Superseded to 264242)

$5.49

$

Usually ships in 2-4 days

0

21

Echo 965210

TANK CAP WITH SEAL AND DIAPHRAGM

$24.99

$

Usually ships in 2-4 days

0

22

Echo 647123

STRAINER, DEBRIS
(Superseded to 942920)

$6.49

$

Usually ships in 2-4 days

0

23

Echo 609438

WASHER

$0.99

$

Usually ships in 2-4 days

0

24

Echo 942904

RETAINING CLIP

$0.99

$

Usually ships in 2-4 days

0

25

Echo 965293

PUMP LEVER CONNECTING ROD

$14.99

$

Usually ships in 2-4 days

0

26

Echo 838003

SPRAY WAND HOLDING CLIP

$3.99

$

Usually ships in 2-4 days

0

27

Echo 942425

SCREW - 3.5X16
(Superseded to 825497)

$3.99

$

Usually ships in 2-4 days

0

28

Echo 965244

CONNECTING ROD ASSY

$73.99

$

Usually ships in 2-4 days

0

29

Echo 002683

GRIP

$2.49

$

In Stock, Qty 5

0

30

Echo 965285

LEVER, PUMP
(Superseded to Discontinued)

$

$

Not available

31

Echo 965277

PUMP LEVER ASSY

$20.99

$

Usually ships in 2-4 days

0

32

Echo 965269

RETAINING CLIP

$1.99

$

Usually ships in 2-4 days

0

33

Echo 965251

WASHER
(Superseded to 942102)

$3.99

$

Usually ships in 2-4 days

0

34

Echo 635326

HOSE
(Superseded to 250928)

$14.99

$

In Stock, only 1 left!

0

35

Echo 229757

TRIGGER VALVE ASSY
(Superseded to 908889)

$23.99

$

In Stock, Qty 8

0

36

Echo 229773

LOCK, TRIGGER VALVE

$0.99

$

Usually ships in 2-4 days

0

37

Echo 229732

CAP, TRIGGER VALVE
(Superseded to 1168544)

$1.99

$

In Stock, only 4 left!

0

38

Echo 904284

SPRING
(Superseded to 105239)

$8.99

$

Usually ships in 2-4 days

0

39

Echo 433730

VALVE SEAT BASE

$0.99

$

In Stock, Qty 10

0

40

Echo 351536

SEAT, VALVE

$1.99

$

In Stock, Qty 5

0

41

Echo 229740

TRIGGER NEEDLE VALVE ASSY

$6.49

$

In Stock, only 1 left!

0

42

Echo 229781

O-RING ORI - 019

$1.99

$

In Stock, Qty 5

0

43

Echo 635847

TRIGGER VALVE ASSY
(Superseded to 908889)

$23.99

$

In Stock, Qty 8

0

44

Echo 336263

SPRAY WAND TUBE
(Superseded to 568873)

$

$

Not available

45

Echo 915744

SCREW
(Superseded to 1220969)

$1.99

$

In Stock, Qty 11

0

46

Echo 909309

CONE PACKING
(Superseded to 635276)

$3.99

$

In Stock, only 4 left!

0

47

Echo 560649

SPRAY WAND NOZZLE ELBOW
(Superseded to 635276)

$3.99

$

In Stock, only 4 left!

0

48

Echo 730366

FILTER, NOZZLE
(Superseded to 592139)

$1.49

$

In Stock, Qty 20+

0

49

Echo 009456

NOZZLE BODY
(Superseded to 015024)

$3.99

$

Usually ships in 2-4 days

0

51

Echo 009464

NOZZLE CAP - RED
(Superseded to 015024)

$3.99

$

Usually ships in 2-4 days

0

52

Echo 015024

ADJUSTABLE CONE NOZZLE

$3.99

$

Usually ships in 2-4 days

0

53

Echo 965392

SPRAY WAND TUBE ASSY
(Superseded to 100131)

$23.99

$

In Stock, only 1 left!

0

54

Echo 965400

SPRAY WAND ASSY
(Superseded to 915769)

$

$

Not available

55

Echo 837344

CALIBRATED MEASURING CUP

$

$

Not available

56

Echo 838169

REPAIR KIT
(Superseded to 055673)

$

$

Not available

57

Echo 147272

DIAPHRAGM INSTALLATION TOOL

$0.99

$

Usually ships in 2-4 days

0
