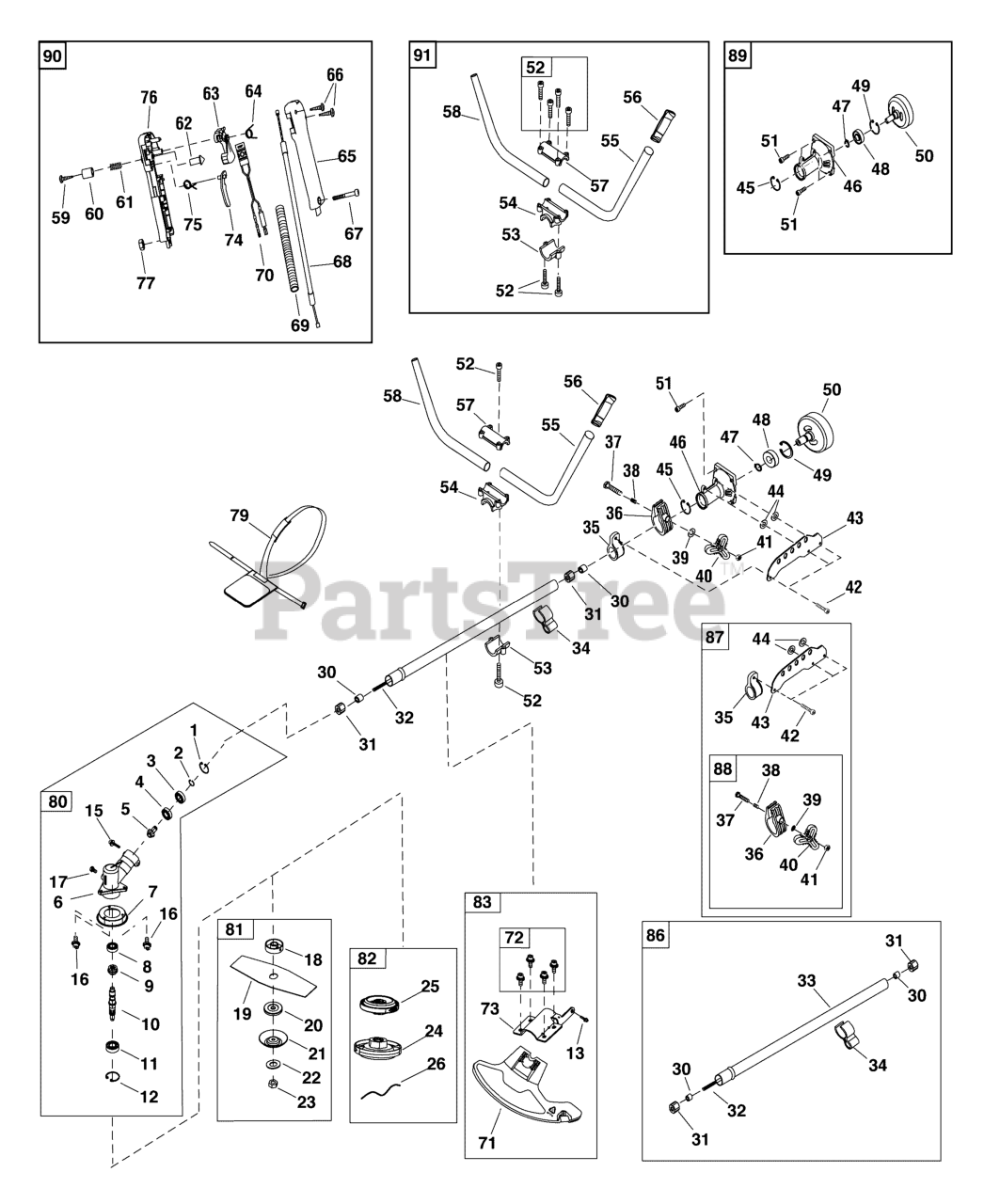

SP 33 (1697286-A) - Briggs & Stratton Brush Cutter Shaft Group Parts Diagram

Brush Cutter

Shaft Group Parts Diagram

  • Title

1

RING, Stop, 18

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

2

RING, Stop, 12

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

3

BEARING, 6001-2RS/P6

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

4

BEARING, 6001/P6

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

5

Murray 702423

PINION

$15.99

$

Usually ships in 2-12 days

0

6

GEAR BOX

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

7

Murray 700769

COVER, Blade

$6.49

$

Usually ships in 2-12 days

0

8

BEARING, 6000/P6

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

9

Murray 702424

GEAR

$16.99

$

Usually ships in 2-12 days

0

10

SPLINE SHAFT

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

11

Bearing, 6202-2RS/P6

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

12

RING, Stop, Dia 35

Note: (Not a serviceable part. Order Kit Ref. No 80)

$

$

Not available

13

* BOLT, M5 X 14

$

$

Not available

15

* BOLT, M6 x 20

$

$

Not available

16

* BOLT, M5 x 10

$

$

Not available

17

Murray 701971

BOLT, M8 x 12

$3.49

$

Usually ships in 2-12 days

0

18

Murray 700772

GASKET, Spline

$2.99

$

Usually ships in 2-12 days

0

19

Murray 84007144

BLADE, Two Teeth

$12.99

$

Usually ships in 2-12 days

0

20

Murray 700841

HOLDER

$9.99

$

Usually ships in 2-12 days

0

21

Murray 701901

PROTECTOR, Blade

$6.49

$

Usually ships in 2-12 days

0

22

Murray 700773

WASHER, Wave, Dia 10

$3.49

$

Usually ships in 2-12 days

0

23

Murray 700397

NUT

$3.99

$

Usually ships in 2-12 days

0

24

Murray TR00001S

CAST HEAD, Straight Shaft
(Superseded to 706436)

$19.99

$

Usually ships in 2-12 days

0

25

Murray 84007145

COVER, Alloy Head

$7.99

$

Usually ships in 2-12 days

0

26

Murray 84007146

TRIMMER LINE (10 Pack)

$5.49

$

Usually ships in 2-12 days

0

30

Murray 700407

BEARING, Oil

$3.49

$

Usually ships in 2-12 days

0

31

Murray 700406

RUBBER COVER, Bearing Oil

$4.49

$

Usually ships in 2-12 days

0

32

Murray 701890

DRIVE SHAFT

$

$

Currently unavailable

33

Murray 84007147

SHAFT, Straight

$49.99

$

Usually ships in 2-12 days

0

34

Murray 701906

RETAINER, Wire

$

$

Currently unavailable

35

Murray 700420

RING, Hang

$5.49

$

Usually ships in 2-12 days

0

36

Murray 701909

RING FOR LIMIT

$

$

Currently unavailable

37

* BOLT, Hex Head

$

$

Not available

38

SPRING

Note: (Not a serviceable part. Order Kit Ref. No 88)

$

$

Not available

39

* WASHER, Flat, Dia 6

$

$

Not available

40

Murray 701899

HANDLE, Self Lock

$91.99

$

Usually ships in 3-10 days

0

41

* NUT, Hex Head

$

$

Not available

42

* BOLT, M6 x 20

$

$

Not available

43

Murray 84007148

HANG HANDLE

$12.99

$

Usually ships in 2-12 days

0

44

Murray 701908

SPACER, Hang Handle

$

$

Currently unavailable

45

RING, Stop, Dia 37

Note: (Not a serviceable part. Order Kit Ref. No 89)

$

$

Not available

46

CASE, Clutch

Note: (Not a serviceable part. Order Kit Ref. No 89)

$

$

Not available

47

RING, Stop, Dia 15

Note: (Not a serviceable part. Order Kit Ref. No 89)

$

$

Not available

48

BEARING, 6202-2RZ/P6

Note: (Not a serviceable part. Order Kit Ref. No 89)

$

$

Not available

49

RING, Stop, Dia 35

Note: (Not a serviceable part. Order Kit Ref. No 89)

$

$

Not available

50

Murray 701471

CLUTCH DRUM, Complete

$21.99

$

Usually ships in 2-12 days

0

51

* BOLT, M6 x 25

$

$

Not available

52

* BOLT, M6 x 25

$

$

Not available

53

Murray 84007149

BRACKET, Shaft, Lower

$4.99

$

Usually ships in 2-12 days

0

54

Murray 84007150

BRACKET, Shaft, Upper

$7.49

$

Usually ships in 2-12 days

0

55

Murray 84007151

HANDLE, Left

$17.99

$

Usually ships in 2-12 days

0

56

Murray 80090624

GRIP, Handle

$

$

Currently unavailable

57

Murray 84007153

HANDLE, Mounting, Upper

$6.49

$

Usually ships in 2-12 days

0

58

Murray 84007154

HANDLE, Right

$10.99

$

Usually ships in 2-12 days

0

59

Murray 84007155

SCREW, ST 2.9 x 13

$7.49

$

Usually ships in 2-12 days

0

60

Murray 84007190

BUTTON, Speed Lock

$2.49

$

Usually ships in 2-12 days

0

61

Murray 84007157

SPRING, Speed Lock

$2.99

$

Usually ships in 2-12 days

0

62

Murray 80090646

PIN, Clock

$

$

Currently unavailable

63

Murray 84007191

TRIGGER, Presence

$2.99

$

Usually ships in 2-12 days

0

64

Murray 84007160

SPRING

$2.49

$

Usually ships in 2-12 days

0

65

Murray 84007161

COVER, Throttle

$7.99

$

Usually ships in 2-12 days

0

66

Murray 84007162

SCREW, ST 2.9 x 18

$6.49

$

Usually ships in 2-12 days

0

67

* BOLT M5x30

$

$

Not available

68

Murray 700781

CABLE, Comp.

$8.99

$

Usually ships in 2-12 days

0

69

Murray 84007163

COVER, Cable

$

$

Currently unavailable

70

Murray 84007192

STOP BUTTON ASSEMBLY

$4.99

$

Usually ships in 2-12 days

0

71

Murray 84007165

SAFETY GUARD

$60.99

$

Usually ships in 2-12 days

0

72

* BOLT M5x20

$

$

Not available

73

Murray 84007166

HOLDER, Safety

$3.99

$

Usually ships in 2-12 days

0

74

Murray 84007193

TRIGGER, Throttle

$4.49

$

Usually ships in 2-12 days

0

75

Murray 84007168

SPRING

$3.49

$

Usually ships in 2-12 days

0

76

Murray 84007169

COVER, Throttle

$13.99

$

Usually ships in 2-12 days

0

77

* NUT, M5

$

$

Not available

79

Murray 701900

BELT

$27.99

$

Usually ships in 2-12 days

0

80

Murray 84007170

KIT, Gear Box Assembly

$51.99

$

Usually ships in 2-12 days

0

81

Murray 84007171

KIT, Blade Assembly

$32.99

$

Usually ships in 2-12 days

0

82

Murray 84007172

KIT, Alloy Head

$32.99

$

Usually ships in 2-12 days

0

83

Murray 84007173

KIT, Safety Guard

$33.99

$

Usually ships in 2-12 days

0

86

Murray 84007174

KIT, Drive Shaft Assembly, SP

$55.99

$

Usually ships in 2-12 days

0

87

Murray 84007175

KIT, Hang Handle Assembly

$24.99

$

Usually ships in 2-12 days

0

88

Murray 701930

KIT, Limit Ring Assembly

$12.99

$

Usually ships in 2-12 days

0

89

Murray 701931

KIT, Clutch Assembly

$56.99

$

Usually ships in 2-12 days

0

90

Murray 84007194

KIT, Throttle Assembly, B&S SP

$31.99

$

Usually ships in 2-12 days

0

91

Murray 84007177

KIT, Handle Assembly

$49.99

$

Usually ships in 2-12 days

0
