SP 33 HW (12AE76M8897) - Columbia 33" Walk-Behind Mower (2018) Wheels Parts Diagram

33" Walk-Behind Mower

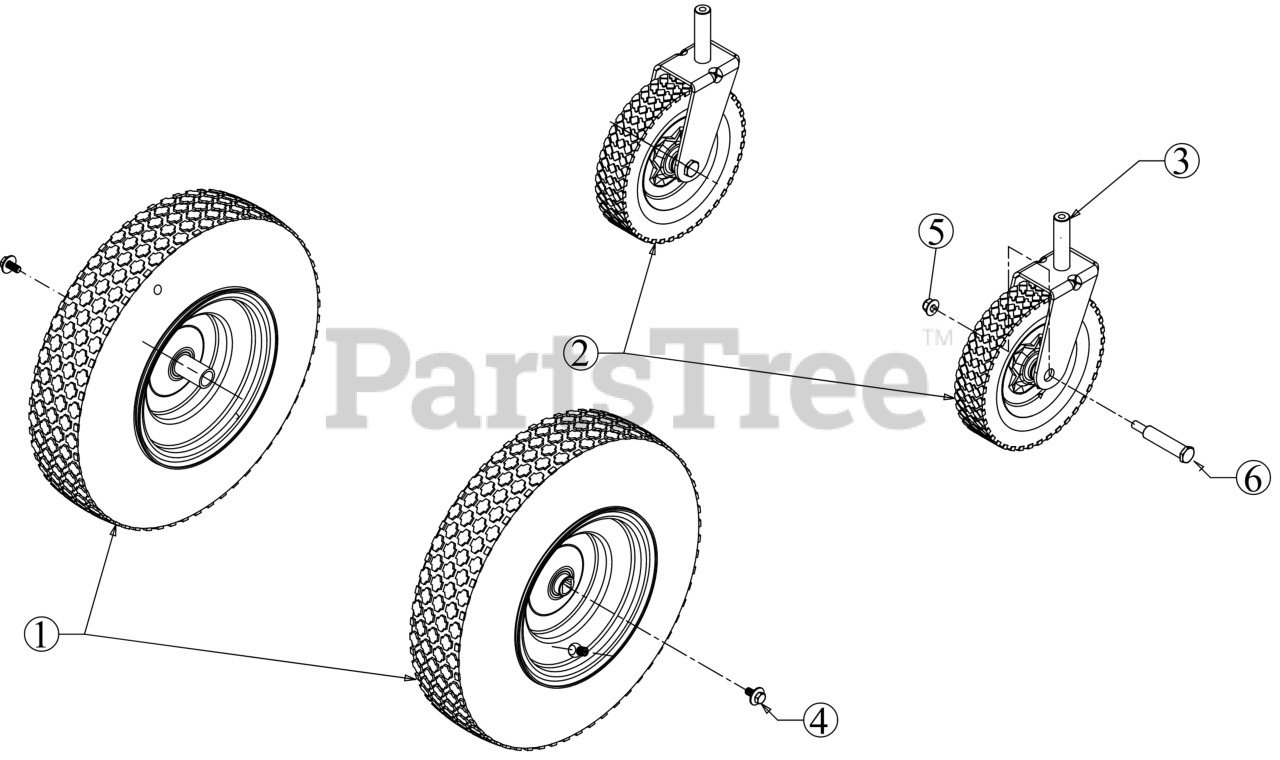

Wheels Parts Diagram

  • Title

1

MTD 634-04285-0911

WHEEL ASSEMBLY (16 x 4 x 8)

$341.99

$

Usually ships in 3-6 days

0

1

MTD 634-04173

RIM ASSEMBLY (8.0X3.75) W/VALVE

Note: (Choose Color When Ordering)

Variations

MTD 634-04173-0499

Rim Assembly, 8.0 X 3.75 with Valve - CUB BEIGE (0499)

$83.99

$

Usually ships in 3-6 days

0

MTD 634-04173-0662

RIM ASM-8.0X3.75 W - OYSTER GRAY (0662)

$83.99

$

Usually ships in 3-6 days

0

MTD 634-04173-0674

RIM ASM-8.0X3.75 W - YARDMAN YELLOW (0674)

$77.99

$

Usually ships in 3-6 days

0

MTD 634-04173-4042

RIM ASM-8.0X3.75 W - CRAFTSMAN GRAY (4042)

$62.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

1

MTD 634-04140

RIM ASSEMBLY (8 x 3.75 x .75)
(Superseded to 634-04173-0662)

Note: (Choose Color When Ordering)

Variations

MTD 634-04140-0662

RIM ASM-8.0X3.75 W - OYSTER GRAY (0662)

$83.99

$

Usually ships in 3-6 days

0

$83.99

$

Usually ships in 3-6 days

0

1

MTD 934-0255

TUBELESS VALVE

$4.49

$

In Stock, Qty 20+

0

1

MTD 734-04237

TIRE 4.80 x 8

$122.99

$

Usually ships in 3-6 days

0

2

MTD 941-0706

FLANGE BUSHING

$8.49

$

In Stock, Qty 20+

0

2

MTD 734-04243

CASTER WHEEL

$57.99

$

In Stock, Qty 9

0

3

MTD 687-02263

CASTER WHEEL YOKE

Note: (Choose Color When Ordering)

Variations

MTD 687-02263-0606

Caster Wheel Yoke, Orange - MAJESTIC ORANGE (0606)

$83.99

$

Usually ships in 3-6 days

0

MTD 687-02263-0716

Caster Wheel Yoke, Yellow - CUB YELLOW-99 (0716)

$83.99

$

In Stock, Qty 8

0

MTD 687-02263-0721

YOKE-CASTER WHEEL - SEARS RED (0721)

$83.99

$

Usually ships in 3-6 days

0

MTD 687-02263-4021

Caster Wheel Yoke, Yellow - CUB YELLOW 2 (4021)

$83.99

$

In Stock, Qty 8

0

MTD 687-02263-4044

YOKE-CASTER WHEEL - CRAFTSMAN RED (4044)

$83.99

$

Usually ships in 3-6 days

0

MTD 687-02263-0637

Caster Wheel Yoke, Black - POWDER BLACK (0637)

$83.99

$

In Stock, only 2 left!

0

MTD 687-02263-0638

YOKE-CASTER WHEEL - MTD/TROY-BILT RED (0638)

$83.99

$

Usually ships in 3-6 days

0

MTD 687-02263-4033

Caster Wheel Yoke, Red - FLINT MICA (4033)

$83.99

$

Usually ships in 3-6 days

0

MTD 687-02263-0691

YOKE-CASTER WHEEL - BLACK JACK (0691)

$83.99

$

Usually ships in 3-6 days

0

MTD 687-02263-4015

YOKE-CASTER WHEEL - FIRE RED (4015)

$83.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

4

MTD 710-05339A

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

6

MTD 738-04216A

SHOULDER SCREW:.625 x 2.515 x 1.00

$8.49

$

In Stock, Qty 20+

0
