SP 33-W (866014) - Briggs & Stratton Brush Cutter (2010) Engine Group - SP33W (702078) Parts Diagram

Brush Cutter

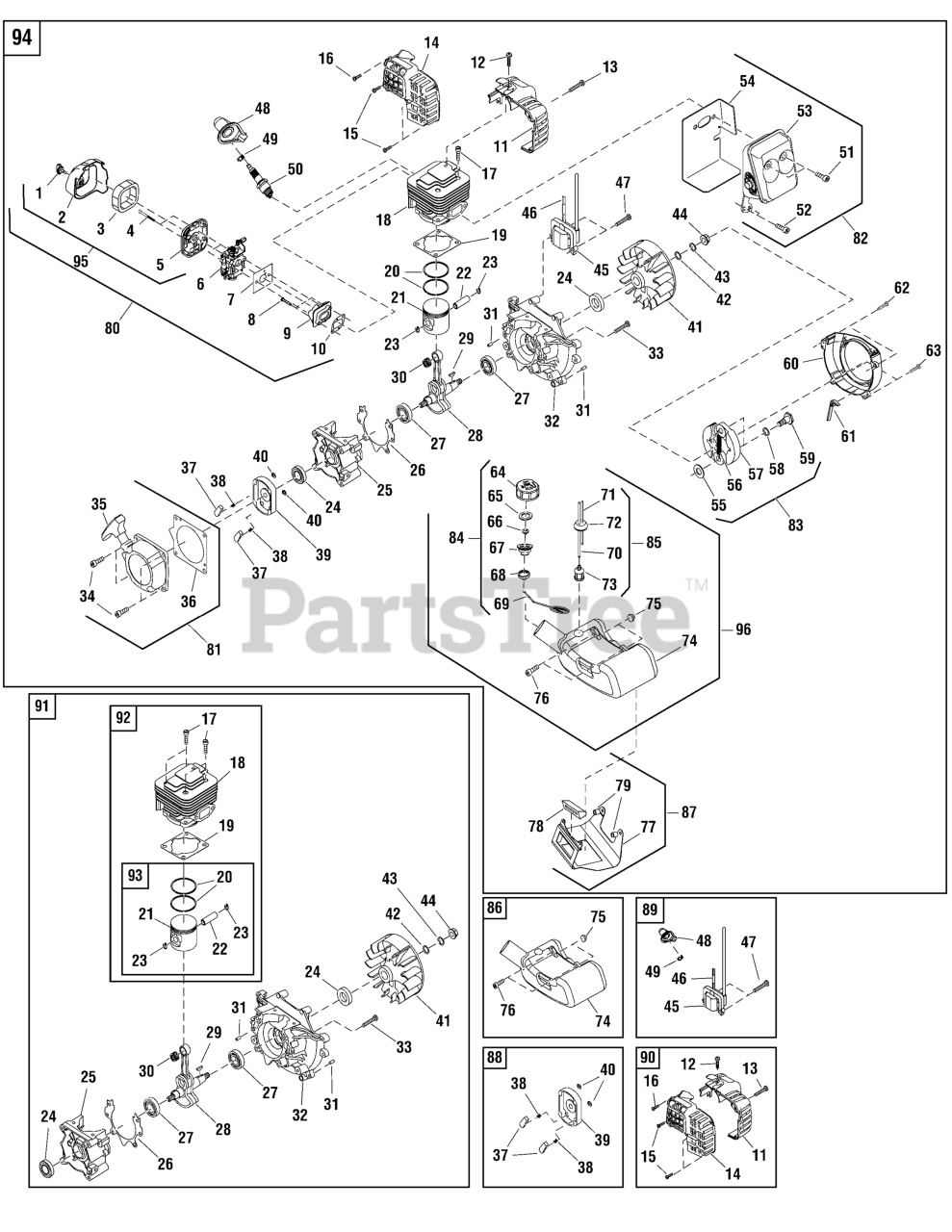

Engine Group - SP33W (702078) Parts Diagram

  • Title

1

Murray 700804

SCREW

$4.99

$

Usually ships in 2-12 days

0

2

Murray 700805

COVER, Cleaner, Outer

$9.49

$

Usually ships in 2-12 days

0

3

Murray 700317

FILTER

$2.49

$

Usually ships in 2-12 days

0

4

BOLT, M5 x 55

Note: (Not a serviceable part. Order Kit Ref. No. 80)

$

$

Not available

5

Murray 702081

COVER, Cleaner, Inner

$6.49

$

Usually ships in 2-12 days

0

6

Murray 700808

CARBURETOR

$178.99

$

Usually ships in 2-12 days

0

7

Murray 700327

GASKET, Carburetor

$3.49

$

Usually ships in 2-12 days

0

8

BOLT, M5 x 20

Note: (Not a serviceable part. Order Kit Ref. No. 80)

$

$

Not available

9

Murray 701910

ADMITTING PIPE

$7.99

$

Usually ships in 2-12 days

0

10

Murray 700325

GASKET, Admitting Pipe

$3.49

$

Usually ships in 2-12 days

0

11

Murray 700762

SHROUD, Front

$21.99

$

Usually ships in 2-12 days

0

12

BOLT, M5 x 16

Note: (Not a serviceable part. Order Kit Ref. No. 90)

$

$

Not available

13

BOLT, M5 x 12

Note: (Not a serviceable part. Order Kit Ref. No. 90)

$

$

Not available

14

Murray 700812

SHROUD, Rear

$27.99

$

Usually ships in 2-12 days

0

15

Murray 700764

SCREW, Self Tapping, 5×20

$3.49

$

Usually ships in 2-12 days

0

16

Murray 700765

SCREW, Self Tapping, 4.2 × 30

$2.99

$

Usually ships in 2-12 days

0

17

Murray 700391

BOLT, M5 x 18

$2.99

$

Usually ships in 2-12 days

0

18

Murray 700814

CYLINDER

$19.99

$

Usually ships in 2-12 days

0

19

Murray 700334

GASKET, Cylinder

$4.99

$

Usually ships in 2-12 days

0

20

Murray 700338

RING, Piston

$5.49

$

Usually ships in 2-12 days

0

21

Murray 700339

PISTON

$9.49

$

Usually ships in 2-12 days

0

22

Murray 700337

PIN, Piston

$4.49

$

Usually ships in 2-12 days

0

23

Murray 700314

PIN RETAIN RING

$3.49

$

Usually ships in 2-12 days

0

24

Murray 700345

OIL SEAL, 11.7 × 22 × 7

$4.49

$

Usually ships in 2-12 days

0

25

Murray 700819

CRANK CASE, Rear

$17.99

$

Usually ships in 2-12 days

0

26

Murray 700347

GASKET, Crank Case

$4.99

$

Usually ships in 2-12 days

0

27

Murray 700346

BEARING, 6201/P6

$5.49

$

Usually ships in 2-12 days

0

28

Murray 700817

CRANK SHAFT ASSEMBLY

$59.99

$

Usually ships in 2-12 days

0

29

Murray 700341

KEY, 3 × 5 × 13

$3.49

$

Usually ships in 2-12 days

0

30

Murray 700816

NEEDLE BEARING

$7.49

$

Usually ships in 2-12 days

0

31

Murray 700386

PIN, Cylindrical, B4 × 10

$2.99

$

Usually ships in 2-12 days

0

32

Murray 700820

CRANK CASE, Front

$25.99

$

Usually ships in 2-12 days

0

33

BOLT, M5 x 30

Note: (Not a serviceable part. Order Kit Ref. No. 91)

$

$

Not available

34

BOLT, M5 x 20

Note: (Not a serviceable part. Order Kit Ref. No. 81)

$

$

Not available

35

Murray 700809

STARTER

$30.99

$

Usually ships in 2-12 days

0

36

Murray 700329

PAD, Starter

$4.99

$

Usually ships in 2-12 days

0

37

STARTER CLINCH

Note: (Not a serviceable part. Order Kit Ref. No. 88)

$

$

Not available

38

SPRING, Starter

Note: (Not a serviceable part. Order Kit Ref. No. 88)

$

$

Not available

39

STARTER BOX

Note: (Not a serviceable part. Order Kit Ref. No. 88)

$

$

Not available

40

RING, Retainer, 4

Note: (Not a serviceable part. Order Kit Ref. No. 88)

$

$

Not available

41

Murray 701893

FLY WHEEL

$32.99

$

Usually ships in 2-12 days

0

42

Murray 700380

WASHER, Flat, 8

$2.99

$

Usually ships in 2-12 days

0

43

Murray 700379

WASHER, Spring, 8

$2.99

$

Usually ships in 2-12 days

0

44

Murray 700378

NUT, M8

$2.99

$

Usually ships in 2-12 days

0

45

Murray 700353

MAGNETO COIL

$54.99

$

Usually ships in 2-12 days

0

46

Murray 700827

CORD, Complete

$5.49

$

Usually ships in 2-12 days

0

47

BOLT, M5 x 20

Note: (Not a serviceable part. Order Kit Ref. No. 89)

$

$

Not available

48

Murray 700352

BOOT, Spark Plug

$6.99

$

Usually ships in 2-12 days

0

49

Murray 700351

CLIP, Spark Plug

$3.99

$

Usually ships in 2-12 days

0

50

Murray 700360

SPARK PLUG

$34.99

$

Usually ships in 2-12 days

0

51

BOLT, M5 x 55-10.9

Note: (Not a serviceable part. Order Kit Ref. No. 89)

$

$

Not available

52

BOLT, M5 x 12

Note: (Not a serviceable part. Order Kit Ref. No. 89)

$

$

Not available

53

Murray 700826

MUFFLER

$17.99

$

Usually ships in 2-12 days

0

54

Murray 700825

GASKET, Muffler

$14.99

$

Usually ships in 2-12 days

0

55

Murray 700383

WASHER, B

$3.49

$

Usually ships in 2-12 days

0

56

Murray 701897

SPRING, Clutch

$3.99

$

Usually ships in 2-12 days

0

57

Murray 700365

EXPANDER, Complete

$7.99

$

Usually ships in 2-12 days

0

58

Murray 700382

WASHER, Wave

$3.49

$

Usually ships in 2-12 days

0

59

Murray 700767

SCREW SHAFT

$4.99

$

Usually ships in 2-12 days

0

60

Murray 700828

COVER, Fan

$22.99

$

Usually ships in 2-12 days

0

61

Murray 700362

FLASH PAN

$3.49

$

Usually ships in 2-12 days

0

62

BOLT, M5 x 20

Note: (Not a serviceable part. Order Kit Ref. No. 91)

$

$

Not available

63

BOLT, M5 x 30

Note: (Not a serviceable part. Order Kit Ref. No. 91)

$

$

Not available

64

LID, Fuel Tank

Note: (Not a serviceable part. Order Kit Ref. No. 84)

$

$

Not available

65

GASKET

Note: (Not a serviceable part. Order Kit Ref. No. 84)

$

$

Not available

66

INLET

Note: (Not a serviceable part. Order Kit Ref. No. 84)

$

$

Not available

67

LID, Inner, Fuel Tank

Note: (Not a serviceable part. Order Kit Ref. No. 84)

$

$

Not available

68

COVER, End

Note: (Not a serviceable part. Order Kit Ref. No. 84)

$

$

Not available

69

CHAIN

Note: (Not a serviceable part. Order Kit Ref. No. 84)

$

$

Not available

70

PIPE, Fuel

Note: (Not a serviceable part. Order Kit Ref. No. 85)

$

$

Not available

71

PIPE, Soft PVC

Note: (Not a serviceable part. Order Kit Ref. No. 85)

$

$

Not available

72

PLUG, Fuel Line

Note: (Not a serviceable part. Order Kit Ref. No. 85)

$

$

Not available

73

Murray 701666

FILTER, Fuel

$5.49

$

Usually ships in 2-12 days

0

74

Murray 700831

FUEL TANK

$28.99

$

Usually ships in 2-12 days

0

75

Murray 700388

PLUG, Rubber

$3.49

$

Usually ships in 2-12 days

0

76

BOLT, M5 x 16

Note: (Not a serviceable part. Order Kit Ref. No. 86)

$

$

Not available

77

Murray 700370

BRACKET, Tank

$20.99

$

Usually ships in 2-12 days

0

78

Murray 700390

COVER, Rubber

$3.49

$

Usually ships in 2-12 days

0

79

Murray 700389

PAD, Bracket

$4.49

$

Usually ships in 2-12 days

0

80

Murray 702080

KIT, Air Cleaner & Carburetor

Note: (Includes Ref. Nos. 1, 2, 3, 4, 5, 6, 7, 8 ,9 & 10)

$220.99

$

Usually ships in 2-12 days

0

81

Murray 701912

KIT, Starter Assembly

Note: (Includes Ref. Nos. 34, 35 & 36)

$32.99

$

Usually ships in 2-12 days

0

82

Murray 701913

KIT, Muffler Assembly

Note: (Includes Ref. Nos. 51, 52, 53 & 54)

$31.99

$

Usually ships in 2-12 days

0

83

Murray 701916

KIT, Expander Assembly

Note: (Includes Ref. Nos. 55, 56, 57, 58 & 59)

$21.99

$

Usually ships in 2-12 days

0

84

Murray 701467

LID, Fuel Tank, Complete

Note: (Includes Ref. Nos. 64, 65, 66, 67, 68 & 69)

$5.99

$

Usually ships in 2-12 days

0

85

Murray 701915

KIT, Fuel Line Assembly

Note: (Includes Ref. Nos. 70, 71, 72 & 73)

$17.99

$

Usually ships in 2-12 days

0

86

Murray 701917

KIT, Fuel Tank Assembly

Note: (Includes Ref. Nos. 74, 75 & 76)

$31.99

$

Usually ships in 2-12 days

0

87

Murray 701918

KIT, Tank Bracket Assembly

Note: (Includes Ref. Nos. 77, 78 & 79)

$24.99

$

Usually ships in 2-12 days

0

88

Murray 700330

START REEL, Complete

Note: (Includes Ref. Nos. 37, 38, 39 & 40)

$6.49

$

Usually ships in 2-12 days

0

89

Murray 701919

KIT, Magneto Assembly

Note: (Includes Ref. Nos. 45, 46, 47, 48 & 49)

$65.99

$

Usually ships in 2-12 days

0

90

Murray 701920

KIT, Shroud Assembly

Note: (Includes Ref. Nos. 11, 12, 13, 14, 15 & 16)

$42.99

$

Usually ships in 2-12 days

0

91

Murray 701921

KIT, Cylinder Assembly

Note: (Includes Ref. Nos. 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 41, 42, 43, 44 & 92)

$241.99

$

Usually ships in 2-12 days

0

92

Murray 702024

KIT, Cylinder Head Group

Note: (Includes Ref. Nos. 17, 18, 19 & 93)

$50.99

$

Usually ships in 2-12 days

0

93

Murray 702025

KIT, Piston

Note: (Includes Ref. Nos. 20, 21, 22 & 23)

$19.99

$

Usually ships in 2-12 days

0

94

Murray 702078

ENGINE ASSEMBLY, Complete

$514.99

$

Usually ships in 2-12 days

0

95

Murray 702309

KIT, Air Cleaner

Note: (Includes Ref. Nos. 1, 2, 3, 4 & 5)

$14.99

$

Usually ships in 2-12 days

0

96

Murray 702310

KIT, Fuel Tank & Cap

Note: (Includes Ref. Nos. 84, 85 & 86)

$35.99

$

Usually ships in 2-12 days

0
