SP 360 (80905) - Snapper 36" Pro Mower Deck Assembly 36" MOWER DECK ASSEMBLY (Fixed Height) Parts Diagram

36" Pro Mower Deck Assembly

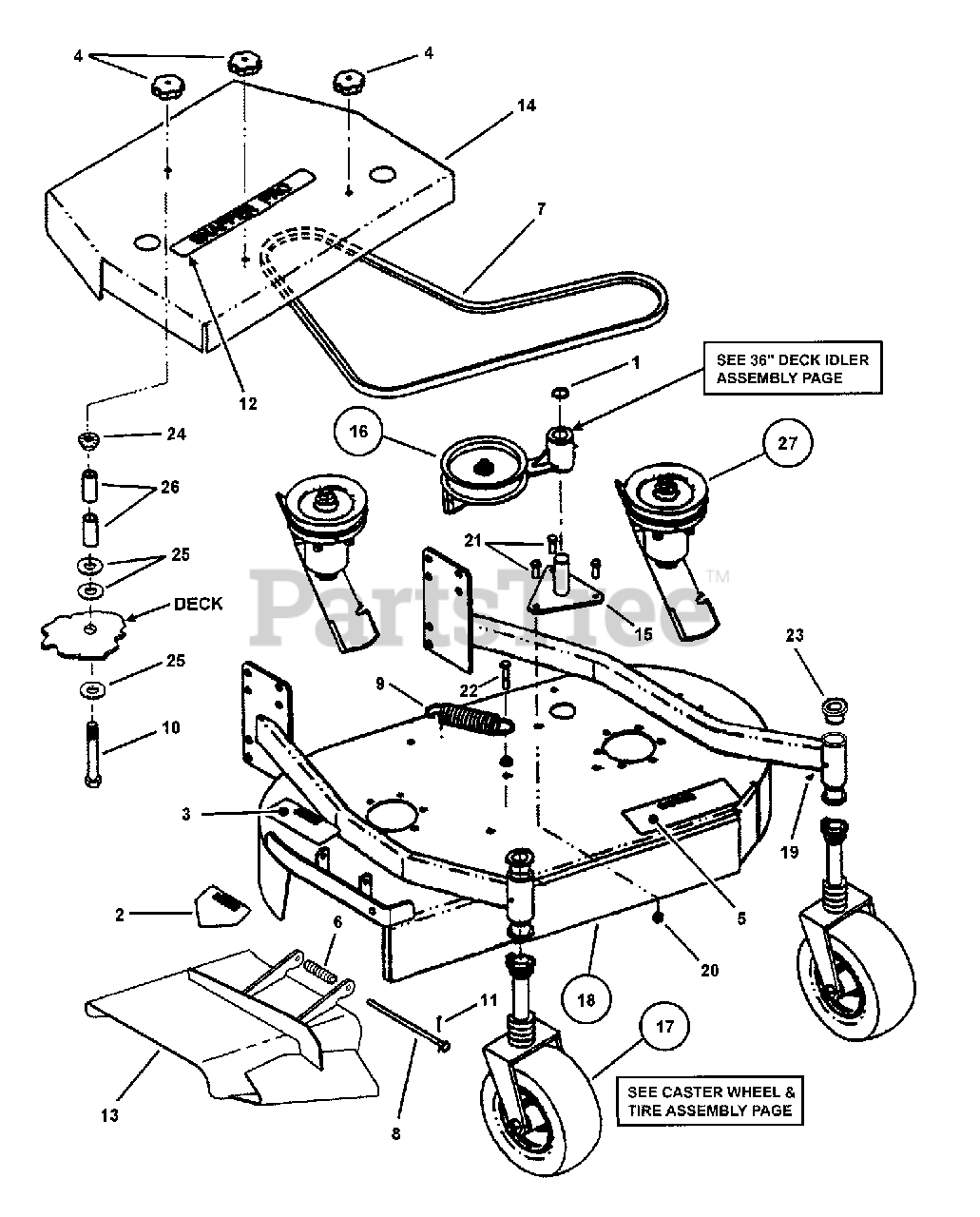

36" MOWER DECK ASSEMBLY (Fixed Height) Parts Diagram

  • Title

1

Snapper 7012709

RING, 1" External Retaining
(Superseded to 703993)

$3.49

$

In Stock, only 2 left!

0

2

Snapper 7013010

DECAL, Warning (CPSC Cut Finger)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 20+

0

3

Snapper 7073647

DECAL, Danger, Keep Hands and Feet Away
(Superseded to 7073647YP)

$7.99

$

Usually ships in 2-12 days

0

4

Snapper 7023735

KNOB, Hood (5/16-18 thread)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7024156

DECAL, Caution- Operator Instruction
(Superseded to 7073647YP)

$7.99

$

Usually ships in 2-12 days

0

6

Snapper 7027950

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

7

Snapper 7035710

* V-BELT, 36" Deck Drive (Nom. Effective Length: 84.80")
(Superseded to 7035710YP)

$

$

Not available

8

Snapper 7029277

HINGE PIN, Chute
(Superseded to 7029277YP)

$40.99

$

In Stock, only 2 left!

0

9

Snapper 7029278

SPRING, Idler
(Superseded to 7029278YP)

$14.99

$

In Stock, only 1 left!

0

10

Snapper 7076940

SCREW, 5/16-18 x 4-1/2" Hex Head Cap, GR 5
(Superseded to 7076940YP)

$5.99

$

In Stock, only 2 left!

0

11

Snapper 7091313

COTTER PIN, 3/32 x 1"
(Superseded to 704058)

$3.49

$

In Stock, only 1 left!

0

12

Snapper 7046580

DECAL, SNAPPER Pro w/Trademark

$

$

Currently unavailable

13

Snapper 7058871

DEFLECTOR, 36" ANSI Compliant (Weldment)
(Superseded to 7058871YP)

$112.99

$

Usually ships in 2-12 days

0

14

Snapper 7034963

COVER, 36"

$

$

Not available

15

Snapper 7041295

PIVOT, Idler Arm (Weldment)
(Superseded to 7041295YP)

$44.99

$

Usually ships in 2-12 days

0

16

Snapper 7054018

ASSEMBLY, Idler Arm, 36"
(Superseded to 7054018YP)

$170.99

$

Usually ships in 2-12 days

0

17

Snapper 7057736

ASSEMBLY, Caster Red w/Gray Wheel

$

$

Currently unavailable

18

Snapper 7054021

ASSEMBLY, 36" Deck, Fixed Height

Note: Deck weldment (7044665) plus 4 bushings (7023556)

$

$

Currently unavailable

19

Snapper 7076998

LUBE FITTING, 1/4-28 Straight
(Superseded to 703153)

$3.99

$

In Stock, only 2 left!

0

20

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

21

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

22

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 7

0

23

Snapper 7044626

BUSHING, Caster
(Superseded to 7044626YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

25

Snapper 7091528

WASHER, 3/8" I.D. Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7021128

SPACER
(Superseded to 7021128YP)

$7.49

$

In Stock, only 3 left!

0

27

Snapper 7054011

ASSEMBLY, Spindle
(Superseded to 7054011YP)

Note: see Cutter Housing Assembly page

$

$

Not available
