SP 43-W (866018) - Briggs & Stratton Brush Cutter (2010) Engine Group - SP43W (702109) Parts Diagram

Brush Cutter

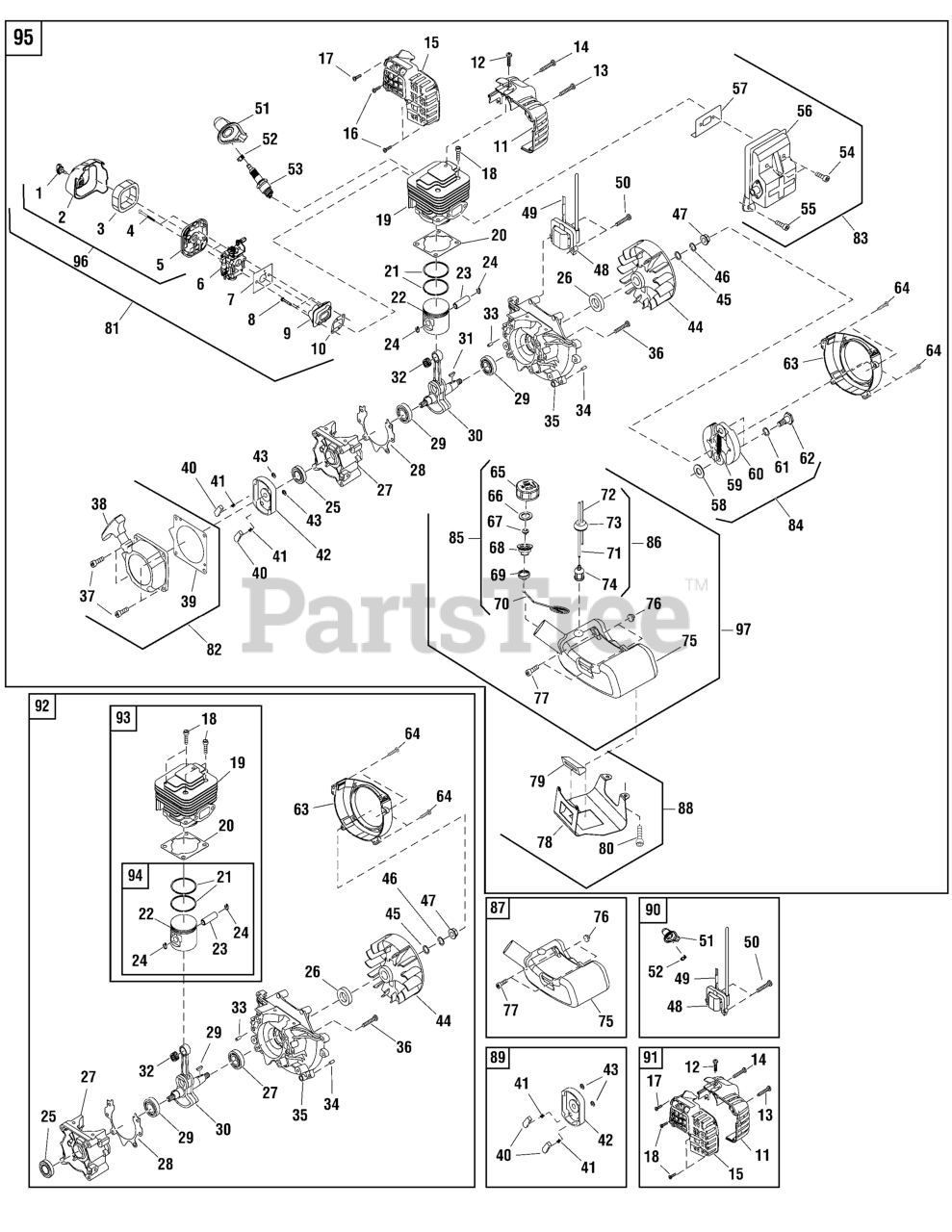

Engine Group - SP43W (702109) Parts Diagram

  • Title

1

Murray 700804

SCREW

$4.99

$

Usually ships in 2-12 days

0

2

Murray 700904

COVER, Cleaner, Outer

$13.99

$

Usually ships in 2-12 days

0

3

Murray 700317

FILTER

$2.49

$

Usually ships in 2-12 days

0

4

Murray 702045

BOLT, M5 x 55

$3.49

$

Usually ships in 2-12 days

0

5

Murray 700806

COVER, Cleaner, Inner

$6.99

$

Usually ships in 2-12 days

0

6

Murray 700905

CARBURETOR

$205.99

$

Usually ships in 2-12 days

0

7

Murray 700849

GASKET, Carburetor

$3.99

$

Usually ships in 2-12 days

0

8

Murray 701850

BOLT, M5 x 25

$3.49

$

Usually ships in 2-12 days

0

9

Murray 700848

ADMITTING PIPE

$7.49

$

Usually ships in 2-12 days

0

10

Murray 700847

GASKET, Admitting Pipe

$3.49

$

Usually ships in 2-12 days

0

11

Murray 700907

SHROUD, Front

$36.99

$

Usually ships in 2-12 days

0

12

BOLT, M5 x 16

Note: (Not a serviceable part, order kit Ref. No. 91)

$

$

Not available

13

BOLT, M5 x 12

Note: (Not a serviceable part, order kit Ref. No. 91)

$

$

Not available

14

BOLT, M5 x 12

Note: (Not a serviceable part, order kit Ref. No. 91)

$

$

Not available

15

Murray 700908

SHROUD, Rear

$25.99

$

Usually ships in 2-12 days

0

16

Murray 700764

SCREW, Self Tapping, ST5 x 20

$3.49

$

Usually ships in 2-12 days

0

17

Murray 700924

SCREW, Self Tapping, ST4.2 x 25

$2.99

$

Usually ships in 2-12 days

0

18

Murray 700374

BOLT, M5 x 20

$3.49

$

Usually ships in 2-12 days

0

19

Murray 702052

CYLINDER HEAD

$58.99

$

Usually ships in 2-12 days

0

20

Murray 700853

GASKET, Cylinder Head

$4.49

$

Usually ships in 2-12 days

0

21

Murray 700857

PISOTN RING

$5.49

$

Usually ships in 2-12 days

0

22

Murray 700858

PISTON

$12.99

$

Usually ships in 2-12 days

0

23

Murray 700856

PIN, Piston

$4.99

$

Usually ships in 2-12 days

0

24

Murray 700912

RING, Pin Retain

$3.49

$

Usually ships in 2-12 days

0

25

Murray 700345

OIL SEAL,11.7 x 22 x 7

$4.49

$

Usually ships in 2-12 days

0

26

Murray 700864

OIL SEAL, 30 x 14.7 x 7

$4.49

$

Usually ships in 2-12 days

0

27

Murray 702039

CRANK CASE, Rear

$20.99

$

Usually ships in 2-12 days

0

28

Murray 700866

GASKET, Crank Case

$5.99

$

Usually ships in 2-12 days

0

29

Murray 700865

BEARING, 6201/P6

$5.99

$

Usually ships in 2-12 days

0

30

Murray 700861

CRANK SHAFT

$76.99

$

Usually ships in 2-12 days

0

31

Murray 700341

KEY, 3 x 5 x 13

$3.49

$

Usually ships in 2-12 days

0

32

Murray 700860

NEEDLE BEARING

$7.99

$

Usually ships in 2-12 days

0

33

Murray 700885

PIN, Cylindrical, B5 x 12

$3.49

$

Usually ships in 2-12 days

0

34

Murray 700386

PIN, Cylindrical, B4 x 10

$2.99

$

Usually ships in 2-12 days

0

35

Murray 702040

CRANK CASE, Front

$32.99

$

Usually ships in 2-12 days

0

36

BOLT M5 x 30

Note: (Not a serviceable part, order kit Ref. No. 92)

$

$

Not available

37

BOLT, M5 x 20

Note: (Not a serviceable part, order kit Ref. No. 82)

$

$

Not available

38

Murray 700809

KIT, Shroud Assembly

$30.99

$

Usually ships in 2-12 days

0

39

Murray 700329

PAD, Starter

$4.99

$

Usually ships in 2-12 days

0

40

CINCH, Starter

Note: (Not a serviceable part, order kit Ref. No. 89)

$

$

Not available

41

SPRING, Starter

Note: (Not a serviceable part, order kit Ref. No. 89)

$

$

Not available

42

STARTER BOX

Note: (Not a serviceable part, order kit Ref. No. 89)

$

$

Not available

43

RING, Retainer

Note: (Not a serviceable part, order kit Ref. No. 89)

$

$

Not available

44

Murray 702054

FLY WHEEL

$35.99

$

Usually ships in 2-12 days

0

45

Murray 700380

WASHER, Flat, 8

$2.99

$

Usually ships in 2-12 days

0

46

Murray 700379

WASHER, Spring, 8

$2.99

$

Usually ships in 2-12 days

0

47

Murray 700378

NUT, Hex, M8

$2.99

$

Usually ships in 2-12 days

0

48

Murray 700871

MAGNETO COIL

$38.99

$

Usually ships in 2-12 days

0

49

Murray 700827

CORD, Magneto

$5.49

$

Usually ships in 2-12 days

0

50

BOLT M5 x 20

Note: (Not a serviceable part, order kit Ref. No. 90)

$

$

Not available

51

Murray 700352

BOOT, Spark Plug

$6.99

$

Usually ships in 2-12 days

0

52

Murray 700351

CLIP, Spark Plug

$3.99

$

Usually ships in 2-12 days

0

53

Murray 700360

SPARK PLUG

$34.99

$

Usually ships in 2-12 days

0

54

Murray 702032

BOLT M6 x 5-10.9

$3.49

$

Usually ships in 2-12 days

0

55

BOLT, M5 x 12

Note: (Not a serviceable part, order kit Ref. No. 83)

$

$

Not available

56

Murray 700918

MUFFLER

$25.99

$

Usually ships in 2-12 days

0

57

Murray 700874

GASKET, Muffler

$10.99

$

Usually ships in 2-12 days

0

58

Murray 700383

WASHER, B

$3.49

$

Usually ships in 2-12 days

0

59

Murray 700364

SPRING, Clutch

$4.49

$

Usually ships in 2-12 days

0

60

Murray 700365

EXPANDER, Complete

$7.99

$

Usually ships in 2-12 days

0

61

Murray 700382

WASHER, Wave

$3.49

$

Usually ships in 2-12 days

0

62

Murray 700767

SCREW, Shaft

$4.99

$

Usually ships in 2-12 days

0

63

Murray 702041

COVER, Fan

$21.99

$

Usually ships in 2-12 days

0

64

Murray 701850

BOLT, M5 x 25

$3.49

$

Usually ships in 2-12 days

0

65

LID, Fuel Tank

Note: (Not a serviceable part, order kit Ref. No. 85)

$

$

Not available

66

GASKET

Note: (Not a serviceable part, order kit Ref. No. 85)

$

$

Not available

67

INLET

Note: (Not a serviceable part, order kit Ref. No. 85)

$

$

Not available

68

LID, Fuel Tank, Inner

Note: (Not a serviceable part, order kit Ref. No. 85)

$

$

Not available

69

COVER, End

Note: (Not a serviceable part, order kit Ref. No. 85)

$

$

Not available

70

CHAIN, Fuel Cap

Note: (Not a serviceable part, order kit Ref. No. 85)

$

$

Not available

71

PIPE, Fuel

Note: (Not a serviceable part, order kit Ref. No. 86)

$

$

Not available

72

PIPE, Soft PVC

Note: (Not a serviceable part, order kit Ref. No. 86)

$

$

Not available

73

PLUG, Fuel Line

Note: (Not a serviceable part, order kit Ref. No. 86)

$

$

Not available

74

Murray 701666

FILTER, Fuel

$5.49

$

Usually ships in 2-12 days

0

75

Murray 702048

FUEL TANK

$20.99

$

Usually ships in 2-12 days

0

76

Murray 700388

PLUG, Rubber

$3.49

$

Usually ships in 2-12 days

0

77

BOLT, M5 x 16

Note: (Not a serviceable part, order kit Ref. No. 87)

$

$

Not available

78

Murray 700880

BRACKET, Tank

$21.99

$

Usually ships in 2-12 days

0

79

Murray 700390

COVER, Rubber

$3.49

$

Usually ships in 2-12 days

0

80

BOLT, M5 x 16

Note: (Not a serviceable part, order kit Ref. No. 88)

$

$

Not available

81

Murray 702110

KIT, Air Cleaner & Carburetor

Note: (Includes Ref. Nos. 1, 2, 3, 4, 5, 6, 7, 8, 9 & 10)

$208.99

$

Usually ships in 2-12 days

0

82

Murray 701912

KIT, Starter Assembly

Note: (Includes Ref. Nos. 37, 38 & 39)

$32.99

$

Usually ships in 2-12 days

0

83

Murray 702031

KIT, Muffler Assembly

Note: (Includes Ref. Nos. 54, 55, 56 & 57)

$36.99

$

Usually ships in 2-12 days

0

84

Murray 701916

KIT, Expander Assembly

Note: (Includes Ref. Nos. 58, 59, 60, 61 & 62)

$21.99

$

Usually ships in 2-12 days

0

85

Murray 701467

KIT, Fuel Cap Assembly

Note: (Includes Ref. Nos. 65, 66, 67, 68, 69 & 70)

$5.99

$

Usually ships in 2-12 days

0

86

Murray 702046

KIT, Fuel Line Assembly

Note: (Includes Ref. Nos. 71, 72, 73 & 74)

$16.99

$

Usually ships in 2-12 days

0

87

Murray 702047

KIT, Fuel Tank Assembly

Note: (Includes Ref. Nos. 75, 76 & 77)

$34.99

$

Usually ships in 2-12 days

0

88

Murray 702049

KIT, Tank Bracket Assembly

Note: (Includes Ref. Nos. 78, 79 & 80)

$24.99

$

Usually ships in 2-12 days

0

89

Murray 700330

KIT, Start Reel Assembly

Note: (Includes Ref. Nos. 40, 41, 42 & 43)

$6.49

$

Usually ships in 2-12 days

0

90

Murray 702050

KIT, Magneto Assembly

Note: (Includes Ref. Nos. 48, 49, 50, 51 & 52)

$50.99

$

Usually ships in 2-12 days

0

91

Murray 702035

KIT, Shroud Assembly

Note: (Includes Ref. Nos. 11, 12, 13, 14, 15, 16 & 17)

$50.99

$

Usually ships in 2-12 days

0

92

Murray 702051

KIT, Cylinder Assembly

Note: (Includes Ref. Nos. 25, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 44, 45, 46, 47, 63, 64 & 93)

$241.99

$

Usually ships in 2-12 days

0

93

Murray 702037

KIT, Cylinder Head Assembly

Note: (Includes Ref. Nos. 18, 19, 20 & 94)

$73.99

$

Usually ships in 2-12 days

0

94

Murray 702038

KIT, Piston Assembly

Note: (Includes Ref. Nos. 21, 22, 23 & 24)

$19.99

$

Usually ships in 2-12 days

0

95

Murray 702109

KIT, Engine, Complete

$531.99

$

Usually ships in 2-12 days

0

96

Murray 702416

KIT, Air Cleaner

Note: (Includes Ref. Nos. 1, 2, 3, 4 & 5)

$21.99

$

Usually ships in 2-12 days

0

97

Murray 702417

KIT, Fuel Tank & Cap

Note: (Includes Ref. Nos. 85, 86 & 87)

$53.99

$

Usually ships in 2-12 days
