SP 43-W (866030) - Briggs & Stratton Brush Cutter (2011) Engine Group - SP43-W (702042) Parts Diagram

Brush Cutter

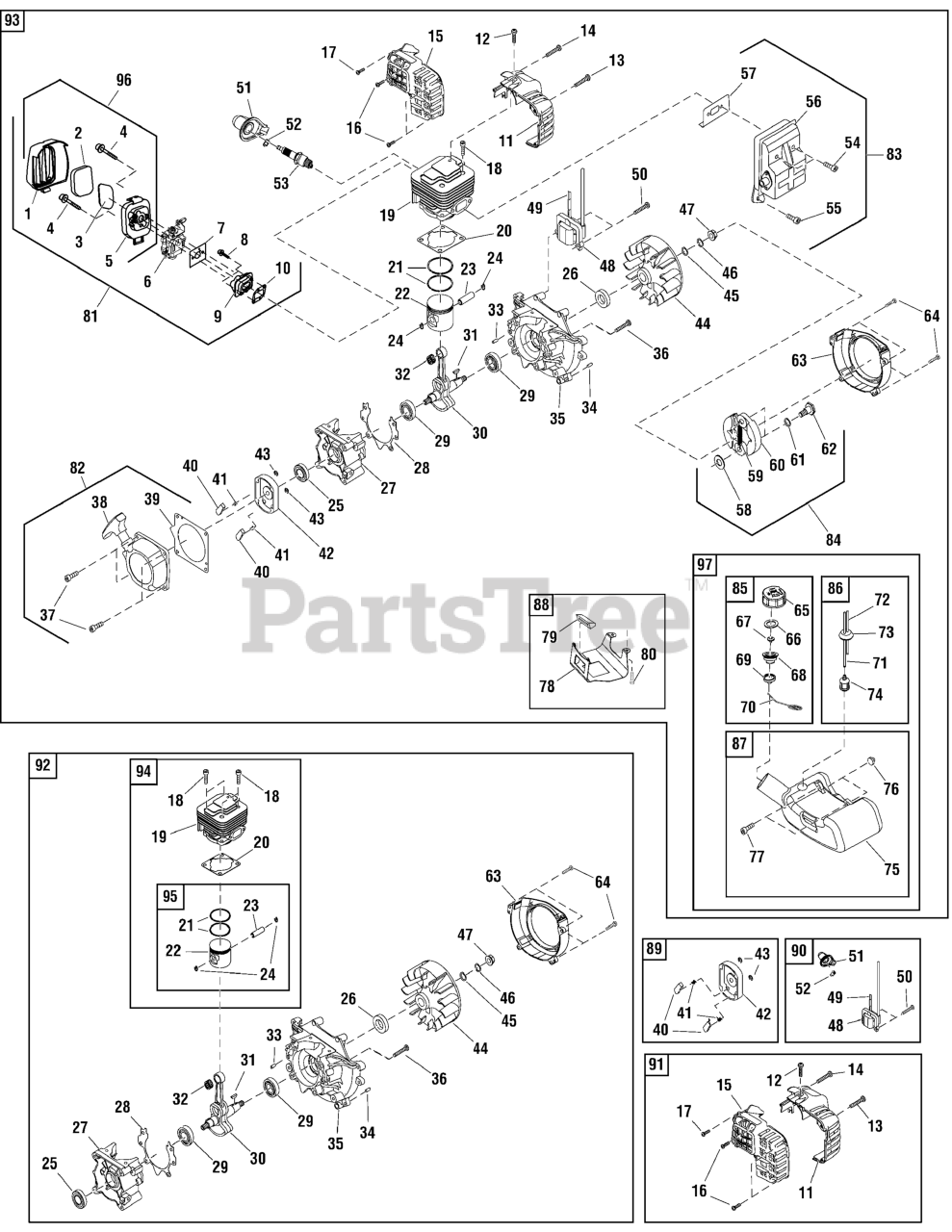

Engine Group - SP43-W (702042) Parts Diagram

  • Title

1

Murray 701903

COVER, Cleaner, Outer

$7.99

$

Usually ships in 2-12 days

0

2

Murray 701895

FILTER

$3.99

$

Usually ships in 2-12 days

0

3

Murray 701896

BRACKET, Filter Net

$4.49

$

Usually ships in 2-12 days

0

4

Murray 702045

BOLT, M5 x 55

$2.99

$

Usually ships in 2-12 days

0

5

Murray 701904

BRACKET, Air Cleaner

$9.49

$

Usually ships in 2-12 days

0

6

Murray 702044

CARBURETOR

$173.99

$

Usually ships in 2-12 days

0

7

Murray 700849

GASKET, Carburetor

$3.99

$

Usually ships in 2-12 days

0

8

Murray 701850

BOLT, M5 x 25

$3.49

$

Usually ships in 2-12 days

0

9

Murray 700848

ADMITTING PIPE

$7.49

$

Usually ships in 2-12 days

0

10

Murray 700847

GASKET, Admitting Pipe

$3.49

$

Usually ships in 2-12 days

0

11

Murray 700907

SHROUD, Front

$34.99

$

Usually ships in 2-12 days

0

12

* BOLT, M5 x 16

$

$

Not available

13

* BOLT, M5 x 12

$

$

Not available

14

* BOLT, M5 x 12

$

$

Not available

15

Murray 700908

SHROUD, Back

$23.99

$

Usually ships in 2-12 days

0

16

Murray 700764

SCREW, Self Tapping, 5 x 20

$2.99

$

Usually ships in 2-12 days

0

17

Murray 700924

SCREW, Self Tapping, 4.2 x 25

$2.99

$

Usually ships in 2-12 days

0

18

Murray 700374

BOLT, M5 x 20

$3.49

$

Usually ships in 2-12 days

0

19

Murray 702052

CYLINDER

$55.99

$

Usually ships in 2-12 days

0

20

Murray 700853

GASKET, Cylinder

$3.99

$

Usually ships in 2-12 days

0

21

Murray 702053

RING, Piston

$5.49

$

Usually ships in 2-12 days

0

22

Murray 700858

PISTON

$11.99

$

Usually ships in 2-12 days

0

23

Murray 700856

PIN, Piston

$4.49

$

Usually ships in 2-12 days

0

24

Murray 700912

RING, Pin Retain

$2.99

$

Usually ships in 2-12 days

0

25

Murray 700345

SEAL, Oil, 11.7 x 22 x 7

$3.99

$

Usually ships in 2-12 days

0

26

Murray 700864

OIL SEAL, 30 x 14.7 x 7

$3.99

$

Usually ships in 2-12 days

0

27

Murray 702039

CRANK CASE, Rear

$19.99

$

Usually ships in 2-12 days

0

28

Murray 700866

GASKET, Crank Case

$5.49

$

Usually ships in 2-12 days

0

29

Murray 700865

BEARING, 6201/P6

$5.49

$

Usually ships in 2-12 days

0

30

Murray 700861

CRANKSHAFT

$71.99

$

Usually ships in 2-12 days

0

31

Murray 700341

KEY, 3 x 5 x 13

$3.49

$

Usually ships in 2-12 days

0

32

Murray 700860

BEARING, Needle

$7.49

$

Usually ships in 2-12 days

0

33

Murray 700885

PIN, Cylindrical, B5 x 12

$3.49

$

Usually ships in 2-12 days

0

34

Murray 700386

PIN, Cylindrical, B4 x 10

$2.99

$

Usually ships in 2-12 days

0

35

Murray 702040

CRANK CASE, Front

$30.99

$

Usually ships in 2-12 days

0

36

* BOLT, M5 x 30

$

$

Not available

37

* BOLT, M5 x 20

$

$

Not available

38

Murray 700809

STARTER

$29.99

$

Usually ships in 2-12 days

0

39

Murray 700329

STARTER PAD

$4.99

$

Usually ships in 2-12 days

0

40

STARTER CINCH

Note: (Not a serviceable part. Order Kit Ref. No 88)

$

$

Not available

41

SPRING, Starter

Note: (Not a serviceable part. Order Kit Ref. No 88)

$

$

Not available

42

STARTER BOX

Note: (Not a serviceable part. Order Kit Ref. No 88)

$

$

Not available

43

RING, Retainer

Note: (Not a serviceable part. Order Kit Ref. No 88)

$

$

Not available

44

Murray 702054

FLY WHEEL

$33.99

$

Usually ships in 2-12 days

0

45

Murray 700380

WASHER, Flat, Dia. 8

$2.99

$

Usually ships in 2-12 days

0

46

Murray 700379

WASHER, Spring, Dia. 8

$2.99

$

Usually ships in 2-12 days

0

47

Murray 700378

NUT, M8

$2.99

$

Usually ships in 2-12 days

0

48

Murray 702034

MAGNETO COIL

$43.99

$

Usually ships in 2-12 days

0

49

Murray 700827

CORD, Magneto

$4.99

$

Usually ships in 2-12 days

0

50

* BOLT, M5 x 20

$

$

Not available

51

Murray 700352

BOOT, Spark Plug

$6.49

$

Usually ships in 2-12 days

0

52

Murray 700351

CLIP, Spark Plug

$3.49

$

Usually ships in 2-12 days

0

53

Murray 700360

SPARK PLUG

$33.99

$

Usually ships in 2-12 days

0

54

Murray 702032

* BOLT, M5 x 55-10.9

$3.49

$

Usually ships in 2-12 days

0

55

* BOLT, M5 x 12

$

$

Not available

56

Murray 702125

MUFFLER

$

$

Currently unavailable

57

Murray 700874

GASKET, Muffler

$9.99

$

Usually ships in 2-12 days

0

58

Murray 700383

WASHER, B

$3.49

$

Usually ships in 2-12 days

0

59

Murray 701897

SPRING, Clutch

$3.99

$

Usually ships in 2-12 days

0

60

Murray 701968

EXPANDER, Complete

$7.99

$

Usually ships in 2-12 days

0

61

Murray 700382

WASHER, Wave

$2.99

$

Usually ships in 2-12 days

0

62

Murray 700767

SCREW, Shaft

$4.49

$

Usually ships in 2-12 days

0

63

Murray 702041

COVER, Fan

$19.99

$

Usually ships in 2-12 days

0

64

Murray 701850

BOLT, M5 x 25

$3.49

$

Usually ships in 2-12 days

0

65

LID, Fuel Tank

Note: (Not a serviceable part. Order Kit Ref. No 84)

$

$

Not available

66

GASKET

Note: (Not a serviceable part. Order Kit Ref. No 84)

$

$

Not available

67

INLET

Note: (Not a serviceable part. Order Kit Ref. No 84)

$

$

Not available

68

LID, Fuel Tank, Inner

Note: (Not a serviceable part. Order Kit Ref. No 84)

$

$

Not available

69

COVER, End

Note: (Not a serviceable part. Order Kit Ref. No 84)

$

$

Not available

70

CHAIN, Fuel Cap

Note: (Not a serviceable part. Order Kit Ref. No 84)

$

$

Not available

71

PIPE, Fuel

Note: (Not a serviceable part. Order Kit Ref. No 85)

$

$

Not available

72

PIPE, Soft PVC

Note: (Not a serviceable part. Order Kit Ref. No 85)

$

$

Not available

73

PLUG, Fuel Line

Note: (Not a serviceable part. Order Kit Ref. No 85)

$

$

Not available

74

Murray 701666

FILTER, Fuel

$5.49

$

Usually ships in 2-12 days

0

75

Murray 702048

FUEL TANK

$19.99

$

Usually ships in 2-12 days

0

76

Murray 700388

PLUG, Rubber

$3.49

$

Usually ships in 2-12 days

0

77

* BOLT, M5 x 16

$

$

Not available

78

Murray 700880

BRACKET, Fuel Tank

$19.99

$

Usually ships in 2-12 days

0

79

Murray 700390

COVER, Rubber

$2.99

$

Usually ships in 2-12 days

0

80

* BOLT, M5 x 16

$

$

Not available

81

Murray 702043

KIT, Air Cleaner & Carburetor

Note: (Includes Ref. Nos. 1, 2, 3, 4, 5, 6, 7, 8, 9 & 10)

$186.99

$

Usually ships in 2-12 days

0

82

Murray 701912

KIT, Starter Assembly

Note: (Includes Ref. Nos. 34, 35 & 36)

$30.99

$

Usually ships in 2-12 days

0

83

Murray 702126

KIT, Muffler Assembly

Note: (Includes Ref. Nos. 51, 52, 53 & 54)

$

$

Currently unavailable

84

Murray 701916

KIT, Expander Assembly

Note: (Includes Ref. Nos. 55, 56, 57, 58 & 59)

$20.99

$

Usually ships in 2-12 days

0

85

Murray 701894

KIT, Fuel Cap Assembly

Note: (Includes Ref. Nos. 64, 65, 66, 67, 68 & 69)

$5.49

$

Usually ships in 2-12 days

0

86

Murray 702046

KIT, Fuel Line Assembly

Note: (Includes Ref. Nos. 70, 71, 72 & 73)

$15.99

$

Usually ships in 2-12 days

0

87

Murray 702047

KIT, Fuel Tank Assembly

Note: (Includes Ref. Nos. 74, 75 & 76)

$32.99

$

Usually ships in 2-12 days

0

88

Murray 702049

KIT, Tank Bracket Assembly

Note: (Includes Ref. Nos. 77, 78 & 79)

$23.99

$

Usually ships in 2-12 days

0

89

Murray 701892

KIT, Start Reel Assembly

Note: (Includes Ref. Nos. 37, 38, 39 & 40)

$5.99

$

Usually ships in 2-12 days

0

90

Murray 702050

KIT, Magneto Assembly

Note: (Includes Ref. Nos. 45, 46, 47, 48 & 49)

$47.99

$

Usually ships in 2-12 days

0

91

Murray 702035

KIT, Shroud Assembly

Note: (Includes Ref. Nos. 11, 12, 13, 14, 15 & 16)

$47.99

$

Usually ships in 2-12 days

0

92

Murray 702051

KIT, Cylinder Assembly

Note: (Includes Ref. Nos. 24, 25, 26, 27, 28, 29, 30, 31, 33, 42, 43, 44, 60, 61, 62, 63, 72 & 73)

$227.99

$

Usually ships in 2-12 days

0

93

Murray 702042

ENGINE ASSEMBLY, Complete

$

$

Currently unavailable

94

Murray 702037

KIT, Cylinder Head

Note: (Includes Ref. Nos. 17, 18, 19 & 93)

$69.99

$

Usually ships in 2-12 days

0

95

Murray 702038

KIT, Piston

Note: (Includes Ref. Nos. 20, 21, 22 & 23)

$18.99

$

Usually ships in 2-12 days

0

96

Murray 702430

KIT, Air Cleaner

Note: (Includes Ref. Nos. 1, 2, 3, 4 & 5)

$18.99

$

Usually ships in 2-12 days

0

97

Murray 702417

KIT, Fuel Tank & Cap

Note: (Includes Ref. Nos. 85, 86 & 87)

$50.99

$

Usually ships in 2-12 days

0
