SP 58V (1697069-00) (967947301-00) - Snapper 58V 21" Walk-Behind Mower WheelsGroup Parts Diagram

58V 21" Walk-Behind Mower

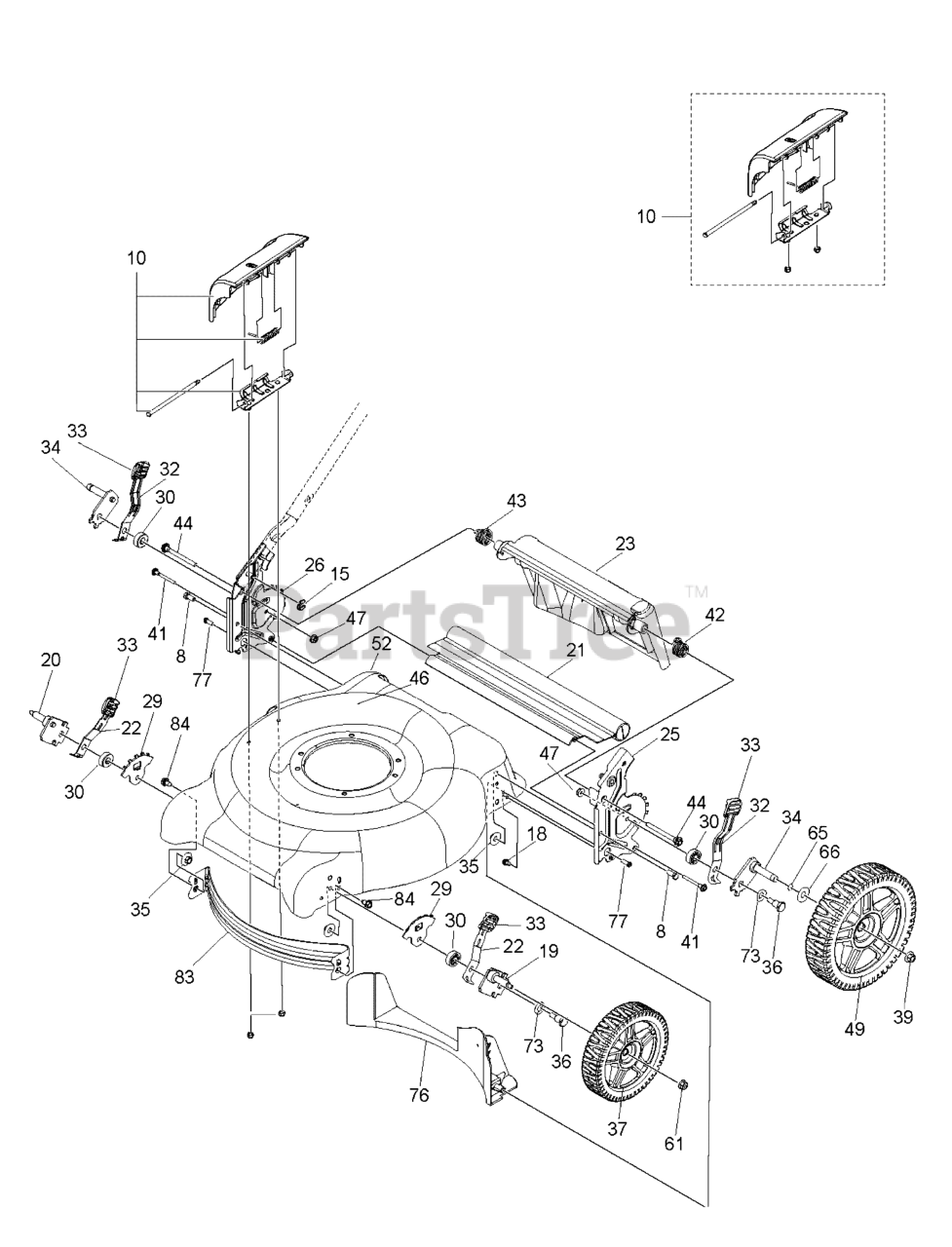

WheelsGroup Parts Diagram

  • Title

8

Snapper 708474

Screw Thdrol 5/16-18 x 3/4

$6.99

$

Usually ships in 2-12 days

0

10

DISCHARGE CHUTE

$

$

Not available

15

CLIP, Retainer

$

$

Not available

18

Snapper 705328

Screw Hex Washead 1/4-20 X 3/8

$4.99

$

Usually ships in 2-12 days

0

19

AXLE, Front, Left

$

$

Not available

20

AXLE, Front, Right

$

$

Not available

21

COVER, Dust

$

$

Not available

22

SPRING

$

$

Not available

23

DEFLECTOR, Rear

$

$

Not available

25

BRACKET, Left

$

$

Not available

26

BRACKET, Right

$

$

Not available

29

BRACKET, Height

$

$

Not available

30

Snapper 709305

Spacer

$10.99

$

Usually ships in 2-12 days

0

32

Snapper 709381

Selector Spring, Rear

$9.49

$

Usually ships in 2-12 days

0

33

Snapper 709411

Selector Knob

$6.99

$

In Stock, only 3 left!

0

34

AXLE, Rear

$

$

Not available

35

Snapper 709354

NUT, Hex, Flangelock 5/16-18

$8.99

$

Usually ships in 2-12 days

0

36

Snapper 709307

BOLT, Shoulder, 5/16-18 x .33

$7.99

$

Usually ships in 2-12 days

0

37

Snapper 708509

Wheel & Tire Assembly, Rear

$51.99

$

Usually ships in 2-12 days

0

39

Snapper 709088

NUT, Lock Flange, 3/8-16 UNC

$8.99

$

In Stock, only 3 left!

0

41

Snapper 709275

Screw, Hinge

$8.99

$

Usually ships in 2-12 days

0

42

Snapper 709312

Spring, Rear Door, LH

Note: 1

$4.49

$

Usually ships in 2-12 days

0

43

Snapper 709313

Spring, Rear Door, RH

Note: 1

$4.49

$

Usually ships in 2-12 days

0

44

Snapper 709205

Bolt, Rear Skirt

$4.99

$

Usually ships in 2-12 days

0

46

Snapper 709203

Decal Deflect WRN. Cutfinger

$8.99

$

Usually ships in 2-12 days

0

47

LOCKNUT, 5/16-18

$

$

Not available

49

WHEEL

$

$

Not available

52

KIT, Housing

$

$

Not available

61

Snapper 709321

NUT, Hex, Flangelock 3/8-16

$9.99

$

In Stock, only 1 left!

0

65

Snapper 709288

O-Ring

$7.49

$

Usually ships in 2-12 days

0

66

Snapper 709452

WASHER, Flat, 3/8

$6.99

$

Usually ships in 2-12 days

0

73

Snapper 709306

Washer, Curved, Cylindrical

$10.99

$

Usually ships in 2-12 days

0

76

BAFFLE, Rear

$

$

Not available

77

Snapper 709159

Screw, Hex Washer Head, #13 x 3/4

$7.99

$

Usually ships in 2-12 days

0

83

Snapper 709361

Baffl e, Front

$35.99

$

Usually ships in 2-12 days

0

84

Snapper 705320

SCREW, 5/16-18

$10.99

$

Usually ships in 2-12 days

0
