SP 60 (7800922-00) - Snapper 21" Walk-Behind Mower, 675 Series Briggs Wheels Group Parts Diagram

21" Walk-Behind Mower, 675 Series Briggs

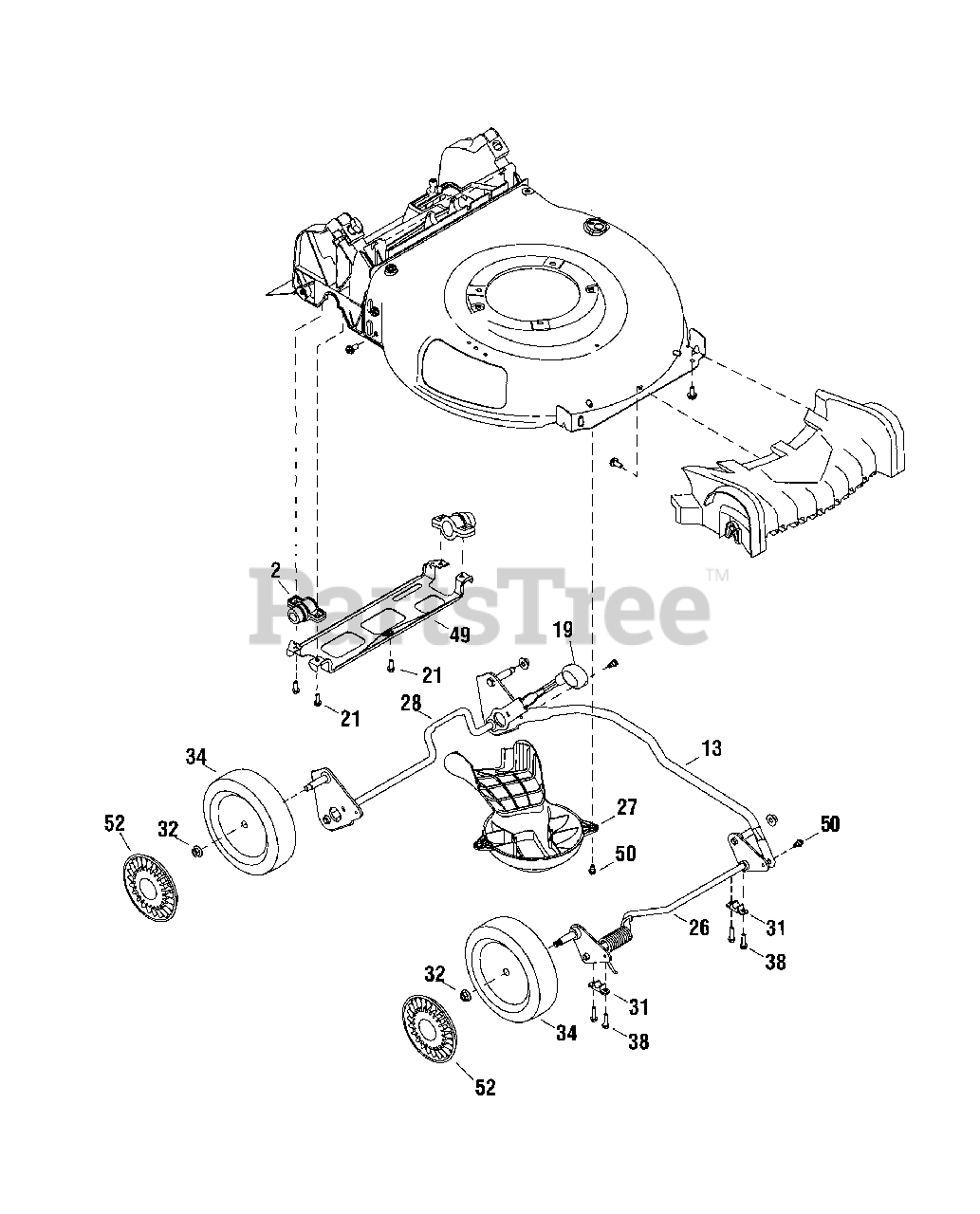

Wheels Group Parts Diagram

  • Title

2

Snapper 703469

ASSEMBLY, Bearing

$11.99

$

In Stock, only 1 left!

0

13

Snapper 703565

BRACKET, Cross

$40.99

$

Usually ships in 2-12 days

0

19

Snapper 703488

KNOB, Adjustment Lever

$18.99

$

Usually ships in 2-12 days

0

21

Snapper 7900023SM

SCREW, 1/4-15 x 1-1/4
(Superseded to 1751399YP)

$4.49

$

In Stock, Qty 13

0

26

Snapper 703549

AXLE ASSEMBLY, Front

$121.99

$

Usually ships in 2-12 days

0

27

Snapper 703471

BAFFLE, Engine

$55.99

$

Usually ships in 2-12 days

0

28

Snapper 703548

AXLE ASSEMBLY, Rear

$123.99

$

Usually ships in 2-12 days

0

31

Snapper 703524

BUSHING, Lock

$10.99

$

Usually ships in 2-12 days

0

32

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

34

Snapper 703473

WHEEL, 8 x 2, Black

$51.99

$

In Stock, only 4 left!

0

38

Snapper 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

49

Snapper 703542

SUPPORT, Rear Bracket

$27.99

$

Usually ships in 2-12 days

0

50

Snapper 703521

BOLT, Shoulder, 1/4-20 x 1/2

$11.99

$

Usually ships in 2-12 days

0

52

Snapper 703511

HUBCAP, Front, 8" Silver

$10.99

$

Usually ships in 2-12 days

0
