SP 70 (UT-26350) - Green Machine Sprayer Tank & Wand Parts Diagram

Sprayer

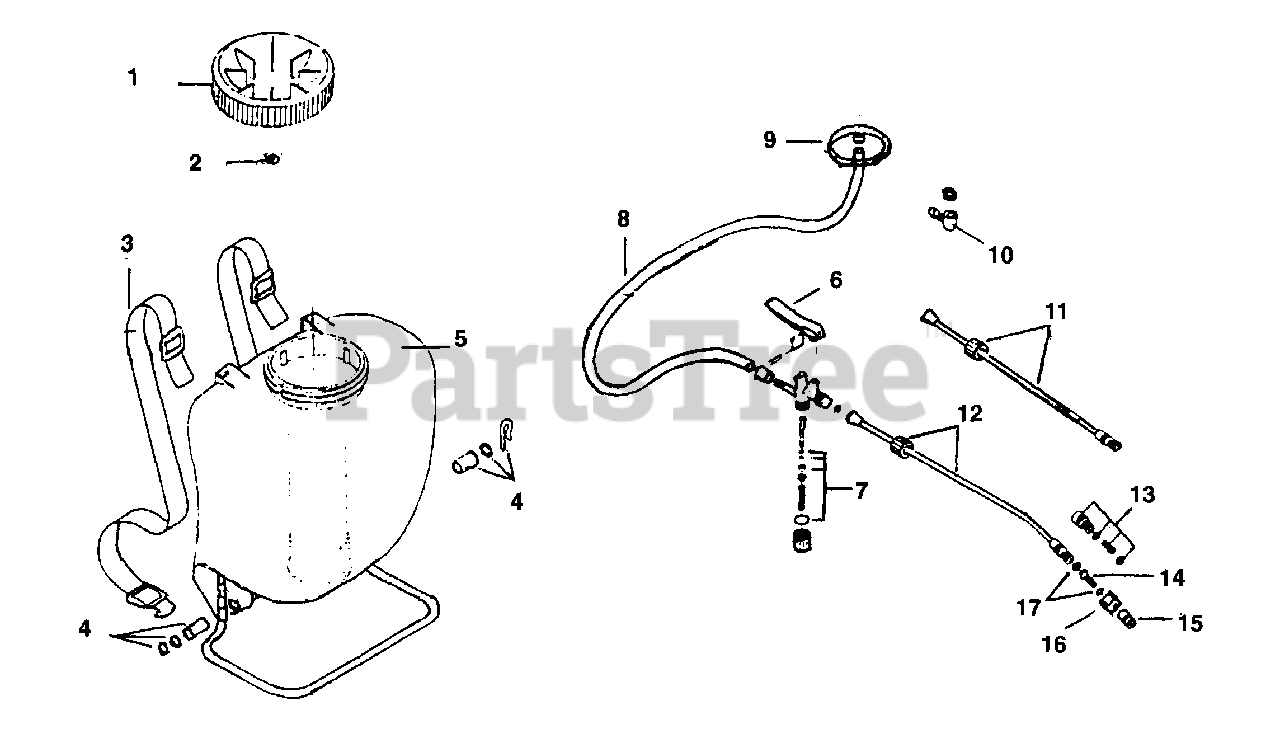

Tank & Wand Parts Diagram

  • Title

1

Homelite A0790601

CAP, TANK

$

$

Not available

2

Homelite 0790602

CHECK VALVE FOR CAP

$

$

Not available

3

Homelite A0790614

SHOULDER BELTS

$

$

Currently unavailable

4

Homelite A0790604

NYLON BEARING ASSY

$

$

Not available

5

Homelite 0790603

TANK WITH STAND

$

$

Currently unavailable

6

Homelite A0790616

COMPLETE SPRAY PISTOL

$

$

Not available

7

Homelite A0790617

"O" RING SET, SPRAY PISTOL

$

$

Not available

8

Homelite A0790615

HOSE SET

$

$

Not available

9

Homelite 0790610

RETENTION CLAMP

Note: Torque Specs: 5-20 In/Lbs; .6-2.3 Nm

$

$

Currently unavailable

10

Homelite A0790619

90 DEGREE FITTING

$

$

Not available

11

Homelite A0790624

EXTENSION TUBE 66.5"

Note: (OPTIONAL)

$

$

Not available

12

Homelite A0790620

SPRAY WAND

$

$

Not available

13

Homelite A0790623

SPRAY STRAINER

Note: (OPTIONAL)

$

$

Not available

14

Homelite A0790621

ADJ. NOZZLE, BRASS

Note: (OPTIONAL)

$

$

Not available

17

Homelite A0790622

"O" RING SET, SPRAY TIP

$

$

Not available

15

Homelite A0790625

SPRAY TIP NOZZLE SET

$

$

Not available

17

Homelite A0790622

"O" RING SET, SPRAY TIP

$

$

Not available

16

Homelite A0790618

NOZZLE HOLDER
(Superseded to UP07803)

$

$

Not available

17

Homelite A0790622

"O" RING SET, SPRAY TIP

$

$

Not available
