SP 80 (1696607-01) - Snapper 21" Walk-Behind Mower, FWD-HW, 725 Series Briggs Drive Group Parts Diagram

21" Walk-Behind Mower, FWD-HW, 725 Series Briggs

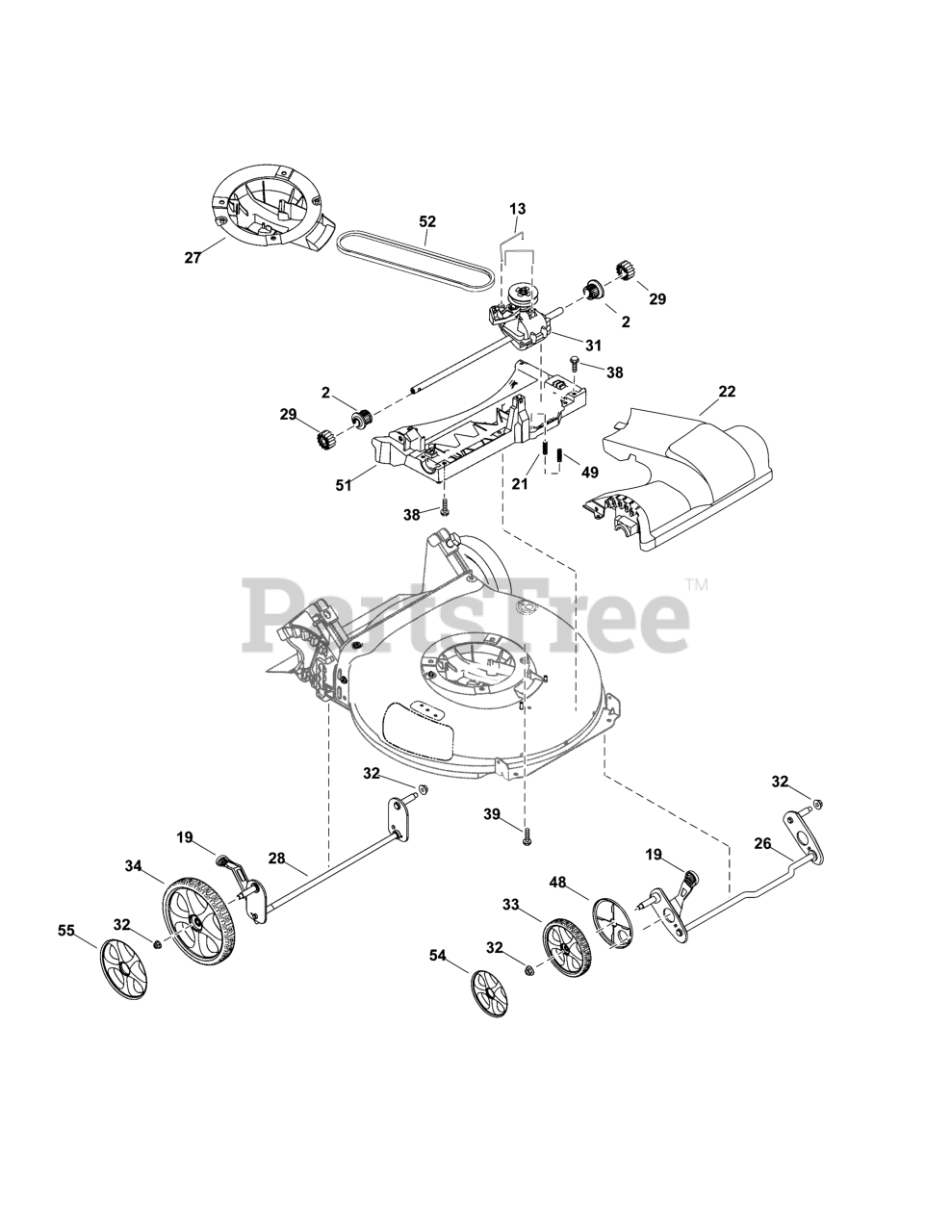

Drive Group Parts Diagram

  • Title

2

Snapper 703559

ASSEMBLY, Bearing

$12.99

$

In Stock, only 2 left!

0

13

Snapper 703514

WIRE, Transmission

$10.99

$

Usually ships in 2-12 days

0

19

Snapper 703490

KNOB, Adjustment Lever

$9.99

$

In Stock, Qty 7

0

21

Snapper 703515

SPRING, Compression

$8.49

$

Usually ships in 2-12 days

0

22

Snapper 703508

COVER, Front

$113.99

$

Usually ships in 2-12 days

0

26

Snapper 703547

AXLE ASSEMBLY, Front

$103.99

$

Usually ships in 2-12 days

0

27

Snapper 703558

BAFFLE, Engine

$34.99

$

Usually ships in 2-12 days

0

28

Snapper 707927

AXLE ASSEMBLY, Rear

$168.99

$

Usually ships in 2-12 days

0

29

Snapper 84005603

GEAR, Spur

$135.99

$

Usually ships in 2-12 days

0

31

Snapper 84005601

TRANSMISSION ASSEMBLY

$636.99

$

Usually ships in 2-12 days

0

32

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

33

Snapper 703386

WHEEL, Front

$65.99

$

In Stock, only 4 left!

0

34

Snapper 704383

WHEEL, Rear

$125.99

$

Usually ships in 2-12 days

0

38

Snapper 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

39

Snapper 84005076

SCREW, Shoulder, 1/4-20 x 1/2

$8.99

$

Usually ships in 2-12 days

0

48

Snapper 703500

COVER, Dust, Wheel

$11.99

$

In Stock, only 2 left!

0

49

Snapper 703501

SPRING BODY

$10.99

$

Usually ships in 2-12 days

0

51

Snapper 703504

TRAY, Lower

$56.99

$

Usually ships in 2-12 days

0

52

Snapper 703375

V-BELT, 3L, 34.13, V-SPD

$34.99

$

In Stock, only 2 left!

0

54

Snapper 84005606

HUBCAP

$

$

Currently unavailable

55

Snapper 84005607

HUBCAP

$

$

Currently unavailable
