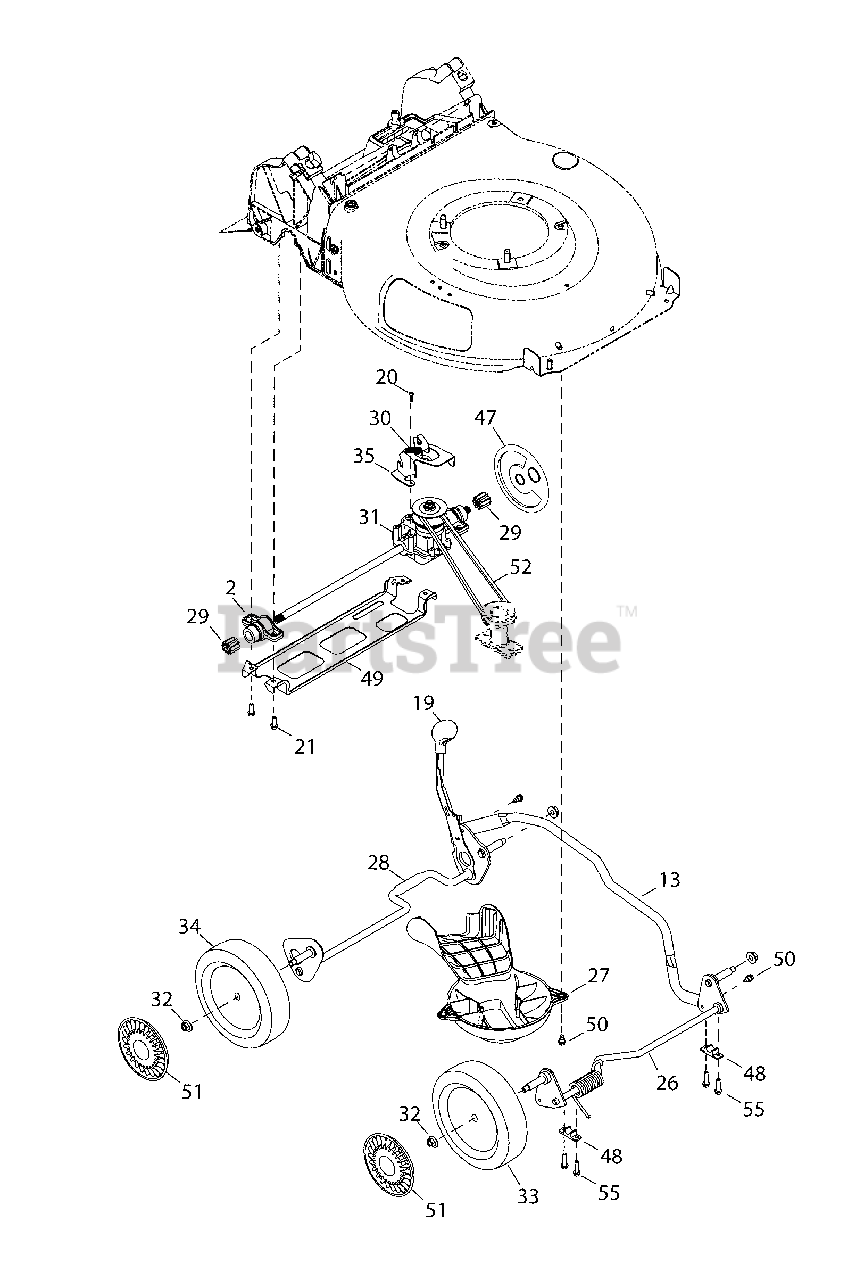

SP 90 (1696701-00) - Snapper 21" Walk-Behind Mower, Self-Propelled, 725 Series Briggs Drive Group Parts Diagram

21" Walk-Behind Mower, Self-Propelled, 725 Series Briggs

Drive Group Parts Diagram

  • Title

2

Snapper 703469

BEARING

$11.99

$

In Stock, only 1 left!

0

13

Snapper 707905

CROSS BRACKET

$115.99

$

Usually ships in 2-12 days

0

19

Snapper 703488

KNOB, Adjustment Lever

$18.99

$

Usually ships in 2-12 days

0

20

Snapper 703479

SCREW, Hex Washer Head, .159 x .43

$7.99

$

In Stock, only 2 left!

0

21

Snapper 7900023SM

SCREW, 1/4-15 x 1-1/4
(Superseded to 1751399YP)

$4.49

$

In Stock, Qty 13

0

26

Snapper TBD-1

* Engine, 14.5 Briggs Euro (w/oil filter)

$

$

Currently unavailable

27

Snapper 703471

BAFFLE, Engine

$55.99

$

Usually ships in 2-12 days

0

28

Snapper 703548

AXLE ASSEMBLY, Rear

$123.99

$

Usually ships in 2-12 days

0

29

Snapper 703555

GEAR, 10T

$9.99

$

In Stock, only 2 left!

0

30

Snapper 703516

SPRING, Extension, 2.405

$8.49

$

Usually ships in 2-12 days

0

31

Snapper 707936

TRANSMISSION

$441.99

$

Usually ships in 2-12 days

0

32

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

33

Snapper 703380

WHEEL, Front

$62.99

$

Usually ships in 2-12 days

0

34

Snapper 707906

WHEEL, Rear

$63.99

$

In Stock, only 4 left!

0

35

Snapper 703540

BRACKET, Transmission

$19.99

$

Usually ships in 2-12 days

0

47

Snapper 703505

COVER, Dust

$8.99

$

Usually ships in 2-12 days

0

48

Snapper 703524

BUSHING, Lock, .505 Dia. X .62

$10.99

$

Usually ships in 2-12 days

0

49

Snapper 703542

BRACKET, Rear Support

$27.99

$

Usually ships in 2-12 days

0

50

Snapper 703714

BOLT, Shoulder, 1/4-20

$

$

Currently unavailable

51

Snapper 707911

HUBCAP, 8" Grey

$20.99

$

Usually ships in 2-12 days

0

52

Snapper 703374

V-BELT, 3L, 31.25"

$70.99

$

In Stock, only 2 left!

0

55

Snapper 1751399YP

SCREW, 1/4-15 x 1

$4.49

$

In Stock, Qty 13

0
