SP 90 (2691555-00) (12ABQ2BH707) - Snapper 23" Walk-Behind Mower, RWD Variable, 875 Series Briggs Drive Group Parts Diagram

23" Walk-Behind Mower, RWD Variable, 875 Series Briggs

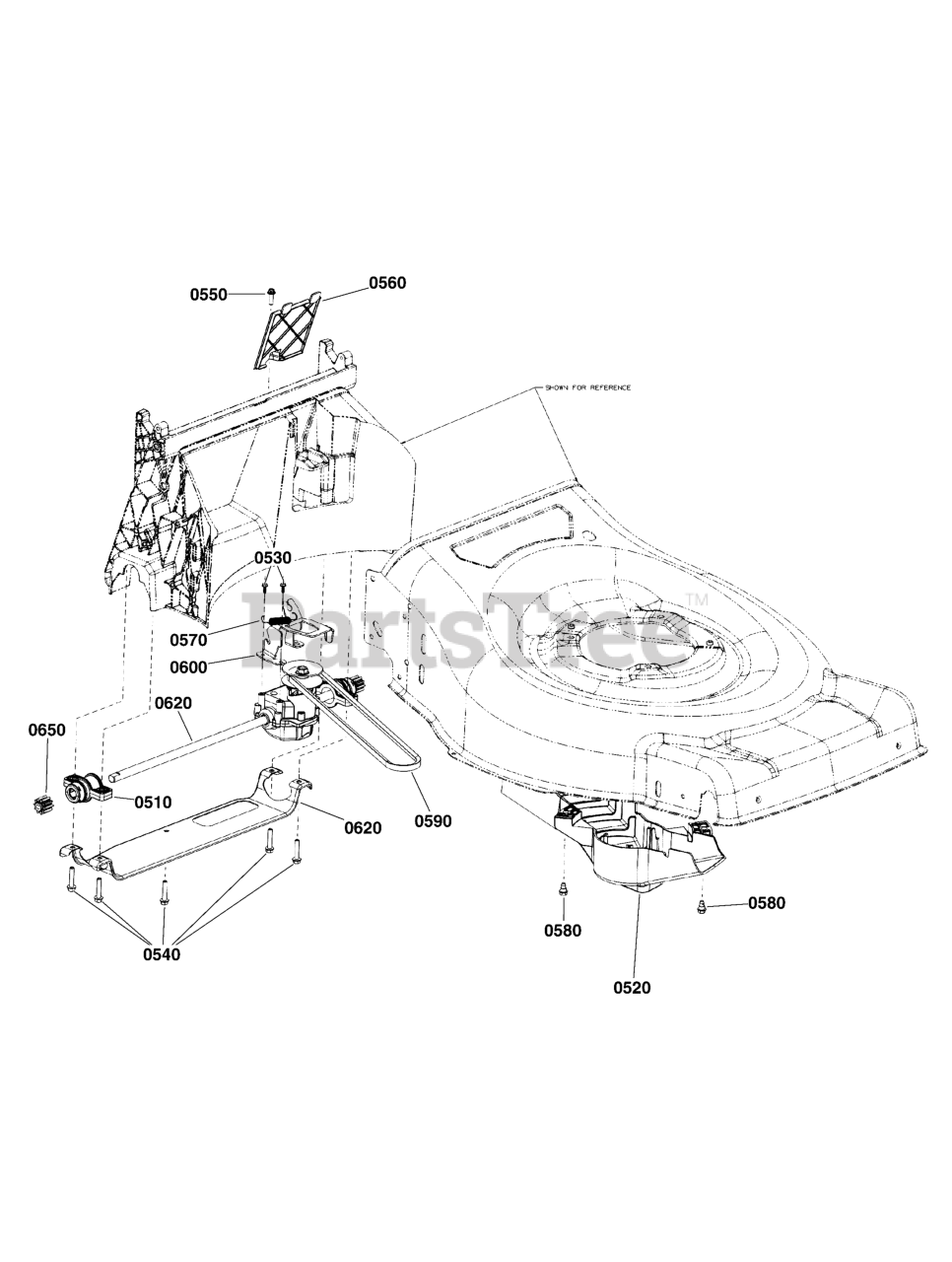

Drive Group Parts Diagram

  • Title

0510

Snapper 703469

ASSEMBLY, Bearing

$11.99

$

In Stock, only 1 left!

0

0520

Snapper 84004925

BAFFLE, 23" Center

$186.99

$

Usually ships in 2-12 days

0

0530

Snapper 703479

SCREW, Hex Washer Head, .159 x .43

$7.99

$

In Stock, only 2 left!

0

0540

Snapper 84004935

SCREW, 1/4-15 X 1.25

$13.99

$

Usually ships in 2-12 days

0

0550

Snapper 84004909

SCREW, 1/4 X .750
(Superseded to 84004919)

$8.99

$

Usually ships in 2-12 days

0

0560

Snapper 84004927

DOOR, 23" Baffle

$20.99

$

Usually ships in 2-12 days

0

0570

Snapper 84004928

SPRING, 2.675" Extension

$13.99

$

Usually ships in 2-12 days

0

0580

Snapper 703714

SCREW, Shoulder, 1/4-20 x 1/2

$

$

Currently unavailable

0590

Snapper 84004929

V-BELT, 3L X 33.25"

$56.99

$

Usually ships in 2-12 days

0

0600

Snapper 84004930

BRACKET, Transmission

$29.99

$

Usually ships in 2-12 days

0

0610

Snapper 84004931

BRACKET, 23" Support

$82.99

$

Usually ships in 2-12 days

0

0620

Snapper 84004932

TRANSMISSION, (RWD MA302)

$326.99

$

Usually ships in 2-12 days

0

0630

Snapper 84004933

GEAR, Spur (10T)

$9.99

$

Usually ships in 2-12 days

0
