SP 95 (7800965-00) - Snapper 21" Walk-Behind Mower, Variable Speed, 775 Series Briggs Deck Group Parts Diagram

21" Walk-Behind Mower, Variable Speed, 775 Series Briggs

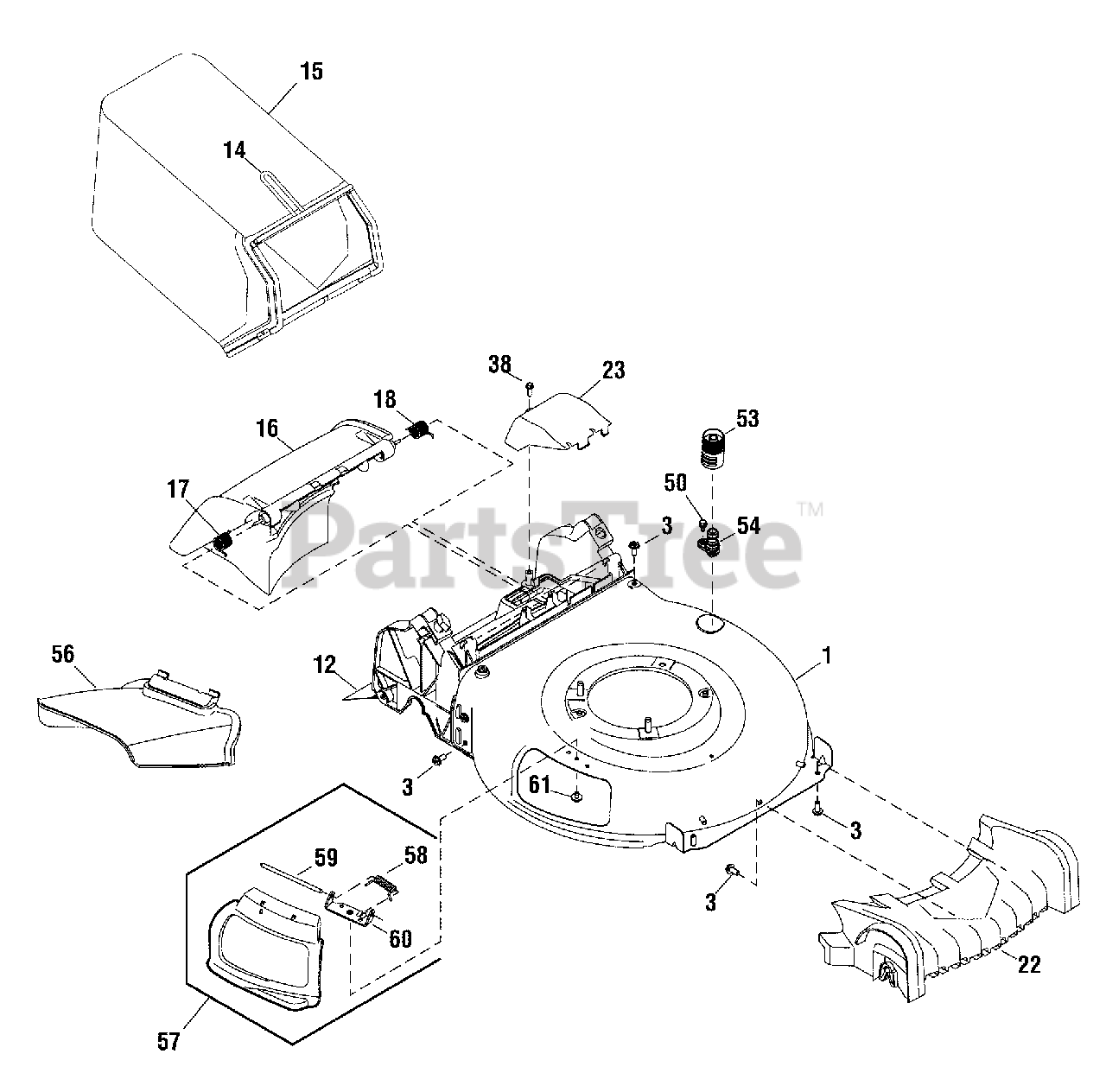

Deck Group Parts Diagram

  • Title

1

DECK, 21"

Note: Not Serviceable

$

$

Not available

3

Snapper 703482

SCREW, 5/16-14 x 3/4

$7.49

$

Usually ships in 2-12 days

0

12

Snapper 703499

SHIELD, Trailing

$19.99

$

In Stock, Qty 5

0

14

Snapper 703527

FRAME, Grass Bag

$46.99

$

In Stock, Qty 16

0

15

Snapper 703385

BAG, Grass

$145.99

$

In Stock, only 1 left!

0

16

Snapper 703472

DOOR, Rear Discharge

$114.99

$

Usually ships in 2-12 days

0

17

Snapper 705878

SPRING, Torsion, RH

$15.99

$

Usually ships in 2-12 days

0

18

Snapper 705879

SPRING, Torsion, LH

$15.99

$

Usually ships in 2-12 days

0

22

Snapper 703509

COVER, Front

$85.99

$

In Stock, only 1 left!

0

23

Snapper 703507

COVER, Transmission

$22.99

$

Usually ships in 2-12 days

0

38

Snapper 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

50

Snapper 703521

BOLT, Shoulder, 1/4-20

$11.99

$

Usually ships in 2-12 days

0

53

Snapper 703557

ADAPTER, Water Nozzle

$43.99

$

Usually ships in 2-12 days

0

54

Snapper 703502

NOZZLE, Water

$6.49

$

Usually ships in 2-12 days

0

56

Snapper 703377

CHUTE, Side Discharge

$52.99

$

In Stock, only 2 left!

0

57

Snapper 707912

MULCH PLUG

Note: (Includes Ref. Nos. 58, 59 & 60)

$71.99

$

In Stock, only 3 left!

0

58

Snapper 703517

SPRING, Torsion

$13.99

$

In Stock, only 3 left!

0

59

Snapper 703529

PIN, Hinge

$10.99

$

In Stock, only 2 left!

0

60

Snapper 703538

BRACKET, Chute Deflector

$9.49

$

In Stock, only 3 left!

0

61

Snapper B4300GS

SCREW, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0
