SP GT 2254 (960220003-00) - Statesman Lawn Tractor (2005) (Southern States) Engine Parts Diagram

Lawn Tractor

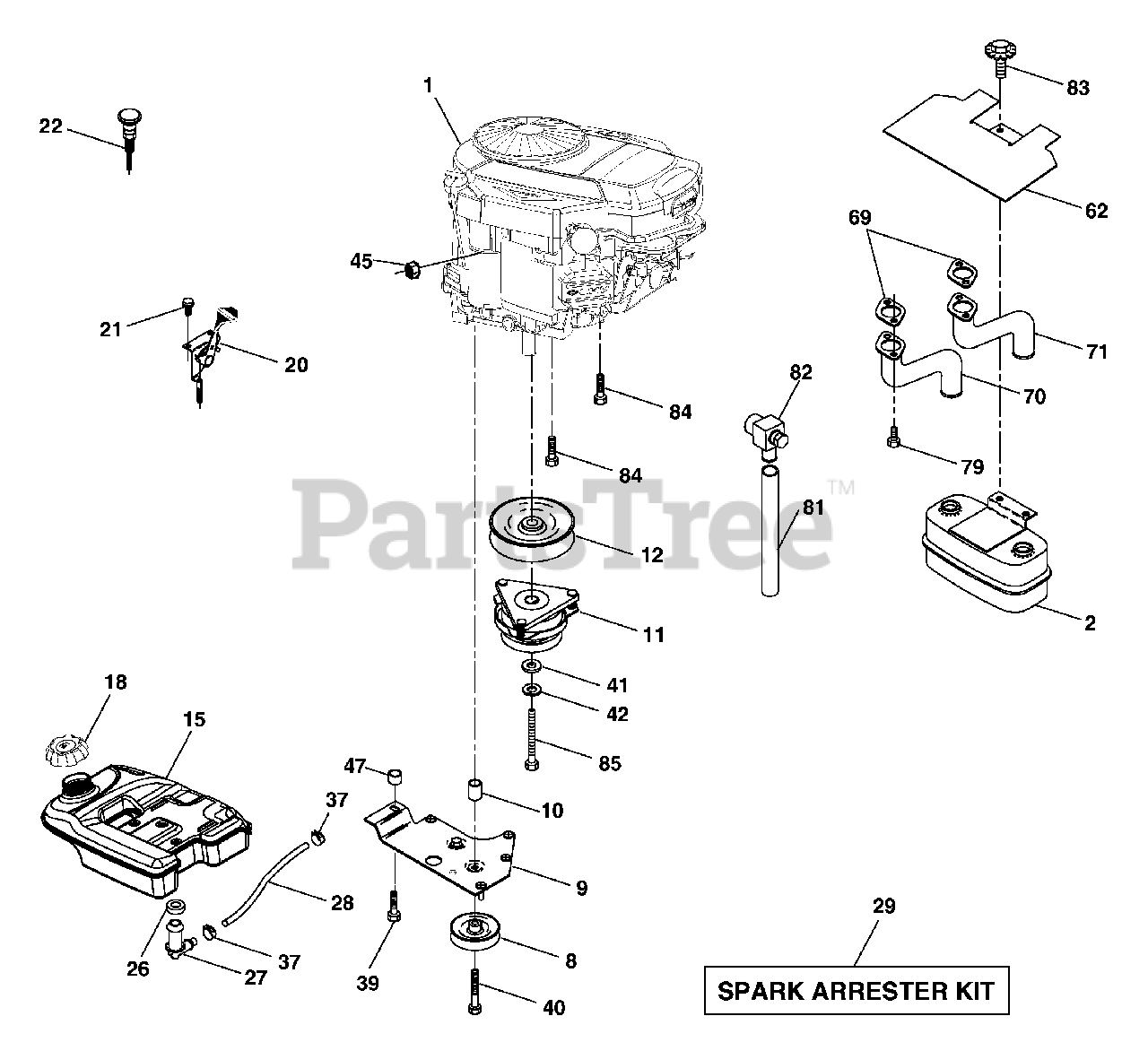

Engine Parts Diagram

  • Title

1

Engine Briggs Model No. 40H777-0241-E1

$

$

Not available

2

Electrolux/AYP 149723

Muffler
(Superseded to 532149723)

$51.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 121361X

Pulley V-Idler
(Superseded to 532121361)

$

$

Not available

9

Electrolux/AYP 177748

Keeper Asm. Belt Engine
(Superseded to 532177748)

$

$

Not available

10

Electrolux/AYP 175287

Bushing
(Superseded to 532175287)

$

$

Not available

11

Electrolux/AYP 179335

Clutch Electric
(Superseded to 532179335)

$250.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 143996

Pulley Engine VGT Elect Clutch
(Superseded to 532143996)

$43.99

$

In Stock, only 4 left!

0

15

Electrolux/AYP 179115

Tank Fuel Rear 5.0 Yt/Gt
(Superseded to 532179115)

$

$

Not available

18

Electrolux/AYP 179124X428

Cap Asm
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 175437X428

Control Throttle
(Superseded to 532175437)

$31.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 596321701)

$3.49

$

In Stock, Qty 15

0

22

Electrolux/AYP 187767X428

Control Choke
(Superseded to 532191596)

$39.99

$

In Stock, Qty 6

0

26

Electrolux/AYP 3645J

Bushing
(Superseded to 532003645)

$4.99

$

In Stock, Qty 11

0

27

Electrolux/AYP 139277

Stem Tank Fuel
(Superseded to 532139277)

$7.99

$

In Stock, only 2 left!

0

28

Electrolux/AYP 188669

Fuel Line
(Superseded to 532188669)

$

$

Not available

29

Electrolux/AYP 137180

Spark Arrester Kit
(Superseded to 532137180)

$

$

Not available

37

Electrolux/AYP 123487X

Clamp Hose
(Superseded to 532123487)

$3.99

$

In Stock, only 4 left!

0

39

Electrolux/AYP 17490636

Screw TT 3/8-16 x 2-1/4 unc
(Superseded to 817490636)

$2.49

$

In Stock, Qty 20+

0

40

Electrolux/AYP 17490664

Screw TT 3/8-16 x 4 unc
(Superseded to 817490664)

$

$

Not available

41

Electrolux/AYP 126197X

Washer 1-1/2 OD x 15/32 ID x .250
(Superseded to 532126197)

$7.99

$

In Stock, only 4 left!

0

42

Electrolux/AYP 10040700

Washer Lock 7/16
(Superseded to 810040700)

$3.49

$

In Stock, Qty 19

0

45

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

47

Electrolux/AYP 175288

Bushing
(Superseded to 532175288)

$

$

Not available

62

Electrolux/AYP 146629

Shield Heat Muffler
(Superseded to 532434017)

$

$

Not available

69

Electrolux/AYP 165391

Gasket
(Superseded to 532165391)

$4.99

$

In Stock, Qty 20+

0

70

Electrolux/AYP 176069

Tube Exhaust LH
(Superseded to 532176069)

$

$

Not available

71

Electrolux/AYP 176070

Tube Exhaust RH
(Superseded to 532176070)

$

$

Not available

79

Electrolux/AYP 183906

Screw Socket Head
(Superseded to 532183906)

$

$

Not available

81

Electrolux/AYP 188800

Tube Drain Oil Easy
(Superseded to 532188800)

$

$

Not available

82

Electrolux/AYP 188799

Valve Oil Drain
(Superseded to 532188799)

$

$

Not available

83

Electrolux/AYP 171877

Bolt 5/16-18 unc x 3/4 W/ Sems
(Superseded to 532171877)

$5.99

$

In Stock, only 2 left!

0

84

Electrolux/AYP 17060624

Screw 3/8-16 x 1-1/2
(Superseded to 817060624)

$5.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 179953

Bolt Hex 7/16-20 x 3.75 Gr. 5
(Superseded to 532179953)

$

$

Not available
