SP GT 22H54 (960220004-00) - Statesman Lawn Tractor (2005) (Southern States) Seat Assembly Parts Diagram

Lawn Tractor

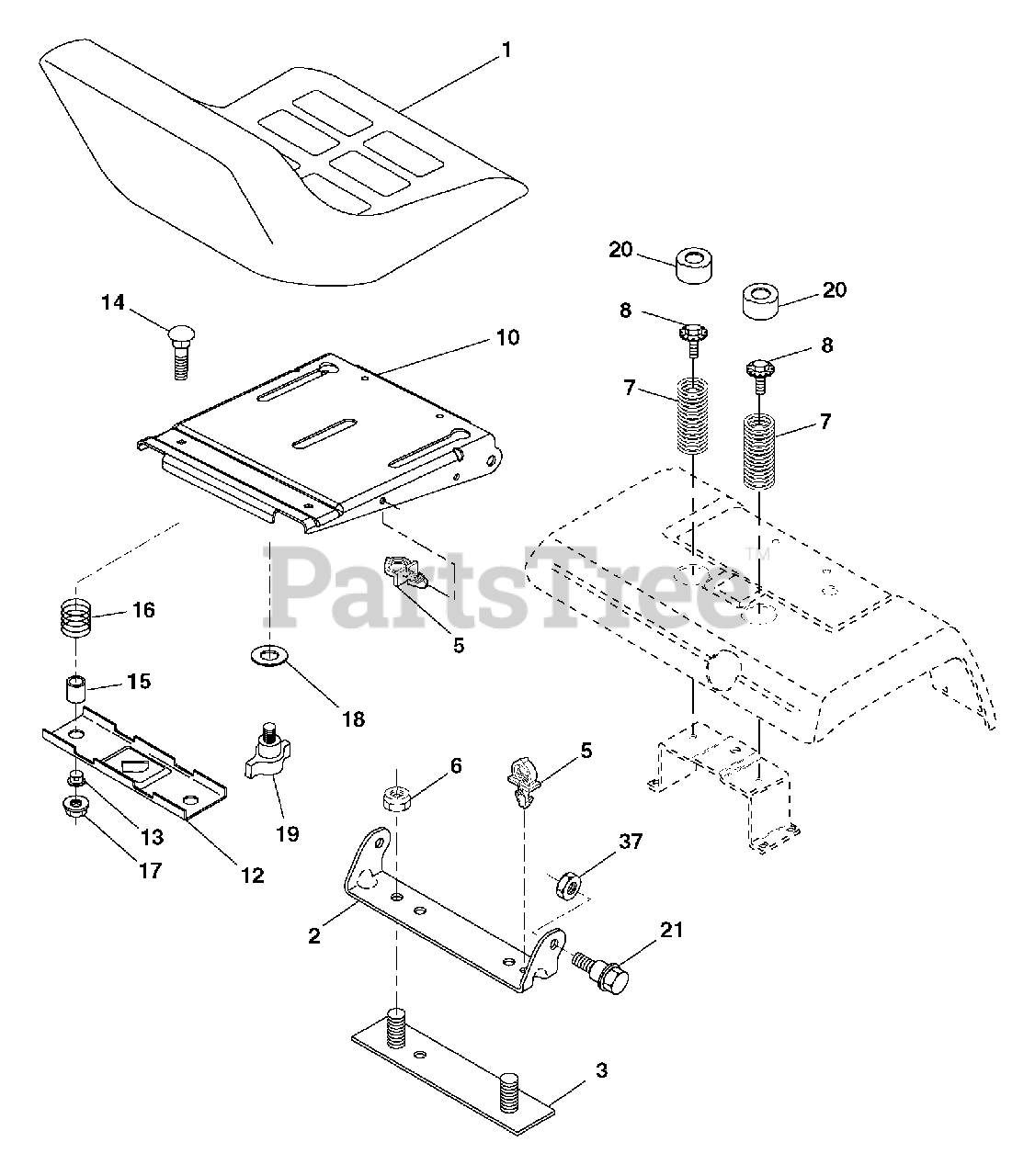

Seat Assembly Parts Diagram

  • Title

1

Electrolux/AYP 188706

Seat
(Superseded to 583171701)

$

$

Not available

2

Electrolux/AYP 180166

Bracket, Pivot Seat
(Superseded to 532180166)

$10.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 140675

Strap Asm.
(Superseded to 532140675)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 145006

Clip, Push-In Hinged
(Superseded to 532145006)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73800600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 124181X

Spring, Seat Cprsn.
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

8

Electrolux/AYP 171877

Bolt 5/16-18 unc x 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, Qty 8

0

10

Electrolux/AYP 180186

Pan, Seat
(Superseded to 583227501)

$14.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 174648

Bracket, Mounting Switch
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 121248X

Bushing, Snap
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 72050412

Bolt, Carriage 1/4-20 x 1-1/2
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 121249X

Spacer, Split
(Superseded to 532121249)

$6.49

$

In Stock, Qty 5

0

16

Electrolux/AYP 123740X

Spring, Cprsn.
(Superseded to 532123740)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 123976X

Nut, Lock 1/4 Lg. Flg. Gr. 5
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 19171912

Washer 17/32 x 1-3/16 x 12 Ga.
(Superseded to 819171912)

$7.49

$

In Stock, only 2 left!

0

19

Electrolux/AYP 166369

Knob, Seat
(Superseded to 532166369)

$10.99

$

In Stock, only 3 left!

0

20

Electrolux/AYP 124238X

Cap, Spring Seat Blk
(Superseded to 532124238)

$

$

Not available

21

Electrolux/AYP 171852

Bolt 5/16-18 unc-2A
(Superseded to 532171852)

$4.99

$

In Stock, Qty 14

0

37

Electrolux/AYP 73800500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
