SPCE 1640-A - Snapper 16" Chainsaw Body Group Parts Diagram

16" Chainsaw

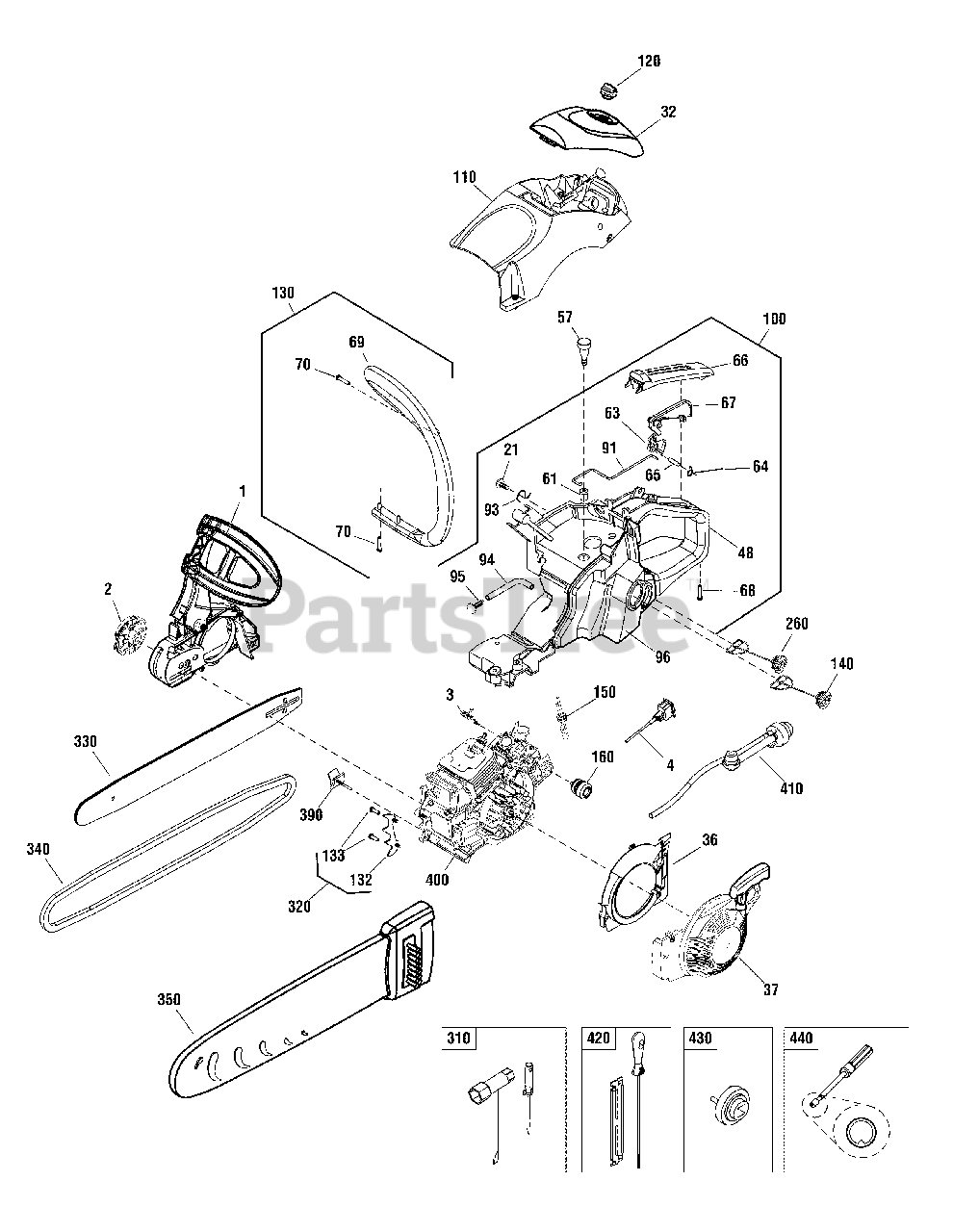

Body Group Parts Diagram

  • Title

1

-----

CHAIN BRAKE ASSEMBLY, Red

Note: (Not available in Red. Order CS00222A)

$

$

Not available

1

Snapper CS00222A

CHAIN BRAKE ASSEMBLY, Silver
(Superseded to 706669)

$79.99

$

Usually ships in 2-12 days

0

2

Snapper CS00440A

EASY TENSION RATCHET ASSEMBLY
(Superseded to 706698)

$31.99

$

Usually ships in 2-12 days

0

3

Snapper CS00392A

SPRING
(Superseded to 706762)

$5.99

$

Usually ships in 2-12 days

0

4

Snapper CS00399A

SWITCH, Off
(Superseded to 706771)

$9.99

$

Usually ships in 2-12 days

0

21

-----

SCREW, ST4.2 x 9.5

$

$

Not available

32

-----

COVER, Air Filter, Pewter

Note: (Not available in Red. Order CS00259A)

$

$

Not available

32

Snapper CS00259A

COVER, Air Filter, Blue
(Superseded to 706685)

$17.99

$

Usually ships in 2-12 days

0

36

Snapper CS00268A

COVER, Guide Flow
(Superseded to 706689)

$7.99

$

Usually ships in 2-12 days

0

37

-----

STARTER ASSEMBLY, Red

Note: (Not available in Red. Order CS00269A)

$

$

Not available

37

Snapper CS00269A

STARTER ASSEMBLY, Silver
(Superseded to 706766)

$63.99

$

Usually ships in 2-12 days

0

48

-----

BASE ASSEMBLY

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

57

Snapper CS00074A

BALANCER ASSEMBLY
(Superseded to 706655)

$10.99

$

Usually ships in 2-12 days

0

61

-----

GROMMET

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

63

-----

TRIGGER

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

64

-----

SPRING, Torsion, Trigger

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

65

-----

PIN, 5 x 24

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

66

Snapper CS00313A

COVER, Rear Handle
(Superseded to 706690)

Note: (Not a serviceable part. Order Ref. No. 100)

$25.99

$

Usually ships in 2-12 days

0

67

-----

PRESENCE TRIGGER

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

68

-----

SCREW, ST4.8 x 25

$

$

Not available

69

-----

HANDLE ASSEMBLY, Front

Note: (Not a serviceable part. Order Ref. No. 130)

$

$

Not available

70

-----

SCREW, Tapping, ST4.8 x 25

Note: (Not a serviceable part. Order Ref. No. 130)

$

$

Not available

91

-----

THROTTLE LINK

$

$

Not available

93

-----

CIRCLIP

$

$

Not available

94

-----

TUBE, Vent, 3.5 x 6.5 x 80

$

$

Not available

95

-----

SCREW, ST4.2 x 14

$

$

Not available

96

-----

TANK, Fuel

$

$

Not available

100

-----

HANDLE ASSEMBLY, Rear, Red

Note: (Not available in Red. Order CS00400A)

$

$

Not available

100

Snapper CS00400A

HANDLE ASSEMBLY, Rear, Silver
(Superseded to 706714)

Note: (Includes Ref. Nos. 21, 48, 61, 63, 64, 65, 66, 67, 68, 91, 93, 94 & 95)

$72.99

$

Usually ships in 2-12 days

0

110

-----

COVER ASSEMBLY, Upper, Charcoal Gray

Note: (Not available in Charcoal Grey. Order CS00391A)

$

$

Not available

110

Snapper CS00391A

COVER ASSEMBLY, Upper, Blue
(Superseded to 706683)

$25.99

$

Usually ships in 2-12 days

0

120

Snapper CS00199A

KNOB, Air Filter
(Superseded to 706729)

$7.49

$

Usually ships in 2-12 days

0

130

Snapper CS00396A

HANDLE ASSEMBLY, Front
(Superseded to 706712)

Note: (Includes Ref. Nos. 69 & 70)

$44.99

$

Usually ships in 2-12 days

0

132

-----

BUMPER, Spiked

Note: (Not a serviceable part. Order Ref. No. 320)

$

$

Not available

133

-----

SCREW, M5 x 10

Note: (Not a serviceable part. Order Ref. No. 320)

$

$

Not available

140

Snapper CS00297A

FUEL CAP ASSEMBLY
(Superseded to 706706)

$11.99

$

Usually ships in 2-12 days

0

150

Snapper CS00289A

FUEL FILTER ASSEMBLY
(Superseded to 706709)

$17.99

$

Usually ships in 2-12 days

0

160

Snapper CS00394A

SHOCK BUMPER ASSEMBLY
(Superseded to 706751)

$5.99

$

Usually ships in 2-12 days

0

260

Snapper CS00301A

CAP, Oil
(Superseded to 706663)

$13.99

$

Usually ships in 2-12 days

0

310

Snapper CS00216A

TOOL PACK
(Superseded to 706776)

$38.99

$

Usually ships in 2-12 days

0

320

Snapper CS00209A

SPIKED BUMPER ASSEMBLY
(Superseded to 706761)

Note: (Includes Ref. Nos. 132 & 133)

$14.99

$

Usually ships in 2-12 days

0

330

Snapper CS00005A

BAR, Oregon, 16"
(Superseded to 706657)

$109.99

$

Usually ships in 2-12 days

0

340

Snapper CS00010A

CHAIN, Oregon, 16" - 3/8"
(Superseded to 706672)

$99.99

$

Usually ships in 2-12 days

0

350

Snapper CS00195A

COVER, Bar
(Superseded to 706686)

$28.99

$

Usually ships in 2-12 days

0

390

Snapper CS00405A

CHAIN CATCH ASSEMBLY
(Superseded to 706671)

$5.99

$

Usually ships in 2-12 days

0

400

-----

ENGINE ASSEMBLY, 40cc

Note: (Not a serviceable part.)

$

$

Not available

410

Snapper CS00397A

PRIMER BULB
(Superseded to 706744)

$16.99

$

Usually ships in 2-12 days

0

420

Snapper CS00388A

* FILE & GUIDE PACK, 5/32"
(Superseded to 706645)

$17.99

$

Usually ships in 2-12 days

0

430

Snapper CS00409A

* TOOL, Clutch Removal
(Superseded to 706647)

$294.99

$

Usually ships in 2-12 days

0

440

Snapper TL18068A

* TOOL, Carburetor Adjustment
(Superseded to 706646)

$18.99

$

Usually ships in 2-12 days

0
