SPCE 1640-A - Snapper 16" Chainsaw Engine Group Parts Diagram

16" Chainsaw

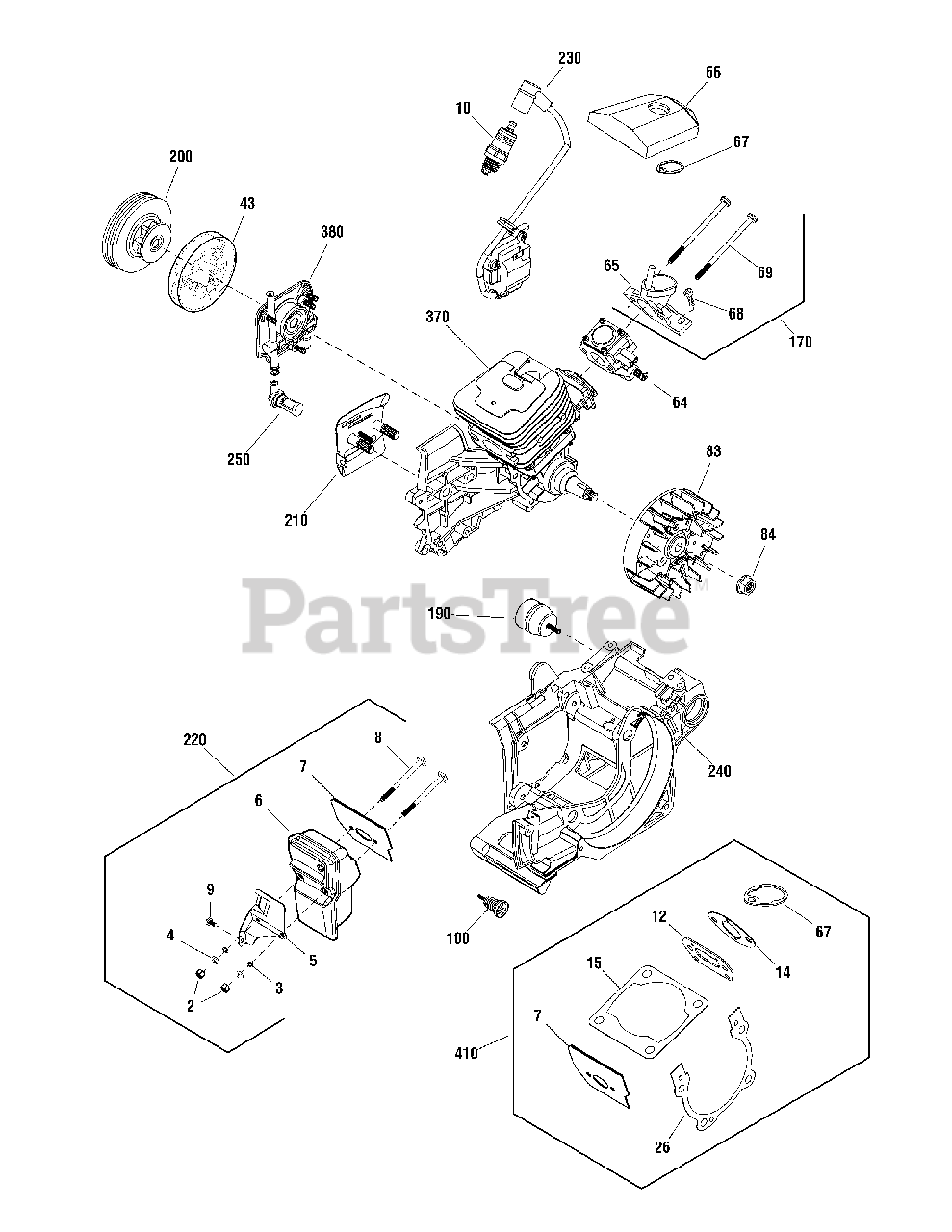

Engine Group Parts Diagram

  • Title

2

-----

NUT, M5

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

3

-----

WASHER, Split Lock, 5

Note: (Not a serviceable part. Order corresponding Kit)

$

$

Not available

4

-----

WASHER, 5

Note: (Not a serviceable part. Order Ref. No. 170)

$

$

Not available

5

-----

PLATE, Silencer

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

6

-----

MUFFLER

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

7

-----

GASKET, Muffler

Note: (Not a serviceable part. Order corresponding Kit)

$

$

Not available

8

-----

SCREW, Muffler

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

9

-----

SCREW, M5 x 12

Note: (Not a serviceable part. Order Ref. No. 410)

$

$

Not available

10

Snapper RCJ7Y

SPARK PLUG, Champion
(Superseded to 706759)

$20.99

$

Usually ships in 2-12 days

0

12

-----

GASKET, Air Intake

Note: (Not a serviceable part. Order Ref. No. 410)

$

$

Not available

14

-----

GASKET, Carburetor

Note: (Not a serviceable part. Order Ref. No. 410)

$

$

Not available

15

-----

GASKET, Cylinder

Note: (Not a serviceable part. Order Ref. No. 410)

$

$

Not available

26

-----

GASKET, Crank Case

Note: (Not a serviceable part. Order Ref. No. 410)

$

$

Not available

43

Snapper CS00369A

CLUTCH
(Superseded to 706678)

$7.99

$

Usually ships in 2-12 days

0

64

Snapper CS00317A

CARBURETOR, Walboro WT-840A
(Superseded to 706665)

$95.99

$

Usually ships in 2-12 days

0

65

-----

SOCKET, Air Intake

Note: (Not a serviceable part. Order Ref. No. 170)

$

$

Not available

66

Snapper CS00260A

AIR FILTER
(Superseded to 706649)

$7.99

$

Usually ships in 2-12 days

0

67

-----

GASKET, Air Filter

Note: (Not a serviceable part. Order corresponding Kit)

$

$

Not available

68

-----

SCREW, ST4.8 x 16

Note: (Not a serviceable part. Order Ref. No. 170)

$

$

Not available

69

-----

SCREW, Carburetor

Note: (Not a serviceable part. Order Ref. No. 170)

$

$

Not available

83

Snapper CS00368A

FLYWHEEL
(Superseded to 706704)

$31.99

$

Usually ships in 2-12 days

0

84

CS00175A

NUT, M8

$

$

Not available

100

Snapper CS00401A

SPRING ASSEMBLY
(Superseded to 706763)

$13.99

$

Usually ships in 2-12 days

0

170

Snapper CS00398A

INTAKE MANIFOLD ASSEMBLY
(Superseded to 706719)

Note: (Includes Ref. Nos. 65, 68 & 69)

$11.99

$

Usually ships in 2-12 days

0

190

Snapper CS00393A

SHOCK SEAT ASSEMBLY
(Superseded to 706753)

$8.49

$

Usually ships in 2-12 days

0

200

Snapper CS00408A

CLUTCH CUP ASSEMBLY
(Superseded to 706681)

$27.99

$

Usually ships in 2-12 days

0

210

Snapper CS00406A

DAMPER ASSEMBLY
(Superseded to 706696)

$5.49

$

Usually ships in 2-12 days

0

220

Snapper CS00403A

MUFFLER
(Superseded to 706732)

Note: (Includes Ref. Nos. 2, 3, 4, 5, 6, 7, 8 & 9)

$17.99

$

Usually ships in 2-12 days

0

230

Snapper CS00407A

IGNITION UNIT
(Superseded to 706716)

$43.99

$

Usually ships in 2-12 days

0

240

Snapper CS00395A

BASE ASSEMBLY
(Superseded to 706659)

$29.99

$

Usually ships in 2-12 days

0

250

Snapper CS00384A

FILTER, Oil
(Superseded to 706702)

$7.49

$

Usually ships in 2-12 days

0

370

Snapper CS00404A

SHORT ENGINE, 40cc
(Superseded to 706755)

$245.99

$

Usually ships in 2-12 days

0

380

Snapper CS00429A

OIL PUMP ASSEMBLY
(Superseded to 706739)

$42.99

$

Usually ships in 2-12 days

0

410

Snapper CS00444A

KIT, Gaskets
(Superseded to 706722)

Note: (Includes Ref. Nos. 7, 12, 14, 15, 26 & 67)

$14.99

$

Usually ships in 2-12 days

0
