Speed ZTR 30 (968999545) - Dixon 30" Speed ZTR Zero-Turn Mower (2007) PARK BRAKE ASSEMBLY Parts Diagram

30" SpeedZTR Zero-Turn Mower

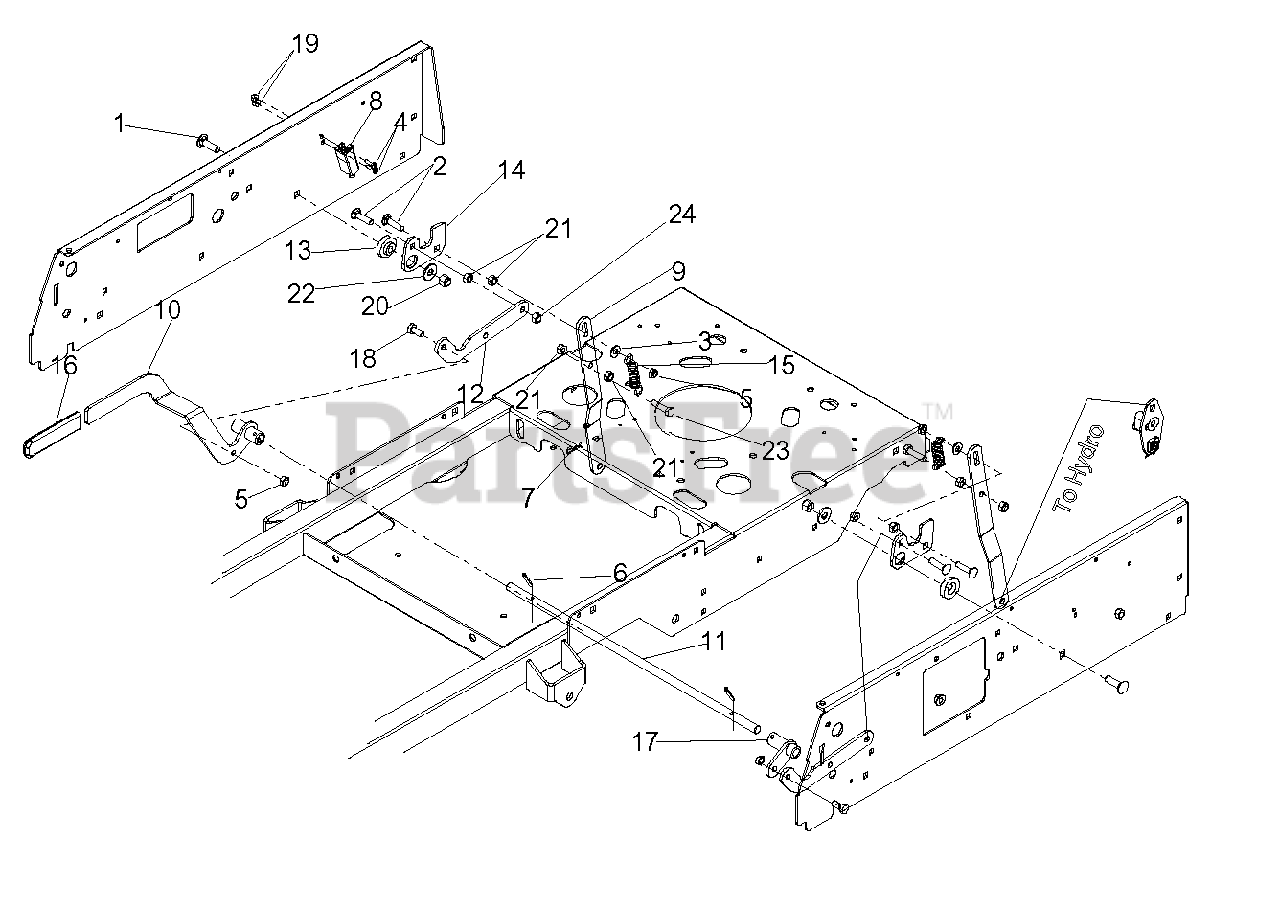

PARK BRAKE ASSEMBLY Parts Diagram

  • Title

1

Dixon 539100413

RHSNB 3/8-16 X 1-1/4

$

$

Not available

2

Dixon 539100472

BOLT, CARRIAGE 5/16X1-1/4

$

$

Not available

3

Dixon 539115533

5/16STD FL WASH TYPA
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

5

Dixon 539115617

5/16-18 THIN PROF NY

$

$

Not available

6

Dixon 539115668

ROLL PIN 3/16 X 1-1/4

$

$

Not available

7

Dixon 539115680

COTTER HP .08 DIA X 1.19

$

$

Not available

8

Dixon 539101080

SWITCH, INTERLOCK

$23.99

$

In Stock, Qty 20+

0

9

Dixon 539120163

LWR BRAKE LINK

$

$

Not available

10

Dixon 539120166

BRAKE HANDLE DRILLED

$

$

Not available

11

Dixon 539120167

BRAKE ROD

$

$

Not available

12

Dixon 539120168

UPPER BRAKE LINK

$

$

Not available

13

Dixon 539120220

BRAKE ARM PIVOT

$

$

Not available

14

Dixon 539120221

BRAKE PIVOT

$

$

Not available

15

Dixon 539120247

SPRING

$

$

Not available

16

Dixon 539120921

GRIP BRAKE HANDLE

$

$

Not available

17

Dixon 539121335

BRAKE ARM DRILLED BLK

$

$

Not available

18

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

19

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

20

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

21

Dixon 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

22

Dixon 539990517

WASHER 3/8 FLAT

$1.99

$

Usually ships in 3-10 days

0

23

Dixon 539990627

HCS 5/16C X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

24

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0
