Speed ZTR 30 (968999715) - Dixon 30" Speed ZTR Zero-Turn Mower (2008) CHASSIS / FRAME Parts Diagram

30" SpeedZTR Zero-Turn Mower

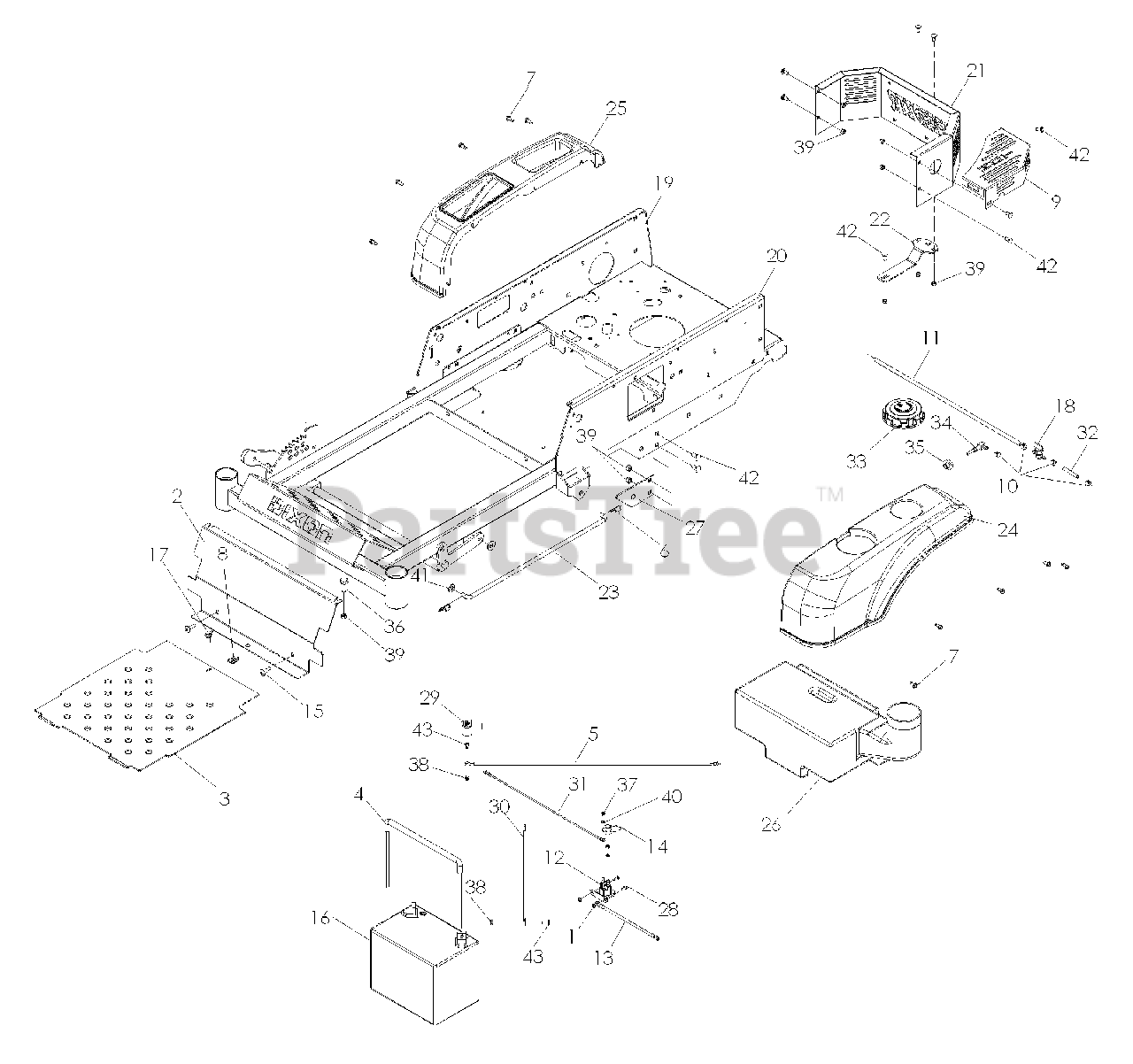

CHASSIS / FRAME Parts Diagram

  • Title

1

Dixon 539109347

WASHER 1/4 EXTLW STAR ZD

$0.99

$

Usually ships in 3-10 days

0

2

Dixon 539114739

FRONT PANEL, W/DECALS

$

$

Not available

3

Dixon 539114740

FOOT PLATE, W/DECALS

$

$

Not available

4

Dixon 539131209

BATTERY TIE DOWN ASSEMBLY

$8.99

$

Usually ships in 3-10 days

0

5

Dixon 539115323

BATTERY CABLE

$15.99

$

In Stock, only 1 left!

0

6

Dixon 539115501

PIN, COTTER 1 3/4

$

$

Not available

7

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

8

Dixon 539110813

1/4C - U TYPE RETAINER

$3.99

$

Usually ships in 3-10 days

0

9

Dixon 539131602

HEAT SHIELD, MUFFLER

$60.99

$

Usually ships in 3-10 days

0

10

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

11

Dixon 539115743

HOSE 1/4 X 21"
(Superseded to 539115707)

$8.99

$

In Stock, only 2 left!

0

12

Dixon 539115774

SOLENOID

$31.99

$

Usually ships in 3-10 days

0

13

Dixon 539115799

BATTERY GROUND CABLE

$7.49

$

Usually ships in 3-10 days

0

14

Dixon 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 539117399

5/16-18X1 FLANGED SCREW

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539102436

BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

17

Dixon 539118691

1/4-20 X 3/4 WING BOLT

$6.49

$

Usually ships in 3-10 days

0

18

Dixon 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

19

Dixon 539131312

SIDE PLATE, RH

Note: RH

$47.99

$

Usually ships in 3-10 days

0

20

Dixon 539131311

SIDE PLATE, LH

Note: LH

$66.99

$

Usually ships in 3-10 days

0

21

Dixon 539131603

REAR GUARD SPD 30

$94.99

$

Usually ships in 3-10 days

0

22

Dixon 539120176

BRACE

$

$

Not available

23

Dixon 539120180

ROD TRAILING ARM

$24.99

$

Usually ships in 3-10 days

0

24

Dixon 539120192

FENDER LH

Note: LH

$31.99

$

Usually ships in 3-10 days

0

25

Dixon 539120193

FENDER RH

Note: RH

$34.99

$

Usually ships in 3-10 days

0

26

Dixon 539120195

FUEL TANK
(Superseded to 574790702)

$85.99

$

Usually ships in 3-10 days

0

27

Dixon 539120218

DOUBLER PLATE

$10.99

$

Usually ships in 3-10 days

0

28

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

29

Dixon 539121331

TERMINAL COVER

$1.99

$

Usually ships in 3-10 days

0

30

Dixon 539121479

NEGATIVE CABLE 20"

$8.99

$

Usually ships in 3-10 days

0

31

Dixon 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$8.99

$

In Stock, only 2 left!

0

32

Dixon 539121486

HOSE 1/4 X 2"

$3.99

$

Usually ships in 3-10 days

0

33

Dixon 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

In Stock, Qty 7

0

34

Dixon 539124804

ELBOW W/FILTER

$

$

Not available

35

Dixon 539126217

TANK FITTING

$

$

Not available

36

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

37

Dixon 539991112

NUT 1/4-20 JAM

$3.99

$

In Stock, only 4 left!

0

38

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

39

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

40

Dixon 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

41

Dixon 539990250

WASHER 1/2" FLAT

$1.49

$

Usually ships in 3-10 days

0

42

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

43

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

Dixon 539120189

WIRE LOOM

Note: NOT SHOWN

$

$

Not available

Dixon 539121074

GROUND ADAPTER

Note: NOT SHOWN

$24.99

$

Usually ships in 3-10 days

0
