Speed ZTR 30 CA (966611102) - Dixon 30" Speed ZTR Zero-Turn Mower (2012-06) FUEL SYSTEM Parts Diagram

30" SpeedZTR Zero-Turn Mower

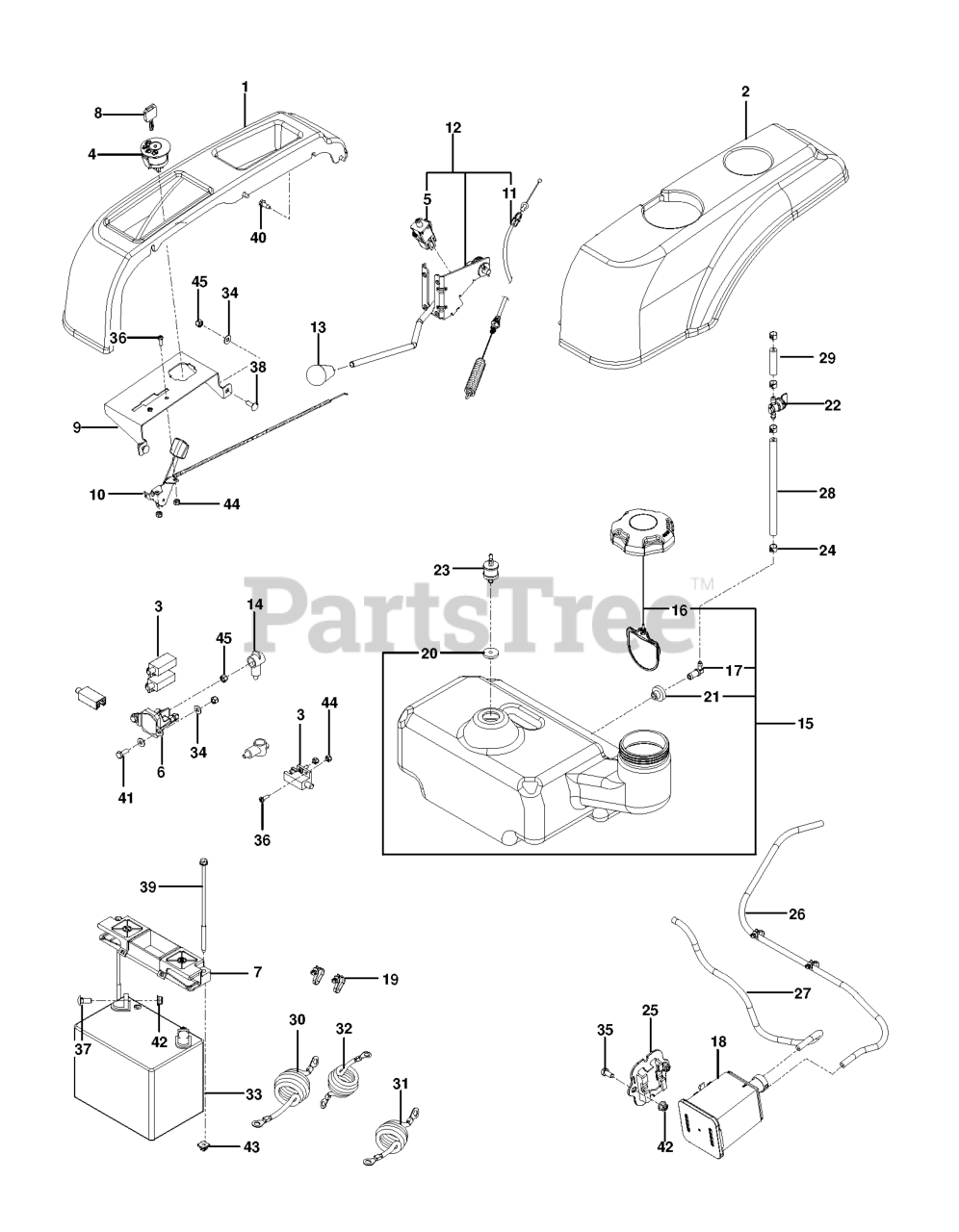

FUEL SYSTEM Parts Diagram

  • Title

1

Dixon 539120193

FENDER RH

$56.99

$

Usually ships in 3-10 days

0

2

Dixon 539120192

FENDER LH

$56.99

$

Usually ships in 3-10 days

0

3

Dixon 532109553

No Description Available
(Superseded to 539101080)

$20.99

$

In Stock, only 1 left!

0

4

Dixon 539107541

IGNITION SWITCH
(Superseded to 532175566)

$28.99

$

In Stock, Qty 20+

0

5

Dixon 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 12

0

6

Dixon 539101714

SOLENOID

$28.99

$

In Stock, Qty 20+

0

7

Dixon 539107628

BATTERY HOLD DOWN

$6.99

$

In Stock, only 2 left!

0

8

Dixon 539107544

OBSOLETE - KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 20+

0

9

525598602

No Description Available

$

$

Not available

10

Dixon 539120222

THROTTLE CABLE

$

$

Not available

11

Dixon 585053801

No Description Available

$43.99

$

In Stock, only 2 left!

0

12

Dixon 585057901

No Description Available

$68.99

$

In Stock, only 2 left!

0

13

Dixon 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 5

0

14

Dixon 539116400

TERMINAL COVER-SM

$

$

Not available

15

Dixon 576646403

FUEL TANK ASM SMALL

$262.99

$

Usually ships in 3-10 days

0

16

Dixon 575018101

CAP, FUEL
(Superseded to 575018103)

$37.99

$

In Stock, only 2 left!

0

17

Dixon 539110432

OBSOLETE - STEM, FUEL TANK
(Superseded to 532139277)

$7.99

$

In Stock, only 2 left!

0

18

Dixon 532414114

CANNISTER, CARBON

$68.99

$

Usually ships in 3-10 days

0

19

Dixon 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.49

$

In Stock, only 1 left!

0

20

Dixon 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 9

0

21

Dixon 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 16

0

22

Dixon 539916325

FUEL VALVE

$13.99

$

In Stock, only 2 left!

0

23

Dixon 576618101

VALVE.FUEL.CHECK

$29.99

$

In Stock, Qty 16

0

24

Dixon 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

25

Dixon 575242701

BRACKET, CANISTER

$

$

Not available

26

Dixon 575437802

FUEL LINE 33"
(Superseded to 575437801)

$17.99

$

Usually ships in 3-10 days

0

27

Dixon 574521305

HOSE, FUEL, 3/16" X 20"

$17.99

$

Usually ships in 3-10 days

0

28

Dixon 539115736

HOSE 1/4 X 8

$7.99

$

Usually ships in 3-10 days

0

29

Dixon 539121486

HOSE 1/4 X 2"

$

$

Not available

30

Dixon 539104974

POST.CABLE LONG

$

$

Not available

31

Dixon 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$11.99

$

In Stock, Qty 12

0

32

Dixon 539110068

BATTERY CABLE, NEGATIVE

$13.99

$

Usually ships in 3-10 days

0

33

Dixon 539102436

OBSOLETE - BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

34

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

35

Dixon 539108392

OBSOLETE - HCS 5/16-18 X 5/8 GR 5 ZD
(Superseded to 596031601)

$3.49

$

In Stock, Qty 18

0

36

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.49

$

In Stock, only 3 left!

0

37

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

38

Dixon 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.49

$

In Stock, only 3 left!

0

39

Dixon 539107632

BOLT - 1/4-20 X 7.5

$

$

Not available

40

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

41

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

42

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 11

0

43

Dixon 539107629

PUSH NUT-NYLON

$3.49

$

In Stock, only 1 left!

0

44

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

45

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

Dixon 574658201

HARNESS, WIRING

Note: NOT SHOWN

$159.99

$

Usually ships in 3-10 days

0
