Speed ZTR 36 (965882201) - Dixon 36" Speed ZTR Zero-Turn Mower (2009-05) STEERING Parts Diagram

36" SpeedZTR Zero-Turn Mower

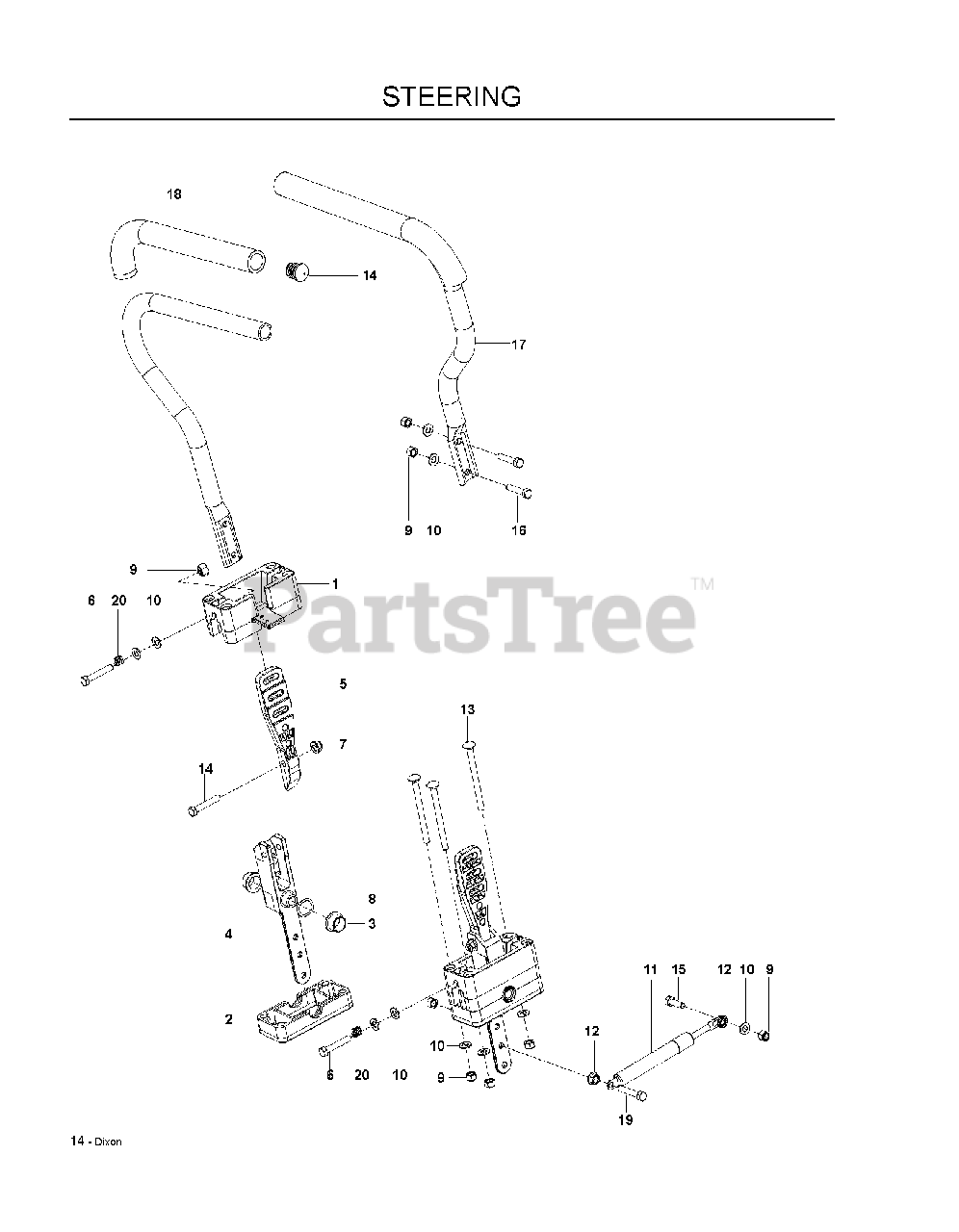

STEERING Parts Diagram

  • Title

1

Dixon 539131517

BLOCK, UPPER

Note: UPPER

$31.99

$

In Stock, only 3 left!

0

2

Dixon 539131519

BLOCK, LOWER

Note: LOWER

$17.99

$

In Stock, only 2 left!

0

3

Dixon 539131518

BEARING, FLANGE

Note: FLANGE

$13.99

$

In Stock, Qty 9

0

4

Dixon 522452901

PIVOT.SECTION.DRIVE.CONTROL

$26.99

$

In Stock, Qty 5

0

5

Dixon 539131521

MOUNT, DR CNTRL HANDLE
(Superseded to 576452801)

$37.99

$

In Stock, Qty 11

0

6

Dixon 539108395

HCS 5/16-18 X 2 TPBLT GR 5 ZD

$

$

Not available

7

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

8

Dixon 539133007

WASHER, .825 X 1.087, WAVE

$3.49

$

In Stock, Qty 20+

0

9

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

10

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

Note: SAE FLT

$3.49

$

In Stock, Qty 18

0

11

Dixon 539102720

DAMPENER

$79.99

$

In Stock, Qty 14

0

12

Dixon 539990585

NUT 5/16C WHIZ

$

$

Not available

13

Dixon 510422601

RHSNB 5/16-18 X 4 GR 5 ZD

$3.49

$

In Stock, only 1 left!

0

14

Dixon 539122636

END PLUG 15/16` (BLACK)

$4.99

$

Usually ships in 3-10 days

0

15

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

16

Dixon 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.99

$

Usually ships in 3-10 days

0

17

Dixon 522524303

ASSEMBLY, DRIVE LEVER
(Superseded to 579036901)

$

$

Not available

18

Dixon 539122635

GRIP, FOAM (GROUND) 15
(Superseded to 539130894)

$7.99

$

In Stock, only 2 left!

0

19

Dixon 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$5.99

$

Usually ships in 3-10 days

0

20

Dixon 539102845

SPRING

$3.49

$

In Stock, Qty 5

0
