Speed ZTR 36 (968999539) - Dixon 36" Speed ZTR Zero-Turn Mower, 16hp Briggs & Stratton (2007) CASTERS Parts Diagram

36" SpeedZTR Zero-Turn Mower, 16hp Briggs & Stratton

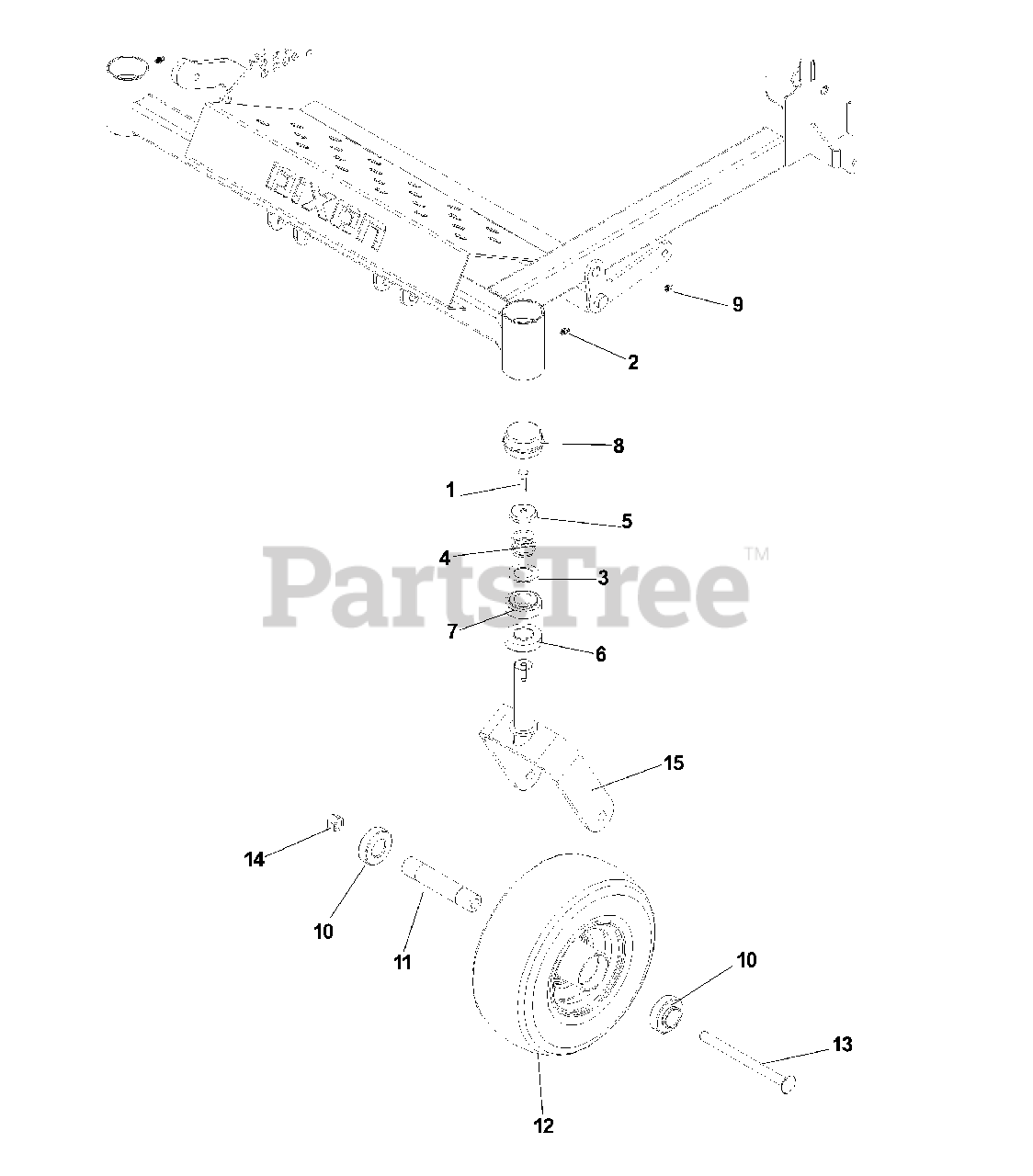

CASTERS Parts Diagram

  • Title

1

Dixon 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

2

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.49

$

In Stock, Qty 12

0

3

Dixon 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

4

Dixon 539115747

SPRING, CASTER

$

$

Not available

5

Dixon 539115749

CASTER.PLUG

$

$

Not available

6

Dixon 539115750

BEARING
(Superseded to 539112660)

$34.99

$

Usually ships in 3-10 days

0

7

Dixon 539117901

BUSHING, CASTER

$11.99

$

Usually ships in 3-10 days

0

8

Dixon 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

In Stock, Qty 13

0

9

Dixon 539118928

GREASE ZERK-1/4"

$

$

Not available

10

Dixon 539119759

BEARING-ECC LOCK
(Superseded to 539115279)

$37.99

$

Usually ships in 3-10 days

0

11

Dixon 539120124

SPACER

$18.99

$

Usually ships in 3-10 days

0

12

Dixon 539120125

CASTER WHEEL AND TIRE

$

$

Not available

13

Dixon 539121159

RHSNB 1/2-13 X 6.50 GR2 ZD

$20.99

$

Usually ships in 3-10 days

0

14

Dixon 539121591

NUT, HEX 1/2-13 W/NYLOK

$

$

Not available

15

Dixon 539123593

CASTER DK BLUE

$

$

Not available
