Speed ZTR 42 (966494901) - Dixon 42" Speed ZTR Zero-Turn Mower (2009-11) STEERING Parts Diagram

42" SpeedZTR Zero-Turn Mower

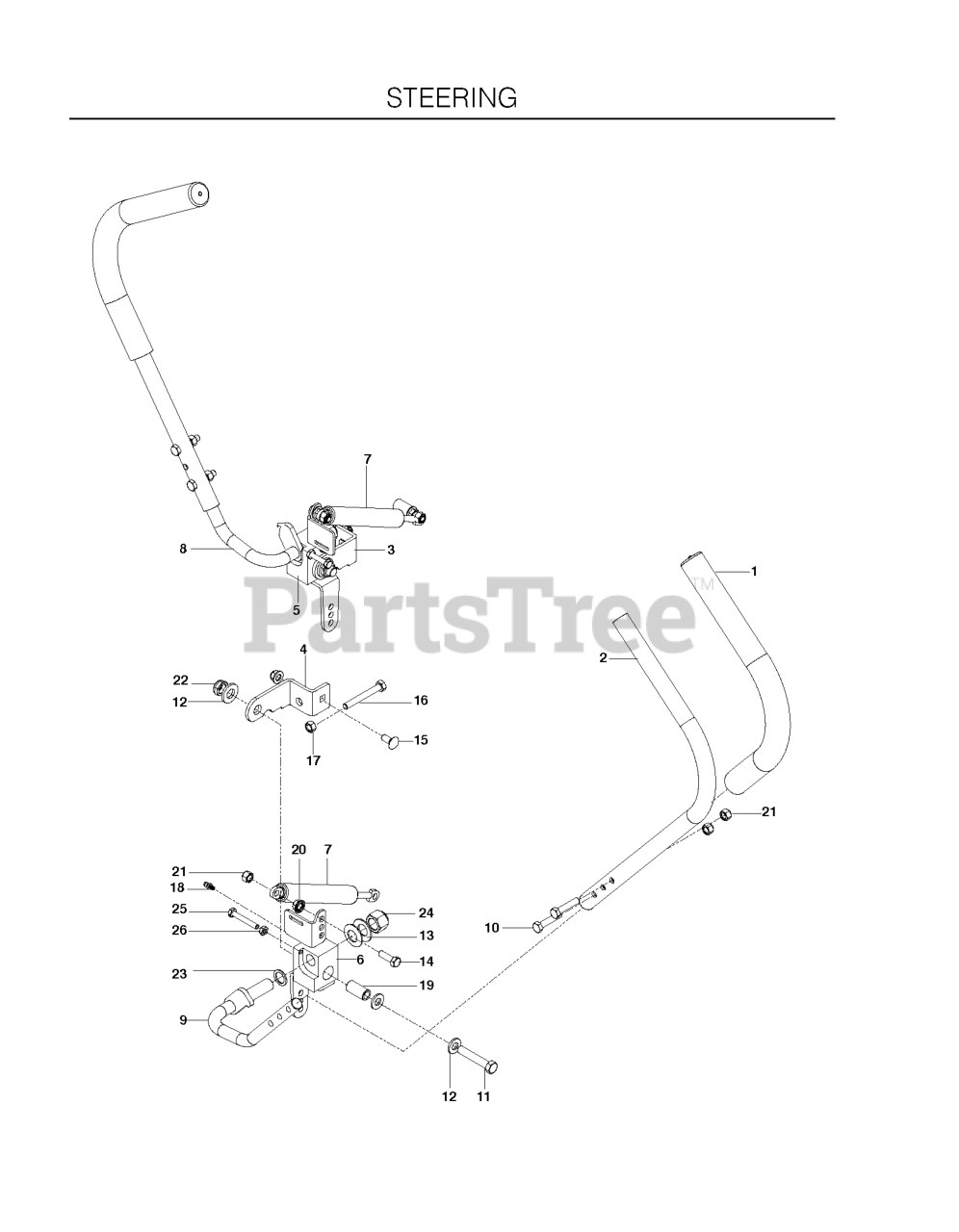

STEERING Parts Diagram

  • Title

1

Dixon 539120899

GRIP

$9.99

$

In Stock, only 1 left!

0

2

Dixon 539120160

LEVER UPPER

$109.99

$

In Stock, only 1 left!

0

3

Dixon 539117949

FORWARD STOP RH

$27.99

$

Usually ships in 3-10 days

0

4

Dixon 539117950

FORWARD STOP LH

$27.99

$

Usually ships in 3-10 days

0

5

Dixon 539120984

PIVOT RH (PLATED)

$78.99

$

Usually ships in 3-10 days

0

6

Dixon 539120983

PIVOT LH (PLATED)

$

$

Not available

7

Dixon 539114453

DAMPENER, DUAL ACTION

$74.99

$

Usually ships in 3-10 days

0

8

Dixon 539120159

LEVER.PLATED.RH

$27.99

$

Usually ships in 3-10 days

0

9

Dixon 539120162

LEVER PLATED LH

$27.99

$

Usually ships in 3-10 days

0

10

Dixon 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.49

$

Usually ships in 3-10 days

0

11

Dixon 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

12

Dixon 539990250

WASHER 1/2" FLAT

$1.49

$

Usually ships in 3-10 days

0

13

Dixon 539911121

WASH 5/8 BEVELED DISC SPRING

$4.99

$

Usually ships in 3-10 days

0

14

Dixon 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

15

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

16

Dixon 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

17

Dixon 539990196

NUT 5/16C HEX

$1.49

$

Usually ships in 3-10 days

0

18

Dixon 539115638

ZERK, 3/16, DRIVE IN

$4.99

$

In Stock, Qty 13

0

19

Dixon 539120956

BUSHING

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Dixon 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, Qty 5

0

23

Dixon 539115570

WASHER-.626IDX.056TK

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 539110340

NUT 5/8-11 NYLOC

$3.99

$

Usually ships in 3-10 days

0

25

Dixon 539991003

BOLT 1/4C X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

26

Dixon 539991112

NUT 1/4-20 JAM

$3.99

$

In Stock, only 4 left!

0
