Speed ZTR 42 (966494901) - Dixon 42" Speed ZTR Zero-Turn Mower (2009-11) WHEELS & TIRES Parts Diagram

42" SpeedZTR Zero-Turn Mower

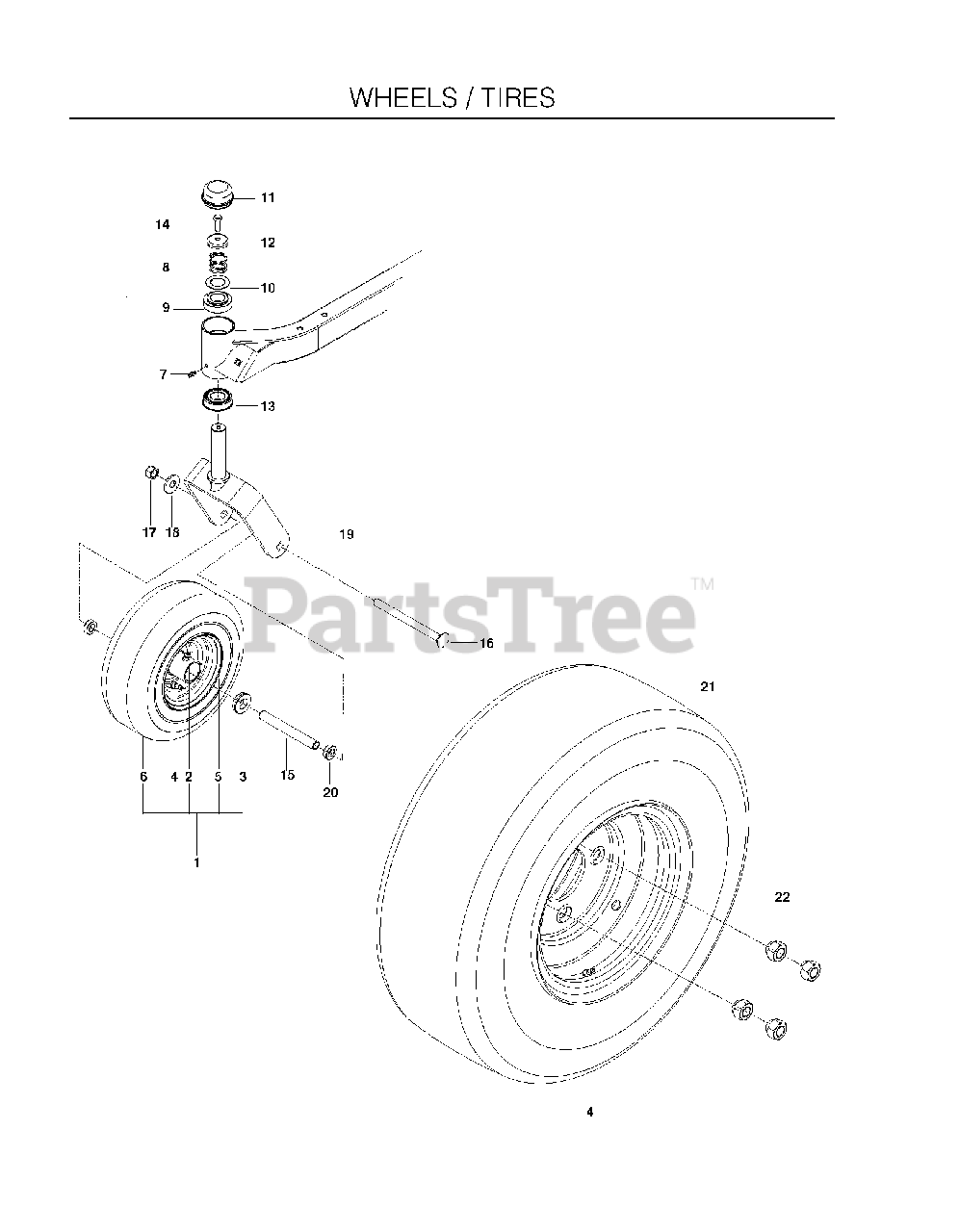

WHEELS & TIRES Parts Diagram

  • Title

1

Dixon 539110333

TIRE COMPLETE
(Superseded to 581199701)

Note: ASSY

$100.99

$

In Stock, Qty 20+

0

2

Dixon 539103300

ZERK

$4.99

$

In Stock, Qty 20+

0

3

Dixon 539102484

BEARING RETAINER

$3.99

$

In Stock, Qty 20+

0

4

Dixon 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

5

Dixon 539106994

RIM

$42.99

$

Usually ships in 3-10 days

0

6

Dixon 539106995

TIRE - 410/350-5
(Superseded to 539114697)

$

$

Not available

7

Dixon 539115638

ZERK, 3/16, DRIVE IN

$4.99

$

In Stock, Qty 13

0

8

Dixon 539115747

SPRING, CASTER

$

$

Not available

9

Dixon 539117901

BUSHING, CASTER

$8.99

$

In Stock, Qty 20+

0

10

Dixon 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

11

Dixon 539102535

GREASE CAP
(Superseded to 595281301)

$3.99

$

In Stock, Qty 20+

0

12

Dixon 539115749

CASTER.PLUG

$

$

Not available

13

Dixon 539112660

BEARING FLANGED

$35.99

$

In Stock, Qty 20+

0

14

Dixon 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

15

Dixon 539105543

SPACER

$10.99

$

Usually ships in 3-10 days

0

16

Dixon 539121159

RHSNB 1/2-13 X 6.50 GR2 ZD

$24.99

$

In Stock, Qty 5

0

17

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

18

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

19

Dixon 539123593

CASTER DK BLUE

$103.99

$

Usually ships in 3-10 days

0

20

Dixon 539114805

SPACER, 5/16"

$12.99

$

In Stock, Qty 13

0

21

Dixon 574383701

WHEEL ASSY REAR 18 X 7.5-8
(Superseded to 581197901)

Note: ASSY

$

$

Not available

22

Dixon 539101173

LUG NUT 1/2F

$

$

Not available
