Speed ZTR 42 (966496301) - Dixon 42" Speed ZTR Zero-Turn Mower (2009-12) SEAT Parts Diagram

42" SpeedZTR Zero-Turn Mower

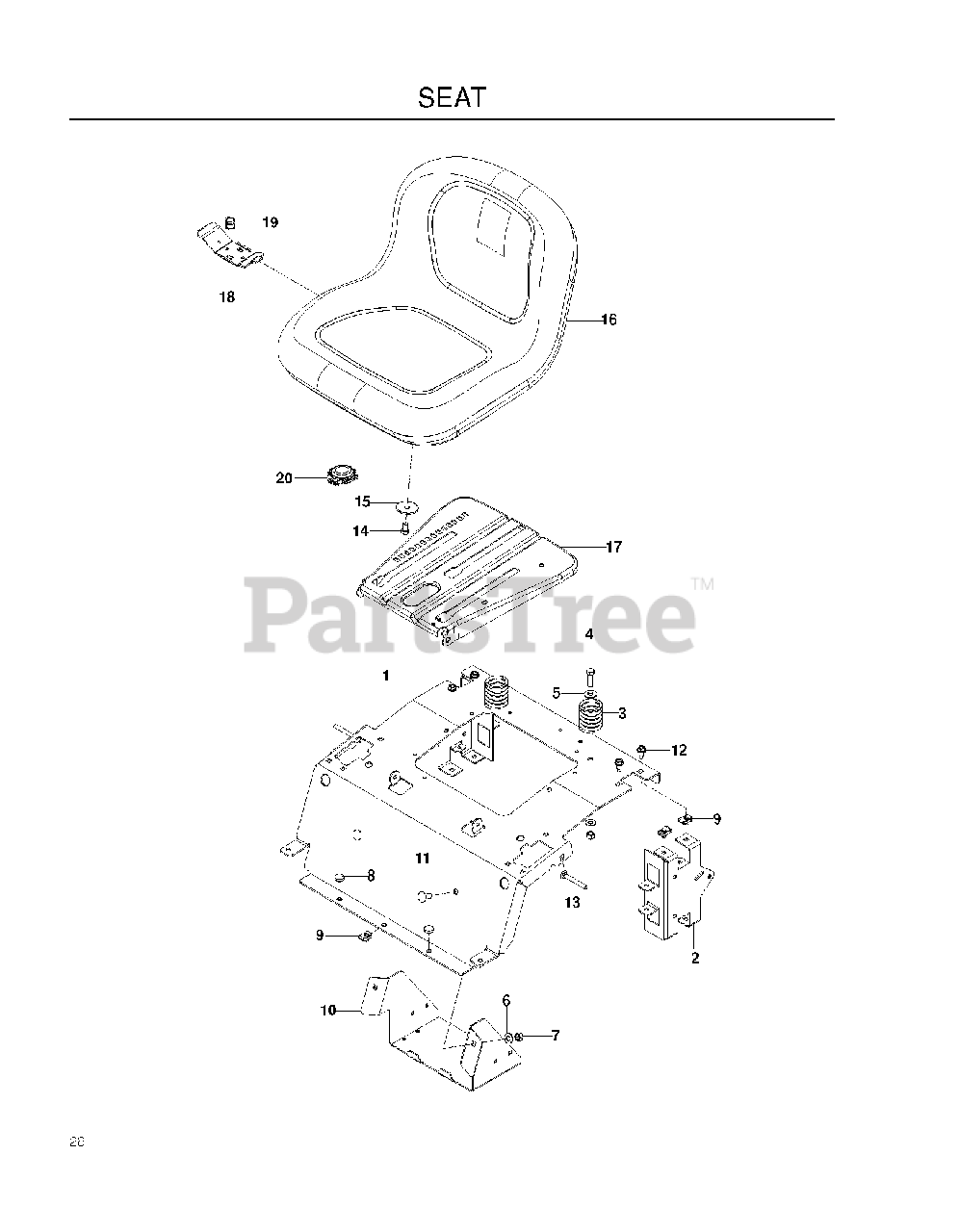

SEAT Parts Diagram

  • Title

1

Dixon 510171904

SUPPORT, SEAT, BLUE

$132.99

$

Usually ships in 3-10 days

0

2

Dixon 574522702

SUPPORT REAR SEAT BLA
(Superseded to 580308202)

$21.99

$

Usually ships in 3-10 days

0

3

Dixon 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

4

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

Usually ships in 3-10 days

0

5

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

6

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

7

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

8

Dixon 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 17

0

9

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 16

0

10

Dixon 510231302

BOX, BATTERY, BLACK

$182.99

$

Usually ships in 3-10 days

0

11

Dixon 539990645

RHSNB 3/8C X 1

$3.99

$

Usually ships in 3-10 days

0

12

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

13

Dixon 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539108503

HCS 3/8-16 X 5/8 GR 5 ZD

$4.99

$

In Stock, only 2 left!

0

15

Dixon 539111897

WASHER, 3/8 SPEC

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 522598901

SEAT,BLACK W/ARMREST PROVISION
(Superseded to 532406625)

$265.99

$

In Stock, only 1 left!

0

17

Dixon 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$26.99

$

In Stock, only 1 left!

0

18

Dixon 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK

$

$

Not available

19

Dixon 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

In Stock, Qty 13

0

20

Dixon 539132140

SWITCH, SEAT N/C

$13.99

$

In Stock, only 3 left!

0
