Speed ZTR 42 (966657701) - Dixon 42" Speed ZTR Zero-Turn Mower (2010-09) IGNITION SYSTEM Parts Diagram

42" SpeedZTR Zero-Turn Mower

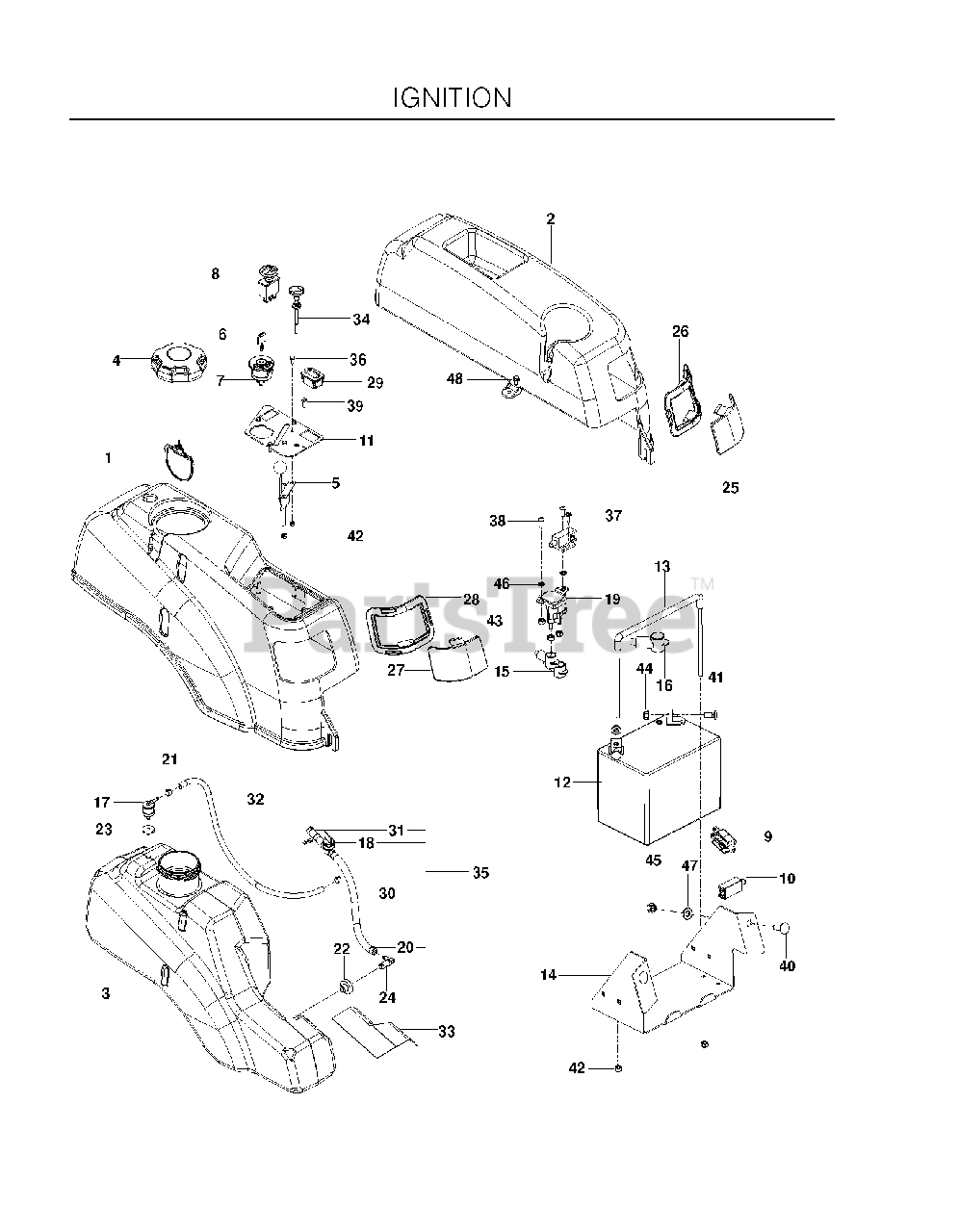

IGNITION SYSTEM Parts Diagram

  • Title

1

Dixon 576370601

FENDER, RT, BLK

$42.99

$

Usually ships in 3-10 days

0

2

Dixon 576370501

FENDER, LT, BLK

$80.99

$

In Stock, only 1 left!

0

3

Dixon 576369401

OBSOLETE - TANK, FUEL, RT-EPA
(Superseded to 589924706)

$157.99

$

Usually ships in 3-10 days

0

4

Dixon 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

In Stock, Qty 6

0

5

Dixon 539112734

THROTTLE CABLE

$31.99

$

Usually ships in 3-10 days

0

6

Dixon 539107544

OBSOLETE - KEY
(Superseded to 532140401)

$6.49

$

In Stock, Qty 20+

0

7

Dixon 539107541

IGNITION SWITCH
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

8

Dixon 539101768

SWITCH, BLADE
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

9

Dixon 539113792

SWITCH, BRAKE 3P

$12.99

$

In Stock, Qty 19

0

10

Dixon 539101080

SWITCH, INTERLOCK

$7.49

$

In Stock, Qty 20+

0

11

Dixon 539112735

No Description Available

$27.99

$

In Stock, only 2 left!

0

12

Dixon 539102436

OBSOLETE - BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

13

Dixon 539131209

BATTERY TIE DOWN ASSEMBLY

$8.99

$

Usually ships in 3-10 days

0

14

Dixon 510231302

BOX, BATTERY, BLACK

$182.99

$

Usually ships in 3-10 days

0

15

Dixon 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

17

Dixon 576618101

VALVE.FUEL.CHECK

$22.99

$

In Stock, Qty 20+

0

18

Dixon 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

19

Dixon 539101714

SOLENOID

$26.99

$

In Stock, Qty 20+

0

20

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

21

Dixon 575436501

CLAMP, HOSE

$6.49

$

In Stock, Qty 5

0

22

Dixon 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 20+

0

23

Dixon 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$2.49

$

In Stock, Qty 20+

0

24

Dixon 539110432

OBSOLETE - STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, Qty 20+

0

25

Dixon 576371101

PANEL, LT

$6.49

$

In Stock, Qty 8

0

26

Dixon 576370901

RING, LT BLK

$4.99

$

In Stock, Qty 8

0

27

Dixon 576371201

PANEL, RT, BLK

$6.49

$

Usually ships in 3-10 days

0

28

Dixon 576371001

RING, TRIM, RT-BLK

$4.99

$

In Stock, Qty 8

0

29

Dixon 576179401

HOUR METER

$34.99

$

In Stock, Qty 9

0

30

Dixon 539932956

GAS LINE 10"

$8.99

$

Usually ships in 3-10 days

0

31

Dixon 505215101

FUEL LINE 2.5"

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 574521305

HOSE, FUEL, 3/16" X 20"

$8.99

$

Usually ships in 3-10 days

0

33

Dixon 522559101

No Description Available

$30.99

$

Usually ships in 3-10 days

0

34

Dixon 539112439

CHOKE CABLE

$34.99

$

In Stock, only 2 left!

0

35

Dixon 576660701

FUEL LINE ASSY

$27.99

$

Usually ships in 3-10 days

0

36

Dixon 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

37

Dixon 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

38

Dixon 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD

$3.99

$

Usually ships in 3-10 days

0

39

Dixon 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

40

Dixon 539990645

RHSNB 3/8C X 1

$3.99

$

Usually ships in 3-10 days

0

41

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

42

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

43

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

44

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

45

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

46

Dixon 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

47

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

48

Dixon 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 14

0

Dixon 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

Note: NOT SHOWN

$8.99

$

In Stock, only 1 left!

0

Dixon 539110068

BATTERY CABLE, NEGATIVE

Note: NOT SHOWN

$

$

Not available

Dixon 515980501

OBSOLETE - WIRING HARNESS
(Superseded to 580798101)

Note: NOT SHOWN

$145.99

$

In Stock, Qty 6

0

Dixon 505280001

TIE WRAP, 8-3/8", W/CLIP

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0
