Speed ZTR 44 (968999538) - Dixon 44" Speed ZTR Zero-Turn Mower, 20hp Kohler (2008) SEAT Parts Diagram

44" SpeedZTR Zero-Turn Mower, 20hp Kohler

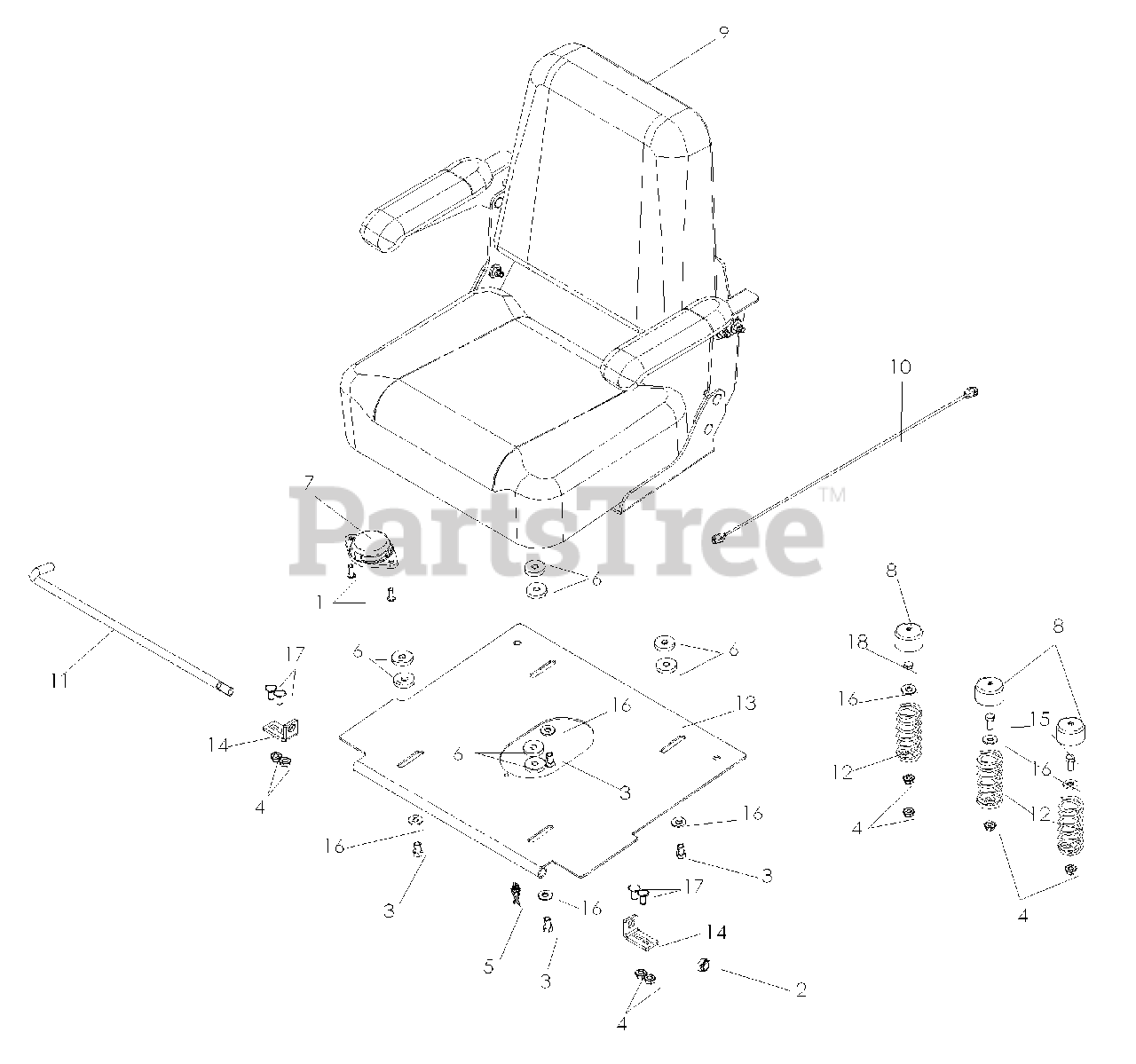

SEAT Parts Diagram

  • Title

1

Dixon 539108388

SCR 1/4-20X3/4 SLTD RDHD GR2ZD

$

$

Not available

2

Dixon 539108010

NUT 1/2-13 HEX JM NYL

$3.99

$

In Stock, only 2 left!

0

3

Dixon 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.99

$

Usually ships in 3-10 days

0

4

Dixon 539115674

5/16-18 FLANGED L-NUT

$

$

Not available

5

Dixon 539115768

LINK RETAINER

$

$

Not available

6

Dixon 539115789

WASHER NYLON

$8.49

$

Usually ships in 3-10 days

0

7

Dixon 539117398

SEAT SWITCH MILSCO

$39.99

$

Usually ships in 3-10 days

0

8

Dixon 539119884

SPRING CAP

$

$

Not available

9

Dixon 539120901

SEAT CORDURA

$

$

Not available

10

Dixon 539103247

SEAT LANYARD

$20.99

$

Usually ships in 3-10 days

0

11

Dixon 539121277

SEAT PIN

$

$

Not available

12

Dixon 539122632

SEAT SPRING

$9.99

$

In Stock, Qty 8

0

13

Dixon 539123533

SEAT PLATE DK-BLUE

$

$

Not available

14

Dixon 539123597

SEAT PIVOT DK-BLUE

$

$

Not available

15

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

16

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

17

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

In Stock, Qty 20+

0

18

Dixon 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0
