Speed ZTR 48 (965882401) - Dixon 48" Speed ZTR Zero-Turn Mower (2008-10) HYDRAULIC PUMP MOTOR Parts Diagram

48" SpeedZTR Zero-Turn Mower

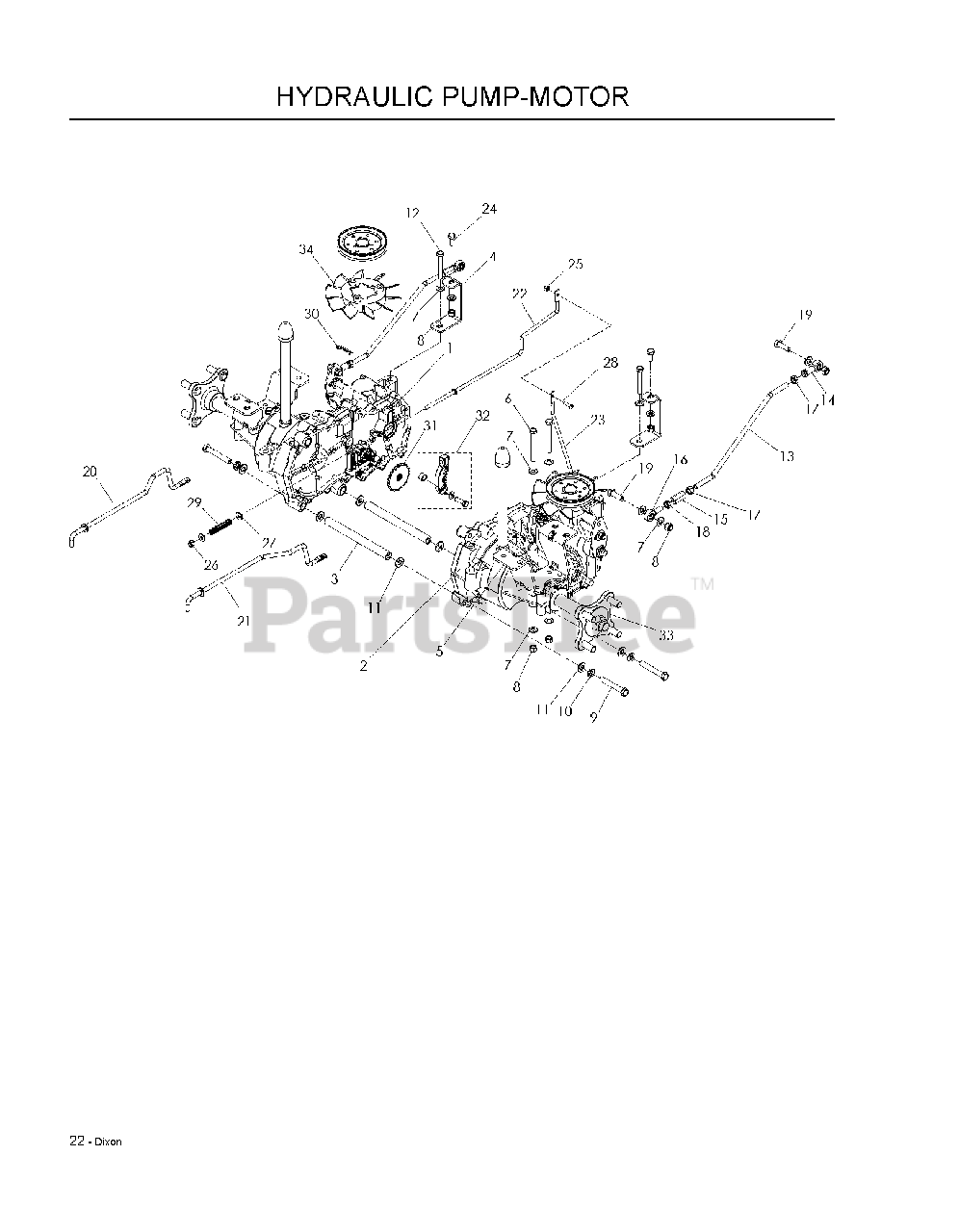

HYDRAULIC PUMP MOTOR Parts Diagram

  • Title

1

Dixon 510375601

HG_EZT, LT

Note: LT

$1091.99

$

In Stock, only 1 left!

0

2

Dixon 510375602

HG_EZT, RT

Note: RT

$1091.99

$

In Stock, only 1 left!

0

3

Dixon 510184101

SPACER TUBE, EZT
(Superseded to 510184104)

$

$

Not available

4

Dixon 522460702

SUPPORT.FRONT.TRANS.BLACK.
(Superseded to 580806502)

Note: FRT

$4.99

$

In Stock, Qty 20+

0

5

Dixon 510185102

EZT MOUNT, REAR, BLACK

Note: RR

$37.99

$

In Stock, Qty 5

0

6

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 16

0

7

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

8

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

9

Dixon 539990637

HCS 3/8C X 2 1/2

$1.49

$

Usually ships in 3-10 days

0

10

Dixon 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

11

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Dixon 539976938

CAPSCREW

$3.99

$

In Stock, Qty 5

0

13

Dixon 510245301

ROD, MOTION CONTROL
(Superseded to 580624201)

$4.99

$

In Stock, only 1 left!

0

14

Dixon 539115729

RH ROD END
(Superseded to 579764601)

Note: RH

$8.99

$

In Stock, Qty 7

0

15

Dixon 539116689

ROD END COUPLER

$

$

Not available

16

Dixon 539116690

ROD.END.LH
(Superseded to 588692502)

Note: LH

$9.99

$

In Stock, Qty 11

0

17

Dixon 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539991073

NUT 5/16F LEFTHAND

Note: LH

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

20

Dixon 522706002

ROD, BYPASS, RT

Note: RT

$7.99

$

Usually ships in 3-10 days

0

21

Dixon 522706001

ROD, BYPASS, LT

Note: LT

$9.99

$

Usually ships in 3-10 days

0

22

Dixon 522533801

LINKAGE BRAKE LT
(Superseded to 522909001)

Note: LT

$

$

Not available

23

Dixon 522533701

LINKAGE BRAKE RT
(Superseded to 522909002)

Note: LT

$

$

Not available

24

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

25

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

26

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 20+

0

28

Dixon 539108535

SCR #10-24 X 3/4

$4.99

$

In Stock, Qty 7

0

29

Dixon 539110342

SPRING

$

$

Not available

30

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

31

Dixon 539120080

HG_DISC COG BRAKE

$34.99

$

In Stock, only 2 left!

0

32

Dixon 539120079

HG_KIT BRAKE ARM (EZT)

$37.99

$

In Stock, Qty 17

0

33

Dixon 539120064

HUB KIT (H-G #70314)
(Superseded to 575507001)

$218.99

$

Usually ships in 3-10 days

0

34

Dixon 539120785

HG_HYDRO FAN

$37.99

$

In Stock, only 2 left!

0

Dixon 539110411

BELT, HYDRO PUMP

Note: NOT SHOWN

$28.99

$

In Stock, Qty 5

0
