Speed ZTR 54 (967035101) - Dixon 54" Speed ZTR Zero-Turn Mower (2012-03) STEERING Parts Diagram

54" SpeedZTR Zero-Turn Mower

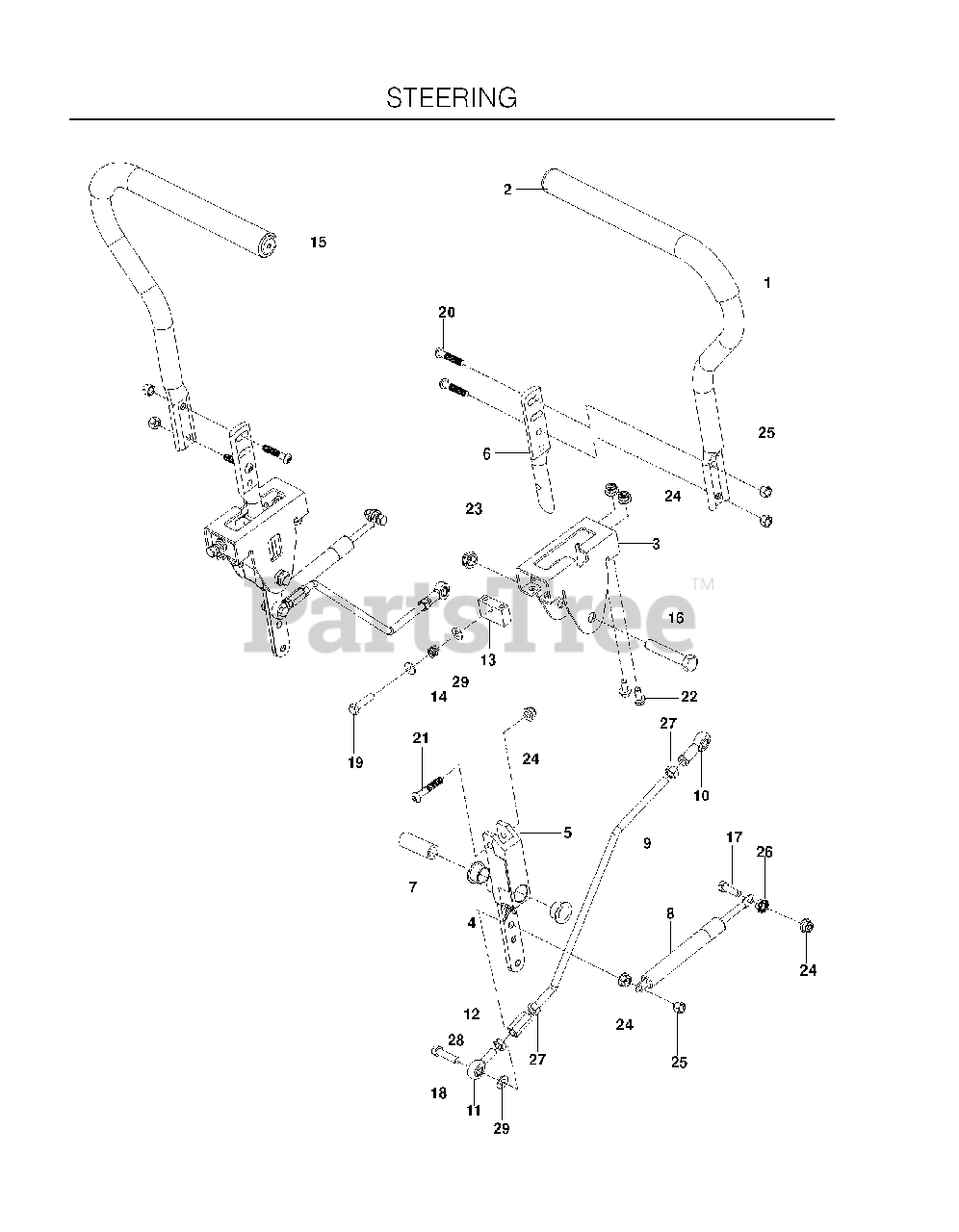

STEERING Parts Diagram

  • Title

1

Dixon 579036901

LEVER ASM

$

$

Not available

2

Dixon 525392901

GRIP, DRIVE LEVER

$

$

Not available

3

Dixon 577251701

BRACKET, CONTROL
(Superseded to 586737202)

$26.99

$

In Stock, only 2 left!

0

4

Dixon 539131518

BEARING, FLANGE

$10.99

$

In Stock, Qty 7

0

5

Dixon 576140301

LEVER CONTROL PIVOT

$24.99

$

In Stock, Qty 20+

0

6

Dixon 577420001

No Description Available

$

$

Not available

7

Dixon 577252401

SPACER, PIVOT CONTROL
(Superseded to 584927201)

$4.99

$

In Stock, Qty 11

0

8

Dixon 539102720

DAMPENER

$66.99

$

In Stock, Qty 20+

0

9

Dixon 522945001

ROD, MOTION CONTROL
(Superseded to 580624201)

$4.99

$

In Stock, only 1 left!

0

10

Dixon 539115729

RH ROD END
(Superseded to 579764601)

$8.99

$

In Stock, Qty 7

0

11

Dixon 539116690

ROD END LH
(Superseded to 588692502)

$9.99

$

In Stock, Qty 11

0

12

Dixon 539116689

ROD END COUPLER

$

$

Not available

13

Dixon 577251801

BLOCK, TRACKING

$

$

Not available

14

Dixon 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

15

Dixon 539122636

END PLUG 15/16` (BLACK)

$6.49

$

In Stock, only 2 left!

0

16

Dixon 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

17

Dixon 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

18

Dixon 539108394

HCS 5/16-18X1-3/4 TPBLT

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.49

$

Usually ships in 3-10 days

0

20

Dixon 578296401

SCREW 5/16-18 X 1 BTN-HD

$3.49

$

Usually ships in 3-10 days

0

21

Dixon 576850402

No Description Available

$4.99

$

In Stock, Qty 7

0

22

Dixon 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 3 left!

0

23

Dixon 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, Qty 5

0

24

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

25

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

26

Dixon 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

29

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0
